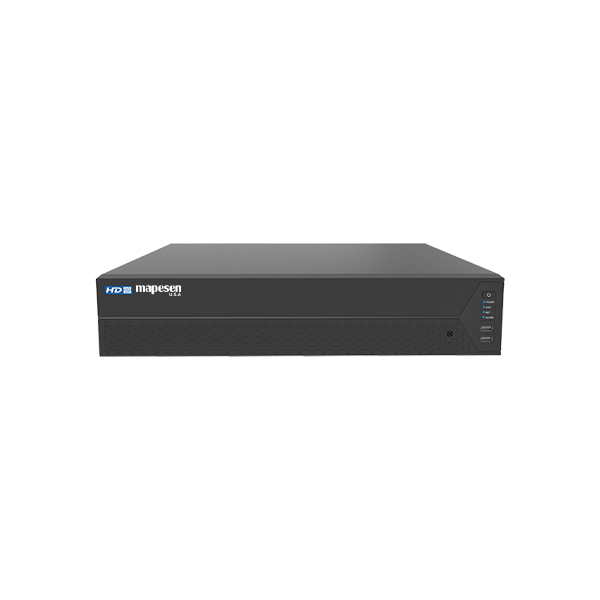

4K H.265&H.264 Self-adaptive NVR 8HDD Series

16CH/32CH/64CH Channels 4K NVR

Unlimited Storage Capability · 4K HD output · 6MP Input · Dual Stream · HDMI · 3 USB Port · ONVIF· 8HDD


    H.265&H.264 NVR Series (Support 8HDD)

    · 16/32/64 Channel Network Digital Video Recorder
    · H.265&H.264 Network Camera Self-adaptive Compatible
    · Max support 4K network camera input, ONVIF SPEC 2.6
    · Support VGA, Dual HDMI port 4K Output
    · Max 16 Channel synchronous playback
    · 2 USB interface
    · 8 SATA interface,1 ESATA interface, input/output Broadwidth 128M
    · Max support 6.0MP network camera input, ONVIF
    · Dual 1000M ethernet port
    · Third-party cloud storage, Support P2P
    · Support mobile message sent, Support GB28181

    Model

    MP-NVR6816HSE

    System

    Operating System

    Embedded LINUX

    Video&Audio Input

    Bidirectional Talk

    1CH,RCA(Line in,2Vp-p,1Kohms)

    Incoming bandwidth

    128Mbps

    IPC Input

    16CH

    Video&Audio Output

    VGA

    1CH,1920×1080,1280×1024,1280×720,1024×768

    HDMI

    Standard 2.0, 3840×21601920×1080,1280×1024,1280×720,1024×768

    Audio Output

    1CH,RCA(Line out,2Vp-p,300ohms)

    Video&Audio Encoding

    Audio Compression

    G.711A

    Audio Bit Rate

    64Kbps

    Video&Audio Decoding

    IP channel Resolution

    Main stream:up to 3264x2448

    Auxiliary stream:D1 max

    Video decoding

    H.265Main Profile@L5.0 High-tie/

    H.264 Up to High Profile@Level5.1

    Audio decoding

    G.711A, G726

    Synchronous Playback

    16CH

    Decoding Ability

    16CH 1080P@30FPS

    Other Function

    Bidirectional Talk

    Two-way voice intercom function

    Motion Detection

    Zones: 396(22*18),Sensitivity: 1~6 (level 6 is the highest)

    Picture Capture

    Support JPEG Capture

    Face Detection

    1CH Face detection or 2CH Perimeter detection,Up to 1080P

    Interface

    Network Interface

    2 RJ45 10M/100M/1000M self-adaptive Ethernet interface

    USB Interface

    3 USB2.0 Interfaces

    Serial Interface

    1 RS-232 interface, 1 RS-485 interface

    Audio Input/Output

    1CH,RCA(Line out,2Vp-p,300ohms)

    Alarm Input

    16CH, Open/Closed Relay

    Alarm Output

    4CH, NO/NC

    Storage

    SATA

    8*SATA HDD Interface, 1 eSATA Interface

    Capacity

    Unlimited

    Network

    Network Protocols

    IPV4, TCP, UDP, RTSP, HTTP, DNS, ddns, dhcp, NTP, SMTP, UPNP

    Format

    Video Compression

    H.265/H.265(HEVC)/H.264/H.264

    General

    Compatibility

    ONVIF

    Dimensions

    520*520*215mm

    Size

    2U,441*448*88mm

    Weight

    7KG(without HDD)

    Installation

    Rack installation, Desktop installation

    Power Supply

    110V~220V±10%, 47Hz63Hz

    Consumption

    20W(without HDD

    Working Conditions

    Temperature: -10℃--55℃ Humidity: 10%∼90%

    Model

    MP-NVR6832HSE

    System

    Operating System

    Embedded LINUX

    Video&Audio Input

    Bidirectional Talk

    1CH,RCA(Line in,2Vp-p,1Kohms)

    Incoming bandwidth

    200Mbps

    IPC Input

    32CH

    Video&Audio Output

    VGA

    1CH,1920×1080,1280×1024,1280×720,1024×768

    HDMI

    Standard 2.0, 3840×21601920×1080,1280×1024,1280×720,1024×768

    Audio Output

    1CH,RCA(Line out,2Vp-p,300ohms)

    Video&Audio Encoding

    Audio Compression

    G.711A

    Audio Bit Rate

    64Kbps

    Video&Audio Decoding

    IP channel Resolution

    Main stream:up to 3264x2448

    Auxiliary stream:D1 max

    Video decoding

    H.265Main Profile@L5.0 High-tie/

    H.264 Up to High Profile@Level5.1

    Audio decoding

    G.711A, G.726

    Synchronous Playback

    32CH

    Decoding Ability

    16CH 1080P@30FPS

    Other Function

    Bidirectional Talk

    Two-way voice intercom function

    Motion Detection

    Zones: 396(22*18),Sensitivity: 1~6 (level 6 is the highest)

    Picture Capture

    Support JPEG Capture

    Face Detection

    1CH Face detection or 2CH Perimeter detection,Up to 1080P

    Interface

    Network Interface

    2 RJ45 10M/100M/1000 self-adaptive Ethernet interface

    USB Interface

    3 USB2.0 Interfaces

    Serial Interface

    1 RS-232 interface, 1 RS-485 interface

    Audio Input/Output

    1CH,RCA(Line out,2Vp-p,300ohms)

    Alarm Input

    16CH, Open/Closed Relay

    Alarm Output

    4CH, NO/NC

    Storage

    SATA

    8*SATA HDD Interface, 1 eSATA Interface

    Capacity

    Unlimited

    Network

    Network Protocols

    IPV4, TCP, UDP, RTSP, HTTP, DNS, ddns, dhcp, NTP, SMTP, UPNP

    Format

    Video Compression

    H.265/H.265(HEVC)/H.264/H.264

    General

    Compatibility

    ONVIF

    Dimensions

    520*520*215mm

    Size

    2U,441*448*88mm

    Weight

    7KG(without HDD)

    Installation

    Rack installation, Desktop installation

    Power Supply

    110V~220V±10%, 47Hz63Hz

    Consumption

    20W(without HDD

    Working Conditions

    Temperature: -10℃--55℃ Humidity: 10%∼90%

    Model

    MP-NVR6864HE

    System

    Operating System

    Embedded LINUX

    Video&Audio Input

    Bidirectional Talk

    1CH,RCA(Line in,2Vp-p,1Kohms)

    Incoming bandwidth

    256Mbps

    IPC Input

    64CH

    Video&Audio Output

    VGA

    1CH,1920×1080,1280×1024,1280×720,1024×768

    HDMI

    Standard 2.0, 3840×21601920×1080,1280×1024,1280×720,1024×768

    Audio Output

    1CH,RCA(Line out,2Vp-p,300ohms)

    Video&Audio Encoding

    Audio Compression

    G.711A

    Audio Bit Rate

    64Kbps

    Video&Audio Decoding

    IP channel Resolution

    Main stream:up to 3264x2448

    Auxiliary stream:D1 max

    Video decoding

    H.265Main Profile@L5.0 High-tie/

    H.264 Up to High Profile@Level5.1

    Audio decoding

    G.711A, G.726

    Synchronous Playback

    32CH

    Decoding Ability

    16CH 1080P@30FPS

    Other Function

    Bidirectional Talk

    Two-way voice intercom function

    Motion Detection

    Zones: 396(22*18),Sensitivity: 1~6 (level 6 is the highest)

    Picture Capture

    Support JPEG Capture

    Face Detection

    N/A

    Interface

    Network Interface

    2 RJ45 10M/100M/1000 self-adaptive Ethernet interface

    USB Interface

    3 USB2.0 Interfaces

    Serial Interface

    1 RS-232 interface, 1 RS-485 interface

    Audio Input/Output

    1CH,RCA(Line out,2Vp-p,300ohms)

    Alarm Input

    16CH, Open/Closed Relay

    Alarm Output

    4CH, NO/NC

    Storage

    SATA

    8*SATA HDD Interface, 1 eSATA Interface

    Capacity

    Unlimited

    Network

    Network Protocols

    IPV4, TCP, UDP, RTSP, HTTP, DNS, ddns, dhcp, NTP, SMTP, UPNP

    Format

    Video Compression

    H.265/H.265(HEVC)/H.264/H.264

    General

    Compatibility

    ONVIF

    Dimensions

    520*520*215mm

    Size

    2U,441*448*88mm

    Weight

    7KG(without HDD)

    Installation

    Rack installation, Desktop installation

    Power Supply

    110V~220V±10%, 47Hz63Hz

    Consumption

    20W(without HDD

    Working Conditions

    Temperature: 0℃--55℃ Humidity: 10%∼90%
