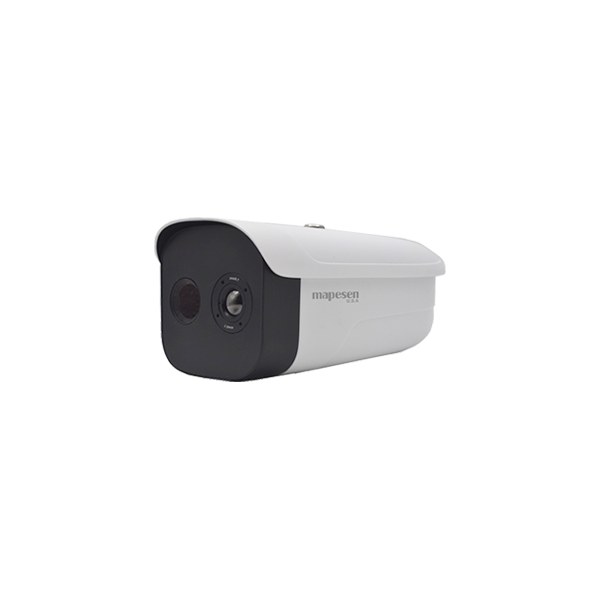

BF502 AI Binocular Fever Detecting Thermal Camera

1080P , Thermal Solution 352x288

Thermal Solution 352x288 · Non-contact Body Temperature Measurement · AI Face Recognition · Fever Detection · Alarm Fire Alert

    2MP AI Binocular Fever Detecting Thermal Camera

     - 352x288 Thermal Solution.

    - Non-contact High-accurate Body Temperature Measurement 35-38, Accuracy ±0.3).

    - Face Recognition, Can Detecting 20-30pcs Human Faces Simultaneously and Snapshot.

    - Alarm Output if Abnormal Temperature Detected.

    - Voice Broadcast.

    - Fire Alert.

    -  Third-party Platform Docking.

    -  Can Record Identification Information and Temperature Information for Future Search.

    Model NO

    MP-BF502AI-TM

    Thermal

    Sensor

    VOx Uncooled Thermal Sensor Technology

    Resolution

     352x288

    Pixel Interval

     12μm

    Detecting Range

     -15550

    Detection Accuracy

     Target Temperature:35-38, accuracy ±0.3;

     Target Temperature:20-33 or 38-50, accuracy ±0.6;

    Other Temperature: Accuracy±2

    Focal Length

     2.0mm/3.2mm/4.3mm optional

    Image Mode

     Blackhot / Whitehot / Ironrow / Rainbow and etc, multi-color modes selectable

    Optical

    Image Sensor

     1/2.8” Progressive Scan CMOS

    Resolution

     1920x1080P@25fps

    Focal Length

     4mm

    Field of View

     Horizontal Angle:84°, Vertical Angle:45°

    Mini. Illumination

     0.005Lux@F1.2 Color mode, 0.001Lux@F1.2(B/W)

    WDR

     DWDR

    Noise Reduction

     2D DNR;3D DNR

    BLC

     Yes

    Dynamic Range

     ≥80dB

    S/N Ratio

     ≥46dB (AGC OFF)

     AI

     Face Snapshot

     Built-in DL AI algorithm, support 20-30pcs faces detection simulatenously, face detection, exposure, score, screening, Snapshot and upload, support FTP, HTTP, etc multi-method to upload human face,shoulder, above the waist, whole body,original pic, etc pictures.

     Face Recognition

     Support,Built-in 50000pcs face datebase

     Function

    Temperature Detection

     Support detection of all monitoring area or specified area

    Abnormal Temperature Alarm

     High temperature limits, Low temperature limits, the temperature difference of

    specified zone

    Network Protocol

     Support RTSP, RTP, TCP, UDP, UPNP, DHCP, PPPoE, ONVIF, GB/T 28181 protocol etc.

    CVBS Output

     BNC port

    Network Interface

     1CH 10/10 BaseT Ethernet, RJ45 port

    Alarm Interface

    1CH input/output

    Audio Interface

    1CH input/output

     General

    Working Temperature

     -20°C ~55°C

    Working Humidity

     0%-90% RH

    Protection Level

     IP67; TVS 6000V Lightning Protection,2K Surge Protection and Voltage Transient Protection

    Power Consumption

     ≤5W

    Dimension

     246x101x81mm

     Weight

     1kg
