8CH POE NVR KIT

HD Home Security 2.0MP/5.0MP POE IP Camera Kit

IP POE · Smart Analysis · HDMI/VGA · ONVIF · Smart IR · 25M IR Distance · DWDR · Low illumination

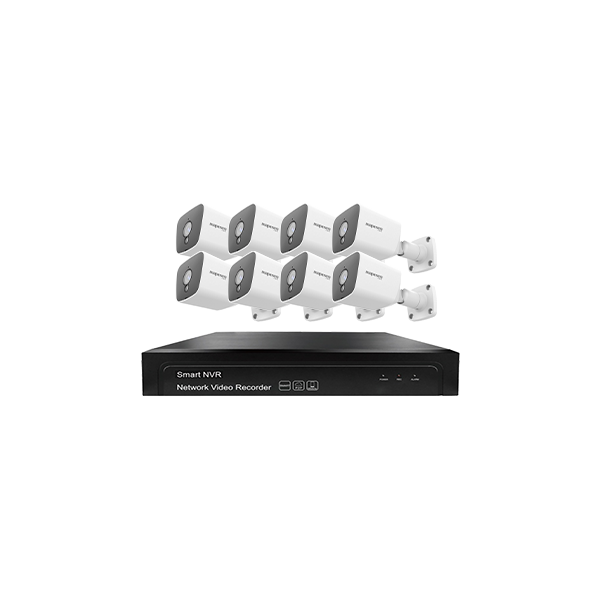

    8CH Home Security POE NVR Kit

    · All Cameras with 1080P/5MP preview
    · Smart Analysis,Target Count, Object Left/Lost, Area Detection, Line Crossing
    · H.264/H.265 compression format
    · POE,Onvif

    · Support HDMI/VGA video output

    · 1PC 4CH POE NVR
    · 8PCS IR Metal Bullet Camera
    · 8PCS 15m Network Cable
    · 1PC 52V 1.5A Power Adaptor

    Model

    NVR208PL2JE200

    4CH POE NVR

    Operating System

    Embedded LINUX

    Preview

    1/4/9/16 screen

    Video & Audio

    Encoding Format

    H.265[$add] / H.265 / H.264

    Video Input

    16CH 1080P IP Network Cameras

    Audio Compression

    G.711A

    Audio Input

    IPC composite stream network audio input

    Smart Analysis



    With Smart IPC Support

    Target Count, Object Left/Lost, Area Detection, Line Crossing

    Record & Playback

    Record Mode

    Manual>Alarm>Motion detection>Timing

    Video Resolution

    1080P

    Local Playback

    Support adaptive stream preview and playback:

    9 screens D1, 4 screens 1280*720, single screen 1920*1080

    Search Mode

    Search by time, calendar, event, channel

    Storage & backup

    Video Storage

    HDD, Network

    Backup Mode

    Network, USB hard disk, USB burner, SATA burner

    Network

    Network Protocol

    UPnP (Plug & Play), SNMP (Simple Network Management), NTP (Network Timekeeping), SADP (Device Network Search), SMTP (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up Internet access), DHCP (automatically obtain IP address)

    POE standard

    IEEE802.3af

    APP

    Supports iPhone, iPad, Android Smart phone

    PC

    support

    External Interface



    HDMI Output

    1CH, HDMI can output audio at the same time



    VGA Output

    1CH



    Audio I/O

    0/0



    Alarm I/O

    0/0



    Network Interface

    RJ45 10M/100M self-adaption



    POE interface

    4xRJ45 10M/100M adaptive Ethernet port



    PTZ Control

    Support kinds of PTZ protocols



    USB

    2* USB ports



    HDD

    1*SATA ports (Max 8TB/per)



    General

    Power Supply

    52V 2.3A

    Power Consumption

    POE power consumption≤80W;

    NVR motherboard function≤8W (without HDD)

    Working Environment

    -10- [$add]55

    Working Humidity

    10%—90%, Atm:86kpa—106kpa

    Camera

    Metal Bullet*8PCS

    Image Sensor

    1/2.9’’ CMOS Image Sensor

    Resolution

    1080P and below resolution

    Max. Image Resolution

    1920(H) × 1080(V)

    Frame Rate

    First bit stream:1920*1080@20FPS

    Second sub bit stream:704*576,640*480

    Video Compression

    Support H.265 main profile&H.264 baseline

    Video Bit Rate

    16Kbps-6Mbps continuously adjustable, support CBR / VBR

    Image Settings

    Support for brightness, contrast, saturation, white balance, AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure); support privacy area; normal / 90 °/ 270 °image rotation; Automatic, manual color to black and other switches.

    Audio Compression

    G.711

    Audio Bit Rate

    64Kbps

    IR Distance

    30-35m

    Lens

    3.6mm/2.0MP

    Min. Illumination

    Color: 0.01Lux @F1.2, B/W: 0Lux with IR on

    WDR

    Digital WDR

    Electronic Shutter

    AUTO 1/50(60)1/50000s

    White Balance

    Auto

    AGC

    Auto

    BLC

    Auto

    DNR

    3D DNR

    Smart Analysis

    Target Count, Object Left /Lost, Area Detection, Line Crossing

    Network Interface

    1xRJ45 10M/100M Ethernet Port

    Networking Protocol

    TCP/IP, DHCP, HTTP, HTTPS NTP, DNS, RTP RTSP

    ONVIF

    Support

    POE

    Support

    Type

    Outdoor Metal Bullet Camera

    Weather Proof

    IP66

    Power Supply

    DC 12V

    Lightning protection

    Support

    Power Consumption

    Max 4W

    Working Humidity

    10%-95% RH(Non-condensing)

    Working Temperature

    -10°C to [$add]60°C

    Package

    8CH POE NVR *1PC

    2.0MP IR Metal Bullet POE IP Camera * 8PCS

    52V 2.3A Power Adaptor * 1PC

    15M Network Cable * 8PCS

    Model

    NVR208PL2JE500

    4CH POE NVR

    Operating System

    Embedded LINUX

    Preview

    1/4/9/16 screen

    Video & Audio

    Encoding Format

    H.265[$add] / H.265 / H.264

    Video Input

    16CH 5MP IP Network Cameras

    Audio Compression

    G.711A

    Audio Input

    IPC composite stream network audio input

    Smart Analysis



    With Smart IPC Support

    Target Count, Object Left/Lost, Area Detection, Line Crossing

    Record & Playback

    Record Mode

    Manual>Alarm>Motion detection>Timing

    Video Resolution

    5MP and below resolution

    Local Playback

    Support adaptive stream preview and playback:

    9 screens D1, 4 screens 1280*720, single screen 2560*1920

    Search Mode

    Search by time, calendar, event, channel

    Storage & backup

    Video Storage

    HDD, Network

    Backup Mode

    Network, USB hard disk, USB burner, SATA burner

    Network

    Network Protocol

    UPnP (Plug & Play), SNMP (Simple Network Management), NTP (Network Timekeeping), SADP (Device Network Search), SMTP (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up Internet access), DHCP (automatically obtain IP address)

    POE standard

    IEEE802.3af

    APP

    Supports iPhone, iPad, Android Smart phone

    PC

    support

    External Interface



    HDMI Output

    1CH, HDMI can output audio at the same time



    VGA Output

    1CH



    Audio I/O

    0/0



    Alarm I/O

    0/0



    Network Interface

    RJ45 10M/100M self-adaption



    POE interface

    4xRJ45 10M/100M adaptive Ethernet port



    PTZ Control

    Support kinds of PTZ protocols



    USB

    2* USB ports



    HDD

    1*SATA ports (Max 8TB/per)



    General

    Power Supply

    52V 2.3A

    Power Consumption

    POE power consumption≤40W;

    NVR motherboard function≤8W (without HDD)

    Working Environment

    -10- [$add]55

    Working Humidity

    10%—90%, Atm:86kpa—106kpa

    Camera

    Metal Bullet*8PCS

    Image Sensor

    1/2.7’’ CMOS Image Sensor

    Resolution

    5MP

    Max. Image Resolution

    2560(H) × 1920(V)

    Frame Rate

    First bit stream:2560*1920@15FPS/2592*1520@20FPS

    Second sub bit stream:704*576@20FPS,640*480@20FPS

    Video Compression

    Support H.265 main profile&H.264 baseline

    Video Bit Rate

    32Kbps-8Mbps continuously adjustable, support CBR / VBR

    Image Settings

    Support for brightness, contrast, saturation, white balance, AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure); support privacy area; normal / 90°/ 270°image rotation; Automatic, manual color to black and other switches.

    Audio Compression

    G.711

    Audio Bit Rate

    64Kbps

    IR Distance

    30-35m

    Lens

    3.6mm/6.0MP

    Min. Illumination

    Color: 0.01Lux @F1.2, B/W: 0Lux with IR on

    WDR

    Digital WDR

    Electronic Shutter

    AUTO 1/50(60)1/50000s

    White Balance

    Auto

    AGC

    Auto

    BLC

    Auto

    DNR

    3D DNR

    Smart Analysis

    Target Count, Object Left /Lost, Area Detection, Line Crossing

    Network Interface

    1xRJ45 10M/100M Ethernet Port

    Networking Protocol

    TCP/IP, DHCP, HTTP, HTTPS NTP, DNS, RTP RTSP

    ONVIF

    Support

    POE

    Support

    Type

    Outdoor Metal Bullet Camera

    Weather Proof

    IP66

    Power Supply

    DC 12V

    Lightning protection

    Support

    Power Consumption

    Max 4W

    Working Humidity

    10%-95% RH(Non-condensing)

    Working Temperature

    -10°C to [$add]60°C

    Package

    8CH POE NVR *1PC

    5.0MP IR Metal Bullet POE IP Camera * 8PCS

    52V 2.3A Power Adaptor * 1PC

    15M Network Cable * 8PCS
