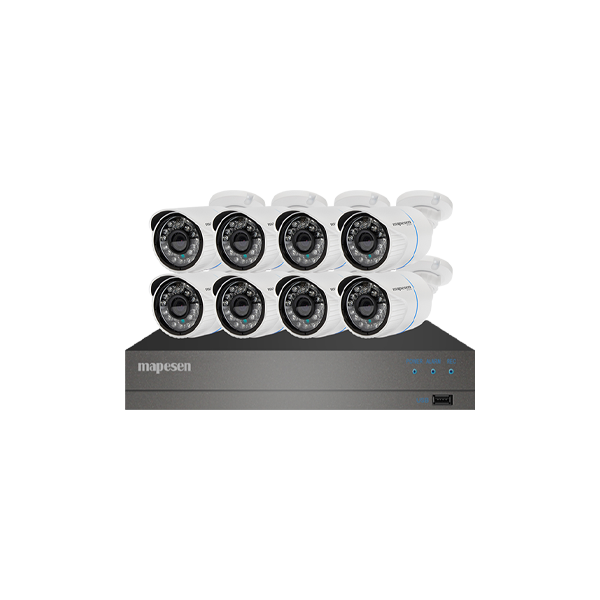

L1M 8CH Home Security Coaxial DIY Kit

8CH 2.0MP/5.0MP Camera Kit

8TB Storage Capability ·AHD · Audio I/O · HDMI/VGA · ONVIF · Smart IR · 20-25M IR Distance · DWDR · UTC · Low illumination


    8CH Home Security Coaxial DIY Camera Kit

    · All Cameras with 1080P/5MP preview
    · All channel synchronous real-time playback
    · H.264/H.265 compression format
    · Support audio input and output

    · Support HDMI/VGA video output

    · 1PC 8CH 5-in-1 XVR(with mouse,power adaptor)
    · 8PCS IR Metal Bullet Camera
    · 8PCS 15m BNC Cable
    · 2PCS 1 to 4 Power Splitter Cable
    · 2PCS 2A Power Adaptor

    Model

    TLM5108L1ML1MA206

    5 IN 1 XVR

    Operating System

    Embedded LINUX

    Video

    Encoding Format

    H.264

    Monitor Quality

    VGA, HDMI

    Preview Ability

    8*1080N

    Encode Ability

    8*1080N (5 in 1)

    Decode Ability

    8*1080N (5 in 1)

    Multi-mode Input

    Analog: 8*1080N; 4*1080P;8*720P; 8*960H

    Hybrid: 2*1080P(analog)[$add] 2*1080P(network);

    4*1080N(analog)[$add]4*960P(analog);

    Network: 16*1080P;9*1080P; 16*960P;4*5M

    Motion Detection

    Each screen can be set to 192 (16 * 12) detection areas;

    Multi-level sensitivity can be set (Limited local channel)

    Audio

    Audio Compression

    G.711A

    Intercom

    Support

    Record & Playback

    Record Mode

    Manual>Alarm>Motion detection>Timing

    Local Playback

    8CH (analog input mode)

    Search Mode

    Search by time, calendar, event, channel

    Storage & backup

    Video Storage

    HDD, Network

    Backup Mode

    Network, USB hard disk, USB burner, SATA burner

    External Interface

    Video Input

    8CH BNC

    Video Output

    1CH VGA, 1ch HDMI

    Audio I/O

    4/1

    Network Interface

    RJ45 10M/100M self-adaption

    PTZ Control

    Support kinds of PTZ protocols

    USB

    2* USB ports

    HDD

    1*SATA ports (Max 8TB/per)

    General

    Power Supply

    12V/2A

    Power Consumption

    <15W (without HDD)

    Working Environment

    Temperature:055Humidity:10%—90%Atm:86kpa—106kpa

    Camera

    Metal Bullet*8PCS

    Image Sensor

    1/2.7’’ CMOS Image Sensor

    Resolution

    1080P@25/30fps

    Effective Pixels

    1920(H) × 1080(V)

    Resolution

    AHD

    Video Standard

    PAL/NTSC

    Synchronization

    Inter-Sync

    IR Distance

    20-25m

    Lens

    3.6mm/2.0MP

    Day & Night mode

    External control

    Min. Illumination

    0.01Lux/F1.2

    UTC

    Support

    OSD

    Support

    WDR

    Digital WDR

    S/N Ratio

    ≥58dB

    Electronic Shutter

    AUTO 1/50(60)1/50000s

    White Balance

    Auto

    AGC

    Auto

    Video Output

    AHD

    Dynamic Range

    60db

    DNR

    2D DNR

    Type

    Outdoor Metal Bullet Camera

    Video Port

    BNC

    Power Supply

    12 V DC±10%

    Lightning protection

    Support

    Power Consumption

    Max 4W

    Working Humidity

    Relative humidity less than 90%

    Operating Temp

    -20°C to [$add]50°C (- 14°F to 122°F )

    Storage Temp.

    -40°C to [$add]60°C ( -40°F to 140°F )

    Package

    8CH 5 IN 1 XVR ( Mouse ,12V 2A Power Adaptor ) *1PC

    2.0MP IR Metal Bullet Camera * 8PCS

    15M BNC & Power Cable * 8PCS

    1 Split to 4 Power Line * 2PCS

    12V 2A Power Adaptor for Camera * 2PCS

    Model

    LME8108L1ML1MA506

    5 IN 1 XVR

    Operating System

    Embedded LINUX

    Video

    Encoding Format

    H.265

    Monitor Quality

    VGA, HDMI

    Preview Ability

    8*5M-N

    Encode Ability

    8*5M-N (5 in 1)

    Decode Ability

    8*5M-N (5 in 1)

    Multi-mode Input

    Analog: 8*5M-N; 8*4M-N; 4*1080P;

    Hybrid: 8*1080N(analog)[$add]8*1080P(network);

    Network: 16*1080P;8*5M

    Motion Detection

    Each screen can be set to 192 (16 * 12) detection areas;

    Multi-level sensitivity can be set (Limited local channel)

    Audio

    Audio Compression

    G.711A

    Intercom

    Support

    Record & Playback

    Record Mode

    Manual>Alarm>Motion detection>Timing

    Local Playback

    8CH (analog input mode)

    Search Mode

    Search by time, calendar, event, channel

    Storage & backup

    Video Storage

    HDD, Network

    Backup Mode

    Network, USB hard disk, USB burner, SATA burner

    External Interface

    Video Input

    8CH BNC

    Video Output

    1CH VGA, 1ch HDMI

    Audio I/O

    4/1

    Network Interface

    RJ45 10M/100M self-adaption

    PTZ Control

    Support kinds of PTZ protocols

    USB

    2* USB ports

    HDD

    1*SATA ports (Max 8TB/per)

    General

    Power Supply

    12V/2A

    Power Consumption

    <15W (without HDD)

    Working Environment

    Temperature:055Humidity:10%—90%Atm:86kpa—106kpa

    Camera

    Metal Bullet*8PCS

    Image Sensor

    1/2.7’’ CMOS Image Sensor

    Resolution

    5MP

    Effective Pixels

    2560(H) × 1920(V)

    Resolution

    AHD

    Video Standard

    PAL/NTSC

    Synchronization

    Inter-Sync

    IR Distance

    30-35m

    Lens

    3.6mm/5.0MP

    Day & Night mode

    External control

    Min. Illumination

    0.01Lux/F1.2

    UTC

    Support

    OSD

    Support

    WDR

    Digital WDR

    S/N Ratio

    ≥55dB

    Electronic Shutter

    AUTO 1/50(60)1/50000s

    White Balance

    Auto

    AGC

    Auto

    Video Output

    AHD

    Dynamic Range

    68db

    DNR

    3D DNR

    Type

    Outdoor Metal Bullet Camera

    Video Port

    BNC

    Power Supply

    12 V DC±10%

    Lightning protection

    Support

    Power Consumption

    Max 5W

    Working Humidity

    Relative humidity less than 90%

    Operating Temp

    -20°C to [$add]50°C (- 14°F to 122°F )

    Storage Temp.

    -40°C to [$add]60°C ( -40°F to 140°F )

    Package

    8CH 5 IN 1 XVR ( Mouse ,12V 2A Power Adaptor ) *1PC

    5.0MP IR Metal Bullet Camera * 8PCS

    15M BNC & Power Cable * 8PCS

    1 Split to 4 Power Line * 2PCS

    12V 2A Power Adaptor for Camera * 2PCS
