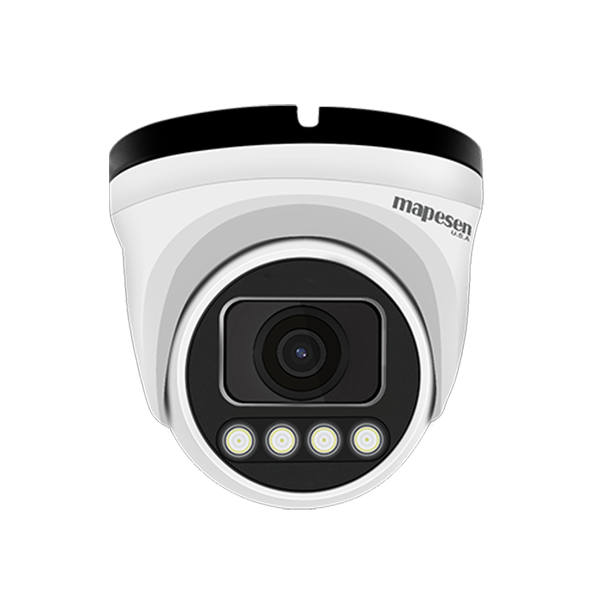

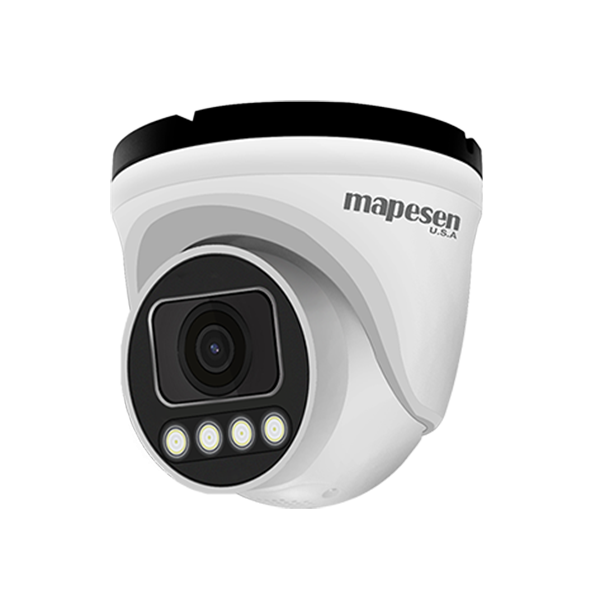

| Model Number | 50DAI50FA2-PTBR-FC |
| System | |
| Image Sensor | 1/2.8" CMOS High Performance Sensor |
| Min. Illumination | Color: 0.001Lux @F1.0, B/W: [email protected] |
| Lens | |
| Lens Type | 3.6mm fixed [email protected] |
| Lens Resolution | 5MP |
| Illuminator | |
| Light Distance | IR Light 30m |
| IR LEDs | Infrared mode (Full color optional, need to request when placing order) |
| Day & Night Mode | Default Infrared Mode |
| Video | |
| Max. Image Resolution | 5MP(2592x1944)@25fps |
| Video Compression | H.265[$add]/H.265/H.264 |
| Frame Rate | Main Stream: 25fps: 2592x1944,2560x1440Sub-Stream: 25fps:704x576 |
| Video Bit Rate | 512Kbps~32Mbps |
| Character&Watermark Overlay | Support |
| AIISP | Support AIISP Image Enhancement |
| Gain Control | Support |
| BLC | Support |
| HLC | Support |
| Defog | Support |
| WDR | Digital WDR, 120 dB |
| Noise Reduction | 3D NR/2D NR |
| Anti-flicker | Support |
| Lens Correction | Support |
| Mirror | Support |
| Electronic Shutter | 1/12s-1/100000s |
| Audio | |
| Audio Input | Support, built-in microphones |
| Audio Output | Supports external amplifier |
| Audio Compression | G.711U / G.711A / G.726 |
| Network | |
| Network Connection Mode | Wired |
| Networking Protocol | CGI,HTTP,HTTPS,GB28181,SIP,RTMP,TCP/IP,UDP,RTP,FTP,RTCP,RTSP,NTP,DHCP,DNS,DDNS,SNMP,SSL/TLS,Websocker etc. |
| ONVIF | Support |
| Web Access | With plugin preview: IE10, IE11Plugin-free preview: Edge, Chrome, Firefox, etc. |
| Simultaneous Preview Number of Channels | 8 |
| Face Capture and Recognition | |
| Face Catpure Mode | Supports multiple face capture modes: Instant, Interval, and Post-departure. The number of captures is configurable. |
| Face Capture Recognition Priority Mode | Face Capture Recognition Priority Mode with real-time name overlay from the face database on the main stream OSD. |
| Face Management | Support white list, black list, VIP list management |
| Face Capture Scenes Configuration | Backlight environment, normal environment |
| Face-Recognition Records/Databases | Support up to 32 face detection per frame,100000 face records,and 50000 face databases |
| Face Recognition Algorithm | Built-in intelligent deep learning face algorithm, extracts target features by itself, and forms deep face images for learning |
| SDK | Provided SDK development kit, support secondary development, support CGI,HTTP,WEBSOCK protocol integration |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Support, Max 512GB SD card |
| Alarm | YES |
| Audio | No |
| RS-485 | YES |
| Reset | No |
| General | |
| POE | IEEE802.3af |
| Power Supply | DC12V±10% /POE |
| Power Consumption | <10W |
| Surge Protection | 6KV |
| Housing | Metal Dome |
| Weather Proof | IP65 |
| Working Temperature | -20 °C to 60 °C |
| Working Humidity | 10%-90% (Non-condensing) |
