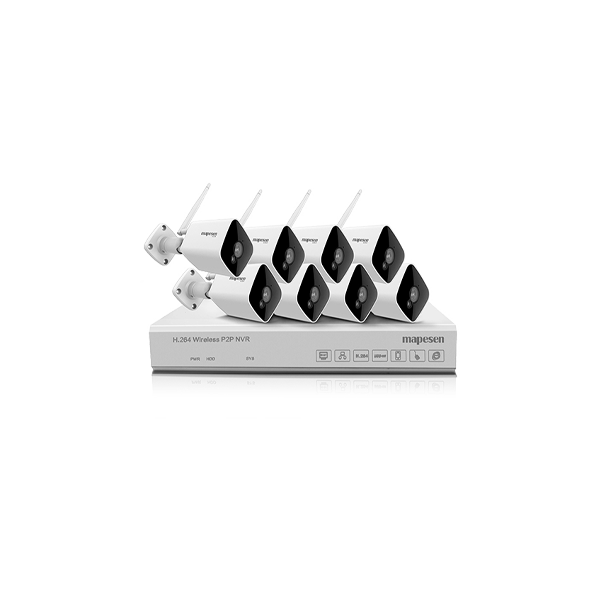

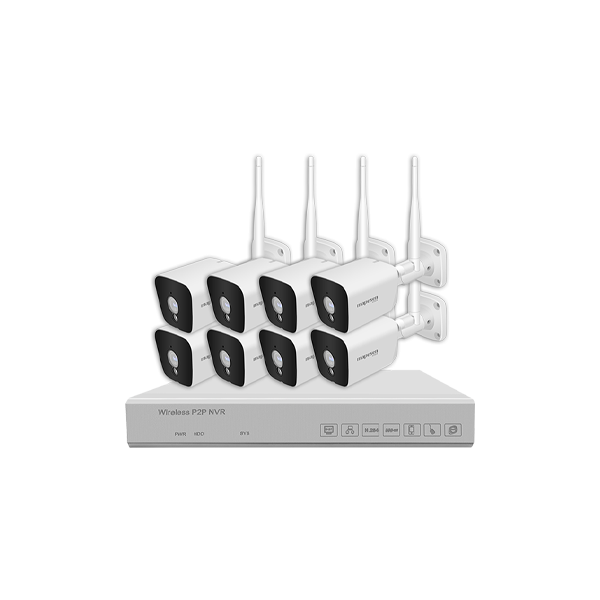

8CH Wifi NVR KIT
· 8PCS Metal Bullet Camera
· 1PC Wifi NVR 8CH
· 8PCS DC 12V 1A Adaptor
· Intallation accessories
Model |
AH6108L2JJ200-W |
||
System |
|
||
Operating System |
Embedded LINUX operating system |
|
|
Preview |
1/4/9 screen |
|
|
Video & Audio |
|
||
Encoding Format |
H.265[$add]/H.265/H.264 |
|
|
Video Input |
8CH 1080P wireless Network Cameras |
|
|
Audio Compression |
G.711A |
|
|
Audio Input |
NO |
|
|
Record & Playback |
|
||
Record Mode |
Manual>Alarm>Motion detection>Timing |
|
|
Video Resolution |
1080P |
|
|
Local Playback |
4CH synchronous playback |
|
|
Search Mode |
Search by time, calendar, event, channel |
|
|
Motion Detection |
Support, motion detection alarm push to APP |
|
|
Storage & backup |
|
||
Video Storage |
HDD, Network |
|
|
Backup Mode |
Network, USB hard disk |
|
|
Network |
|
||
Network Protocol |
UPnP, DHCP, SMTP, PPPOE |
|
|
APP |
Supports iPhone, iPad, Android Smart phone |
|
|
PC |
support |
|
|
External Interface |
|
||
HDMI Output |
1CH, HDMI (MAX1080P) |
|
|
VGA Output |
1CH (MAX1080P) |
|
|
Audio I/O |
0/0 |
|
|
Alarm I/O |
0/0 |
|
|
Network Interface |
1CH RJ45 10M/100M self-adaption |
|
|
WIFI antenna |
2* antenna |
|
|
USB |
1* USB ports |
|
|
HDD |
1*SATA ports (Max 6TB/per) |
|
|
General |
|
||
Power Supply |
DC12V 2A |
|
|
Power Consumption |
NVR motherboard functions≤5W(Without HDD) |
|
|
Working Temperature |
-10℃- - [$add]55℃ |
|
|
Working Humidity |
Humidity:10%-90%, Atm:86kpa-106kpa |
|
|
Camera |
Metal Bullet*8 PCS |
||
Image Sensor |
1/3” color CMOS |
||
Min. Illumination |
Color: 0.1Lux @F1.2, B/W: 0.01Lux with IR on |
||
Lens |
3.6mm |
||
Shutter Time |
Auto |
||
IR Distance |
25m |
||
IR Board |
4 pcs IR LEDS |
||
White Balance |
Auto/indoor/outdoor |
||
AGC |
Auto |
||
WDR |
Digital WDR |
||
DNR |
3D DNR |
||
BLC |
Auto |
||
Privacy shelter |
support |
||
Video & Audio |
|||
Max. Image Resolution |
1080P (1920*1080) |
||
Frame Rate |
First bit stream:1920*1080@15FPS Second sub bit stream:640*480/352*288@15FPS |
||
Video Compression |
Support H.265[$add]/H265/H264 Baseline |
||
Video Bit Rate |
128-4096kbps adjustable, Default 2048kbps |
||
Image Settings |
Image set, Image rolloyers, Image style, OSD name |
||
Audio Compression |
G.711 |
||
Audio Bit Rate |
8Kbps |
||
Network |
|||
Network Interface |
1xRJ45 10M/100M Ethernet Port |
||
Networking Protocol |
TCP/IP, DHCP, HTTP, DNS, DDNS, PPPOE, NTP |
||
WIFI |
802.11bgn |
||
ONVIF |
No |
||
General |
|||
Reset |
Reset on OSD menu |
||
Power Supply |
DC 12V1A |
||
Power Consumption |
Max 4.5W |
||
Weather Proof |
IP66 |
||
Language Support |
ENG |
||
Working Temperature |
-20 °C to 60 °C |
||
Working Humidity |
10%-95% RH (Non-condensing) |
||
Package |
|||
8CH WiFi NVR *1PC (with Mouse,12V 2A Power Adaptor) |
|||
2.0MP IR Metal Bullet WiFi Camera * 8PCS |
|||
12V 1A Power Adaptor * 8PCS |
