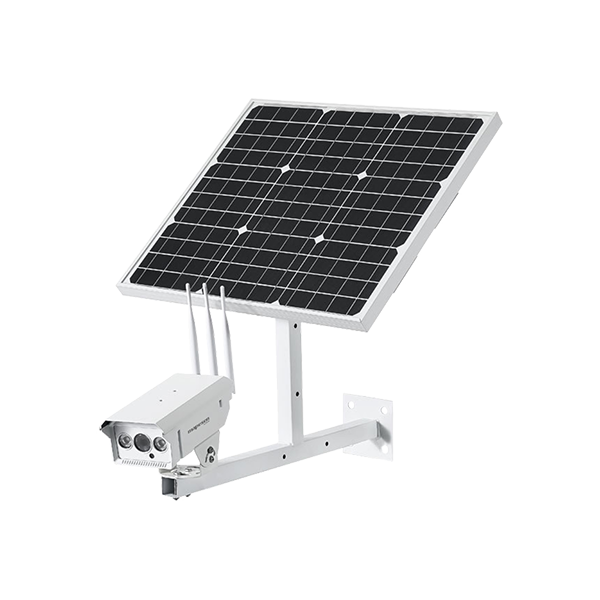

4G Bullet Camera with Solar Panel Set

HD 1080P 4G Solar System

2MP · H.264 · 4G&Wifi · Smart IR · 35-60M IR Distance · DWDR · 3D DNR · Motion Detection · Plug&Play onvif Compatibity · IP67

    Products

    · 1080P 4G Camera with Solar Panel Set

    · Image Resolution: 2.0MP;
    · H.264 encoding;
    · Support manual setting time zone of phone and synchronize to device;
    · Support motion detection alarm;
    · Fix lens;2pcs IR array leds,Super night vision;
    · Storage interface:1 TF(Micro SD)storage interface,Max 64GB;
    · Support dual-stream simultaneously monitoring;
    · Support manual setting time zone of phone and synchronize to device;
    · Support CMS,P2P,Hotspot AP
    · IP67
    · 60W monocrystalline silicon high efficiency solar panel + 12V 30AH lithium battery

    Model

    MP-D2E20M-TWS

    Camera



    Resolution

    2.0MP/1080P

    Synchronization

    Internal

    Min. Illumination

    0.01LUX/F1.2

    Electronic Shutter

    Auto

    White Balance

    Auto

    AGC

    Auto

    WDR

    Digital WDR

    DNR

    3D DNR

    Motion Detection

    Support

    Snapshot

    Support

    Email Alarm

    Support

    IR Leds

    2PCS IR Array leds

    IR Distance

    35-60m

    Other

    Support IE, Google, Firefox browser, Built-in webserver to facilitate the user to use the standard IE browser to achieve the front end of the real-time browsing and setting management

    Ethernet

    1pc RJ45 interface,10/100M self-adaptive

    Stream

    Dual-stream

    Lens



    Focal Length

    4/6/8mm

    Lens Megapixel

    4G & Wifi



    SIM

    Micro SIM Card

    Antenna

    1 x WIFI antenna and 2 x 4G antennas

    WIFI

    WiFi 802.11b/g/n

    AP

    Support

    P2P

    Support Max 6users, browsing at the same time (each stream: 3 users )

    Mobile Surveillance

    iOS, Android

    PC

    Support

    4G

    FDD-LTE, TDD-LTE, WCDMA/HSPA[$add], TD-SCDMA, GSM/GPRS/EDGE

    Solar Panel



    Solar Panel

    60W Mono Solar Panel

    Solar Battery

    30Ah 12V lithium battery

    Standby Time

    Standby recording 3-4 days even cloudy or rainy days

    Battery Voltage

    10.8V/11.1V/12V

    Power Supply

    Solar Power/Battery Power 12V DC±10%

    General



    Working Temperature

    -30 °C to [$add]60 °C / -10°C to 55°C

    Power Supply

    DC12V±10%/POE 48V (not POE, but is Optional)

    ightning protection

    GB/T17626.5, IEC61000-4-5

    Power Consumption

    Max 5W

    Housing

    Outdoor Metal Bullet

    Weather Proof

    IP67
