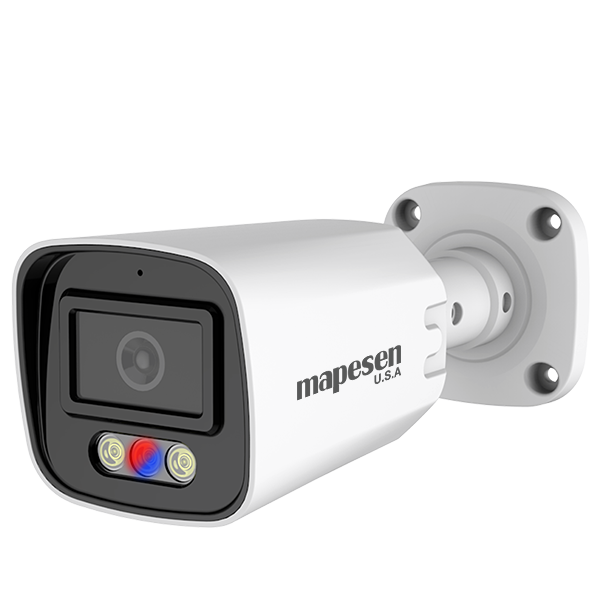

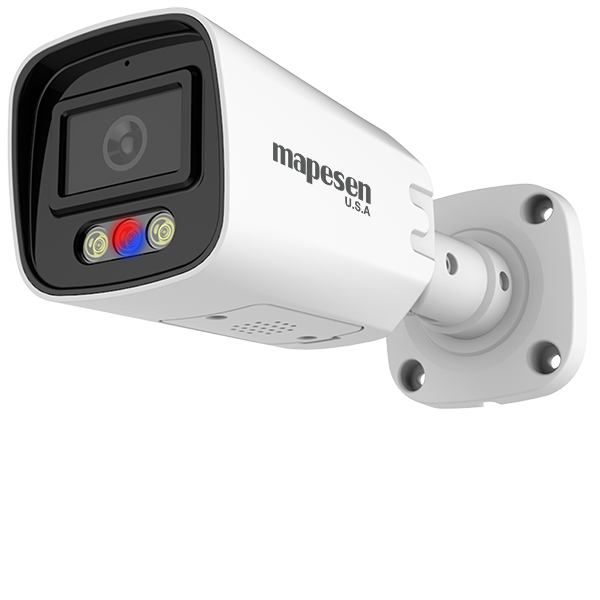

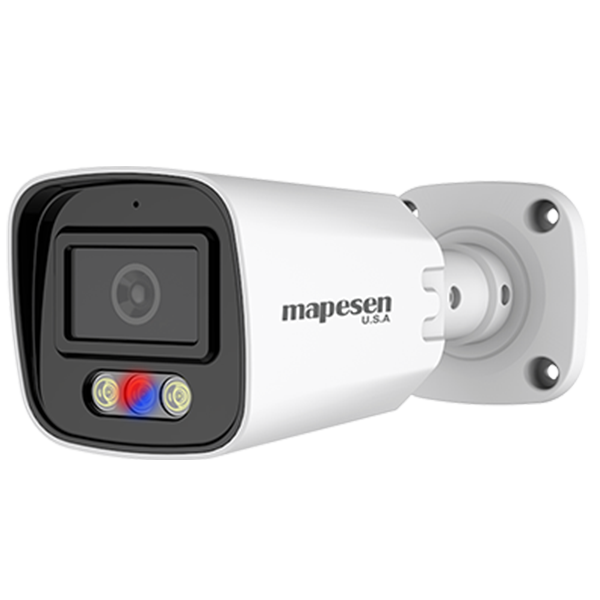

L2K Lite Series

4MP/5MP/8MP POE Network Metal Bullet Camera with Smart AI Alert and Active Deterrence

Flashing Red/Blue Warning Light · Human Detection · Two-Way Audio · ONVIF · DWDR · 3D DNR · IP67 Waterproof · Low Power · Low Bitrate · Low Latency
    Products
    · S265/H.265/H.264 Encoding,Saving Half Storage Capacity with Our NVR.
    · F1.6/3.6mm Fixed Lens(2.8mm/6mm/8mm optional).
    · Hybrid Light(Enable Red and Blue Flashing)/ Infrared Mode/ Full Color Mode,IR Distance 35～40m,Full Color Distance  25～30m.
    · With Face Lighting Function, Backlight See Clearly License Plate Function(Can not be Used Simultenously).
    · AI Humanoid Detection/Tracking & Motion Detection Alarm,Support Alarm Detection Area Setting,Alarm Linkage Voice Broadcast with Customized Contents.
    · With Two-way Audio.
    · DC12V / POE(IEEE.802.3af),HMTL5 Plug-in Free.
    · AGC,DWDR,3D DNR, BLC,4KV Lighting Protection,Metal Bullet,IP66 Waterproof.
    · With SOUND and LIGHT ALARM.
    Model Number L2KQ500SFA2-P
    Camera
    Image Sensor 1/2.7" 5MP low illumination CMOS sensor
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    Shutter Time Auto(1/5 - 1/100000)
    Lens
    Lens Type Fixed Lens 3.6mm @F1.6
    Lens Resolution 5MP
    Illuminator
    Light Distance Warm Light 30m,IR Light 40m
    IR LEDs 2pcs Hybrid Light Core[$add]1pcs Strobe Warning Light LEDs
    Day & Night Mode Hybrid Light(Enable Red and Blue Flashing)/ Infrared Mode/ Full Color Mode
    Video
    Max. Image Resolution 5MP(2880*1620)@25fps
    Video Compression S.265/H.265/H.264
    Frame Rate Main stream:PAL: 5MP (2880x1620@25fps),4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC: 5MP(2880x1620@30fps),4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fpsSub-stream:PAL:D1(720x576)@25fps,VGA(640x480)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps
    Video Bit Rate 1024Kbps-8000Kbps support self-adjustable as needed
    Image Settings Brightness,contrast,saturation,sharpness,chroma
    White Balance Auto / Manual
    Gain Control Support
    BLC Support
    HLC Support
    WDR Digital WDR
    Noise Reduction 3D NR(Off/Low/Middle/High/Higher)
    Defog Off/Low/Middle/High
    Mirror Off/horizontal mirror/vertical mirror/180° flip
    Character Overlay (OSD) Title, time and date overlay, multi-line, and color of characters optional
    Audio
    Audio Input Support, built-in microphones
    Audio Output Support, built-in speaker
    Voice Broadcast Alarm Built-in 8 different broadcast options
    Audio Compression G.711U/64Kbps
    Network
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Networking Protocol TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP
    Connection Protocol Onvif,GB28181
    APP(P2P) Through the NVR
    PC Support
    Web Access Support HTML5 remote login operation(Free plug-in)
    Preview Simultaneously Video Number 4
    Device Abnormal Inspection Support network broken alarm, IP conflict alarm, illegal visiting alarm
    Security Mode Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification
    Event
    Alarm Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm
    Linkage Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming
    Basic Event
    Motion Detection Set detection area, can set multi-level sensitivity
    Occlusion Alarm Support 1 area
    Privacy Mask Support 4 areas
    Smart Event
    Human Detection It can detect target ≤5-10 persons at the same time
    Humanoid pixel ≥40X40
    Detection Ratio ≥99%(meet above requirement)
    Capture Corresponding Speed ≤1s
    Support specified area detection, default full screen
    Error detection rate 2% or less
    Maximum detection frame rate is 5fps /s
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    On-Board Storage No
    Alarm No
    RS-485 No
    General
    POE IEEE802.3af
    Power Supply DC12V±10% /POE
    Power Consumption Max 6W
    Lightning Protection 6KV
    Housing Metal Bullet
    Weather Proof IP67
    Working Temperature -10 °C to 50 °C
    Working Humidity 10%-95% (Non-condensing)
    Model Number L2KQ500SFA2-PT
    Camera
    Image Sensor 1/2.7" 5MP low illumination CMOS sensor
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    Shutter Time Auto(1/5 - 1/100000)
    Lens
    Lens Type Fixed Lens 3.6mm @F1.6
    Lens Resolution 5MP
    Illuminator
    Light Distance Warm Light 30m,IR Light 40m
    IR LEDs 2pcs Hybrid Light Core[$add]1pcs Strobe Warning Light LEDs
    Day & Night Mode Hybrid Light(Enable Red and Blue Flashing)/ Infrared Mode/ Full Color Mode
    Video
    Max. Image Resolution 5MP(2880*1620)@25fps
    Video Compression S.265/H.265/H.264
    Frame Rate Main stream:PAL: 5MP (2880x1620@25fps),4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC: 5MP(2880x1620@30fps),4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fpsSub-stream:PAL:D1(720x576)@25fps,VGA(640x480)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps
    Video Bit Rate 1024Kbps-8000Kbps support self-adjustable as needed
    Image Settings Brightness,contrast,saturation,sharpness,chroma
    White Balance Auto / Manual
    Gain Control Support
    BLC Support
    HLC Support
    WDR Digital WDR
    Noise Reduction 3D NR(Off/Low/Middle/High/Higher)
    Defog Off/Low/Middle/High
    Mirror Off/horizontal mirror/vertical mirror/180° flip
    Character Overlay (OSD) Title, time and date overlay, multi-line, and color of characters optional
    Audio
    Audio Input Support, built-in microphones
    Audio Output Support, built-in speaker
    Voice Broadcast Alarm Built-in 8 different broadcast options
    Audio Compression G.711U/64Kbps
    Network
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Networking Protocol TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP
    Connection Protocol Onvif,GB28181
    APP(P2P) Through the NVR
    PC Support
    Web Access Support HTML5 remote login operation(Free plug-in)
    Preview Simultaneously Video Number 4
    Device Abnormal Inspection Support network broken alarm, IP conflict alarm, illegal visiting alarm
    Security Mode Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification
    Event
    Alarm Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm
    Linkage Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming
    Basic Event
    Motion Detection Set detection area, can set multi-level sensitivity
    Occlusion Alarm Support 1 area
    Privacy Mask Support 4 areas
    Smart Event
    Human Detection It can detect target ≤5-10 persons at the same time
    Humanoid pixel ≥40X40
    Detection Ratio ≥99%(meet above requirement)
    Capture Corresponding Speed ≤1s
    Support specified area detection, default full screen
    Error detection rate 2% or less
    Maximum detection frame rate is 5fps /s
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    On-Board Storage Support,Max 512G
    Alarm No
    RS-485 No
    General
    POE IEEE802.3af
    Power Supply DC12V±10% /POE
    Power Consumption Max 6W
    Lightning Protection 6KV
    Housing Metal Bullet
    Weather Proof IP67
    Working Temperature -10 °C to 50 °C
    Working Humidity 10%-95% (Non-condensing)
    Model Number L2KQ80XSFA2-P
    Camera
    Image Sensor 1/2.66" 8MP low illumination CMOS sensor
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    Shutter Time Auto(1/5 - 1/100000)
    Lens
    Lens Type Fixed Lens 3.6mm @F1.6
    Lens Resolution 8MP
    Illuminator
    Light Distance Warm Light 30m,IR Light 40m
    IR LEDs 2pcs Hybrid Light Core[$add]1pcs Strobe Warning Light LEDs
    Day & Night Mode Hybrid Light(Enable Red and Blue Flashing)/ Infrared Mode/ Full Color Mode
    Video
    Max. Image Resolution 8MP(3840x2160)@25fps
    Video Compression S.265/H.265/H.264
    Frame Rate Main stream:PAL: 8MP(3840x2160@25fps) ,5MP (2592x1904@25fps,)4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC:8MP(3072x2048@25fps),5MP(2592x1904@30fps)4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fps,Sub-stream:PAL:D1(720x576)@25fps,VGA(640x480)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps
    Image Settings Brightness,contrast,saturation,sharpness,chroma
    White Balance Auto / Manual
    Gain Control Low/Mid-Low/Mid/Mid-High/High
    BLC Support
    HLC Support
    WDR Digital WDR
    Noise Reduction 3D NR(Off/Low/Middle/High/Higher)
    Defog Off/On
    Mirror Off/horizontal mirror/vertical mirror/180° flip
    Character Overlay (OSD) Title, time and date overlay, multi-line, and color of characters optional
    Audio
    Audio Input Support, built-in microphones
    Audio Output Support, built-in speaker
    Voice Broadcast Alarm Built-in 8 different broadcast options
    Audio Compression G.711A/U 8k 64bit
    Network
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Networking Protocol TCP/IP,UDP,HTTP,HTTPS,DHCP,PPPOE,RTSP,RTMP,DDNS,UPNP,FTP
    Connection Protocol ONVIF/SLINK
    APP(P2P) Through the NVR
    PC Support
    Web Access Support HTML5 remote login operation(Free plug-in)
    Preview Simultaneously Video Number 4
    Device Abnormal Inspection Support network broken alarm, IP conflict alarm, illegal visiting alarm
    Security Mode Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification
    Event
    Alarm Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm
    Linkage Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming
    Basic Event
    Motion Detection Set detection area, can set multi-level sensitivity
    Occlusion Alarm Support 1 area
    Privacy Mask Support 4 areas
    Smart Event
    Human Detection It can detect target ≤5-10 persons at the same time
    Humanoid pixel ≥40X40
    Detection Ratio ≥99%(meet above requirement)
    Capture Corresponding Speed ≤1s
    Support specified area detection, default full screen
    Error detection rate 2% or less
    Maximum detection frame rate is 5fps /s
    Area Intrusion a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
    Line-Cross Detection a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
    Person Loitering a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm
    Absent Alarm a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail \ voice broadcast alarm
    Vehicle illegal Parking a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm
    Vehicle Retrograde a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail \ voice broadcast alarm
    Area Intrusion a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    On-Board Storage No
    Alarm No
    RS-485 No
    Reset No
    General
    POE IEEE802.3af
    Power Supply DC12V±10% /POE
    Power Consumption Max 6W
    Surge Protection 6KV
    Housing Metal Bullet
    Weather Proof IP67
    Working Temperature -20 °C to 50 °C
    Working Humidity 10%-95% (Non-condensing)
    Model Number L2KQ80XSFA2-PT
    Camera
    Image Sensor 1/2.66" 8MP low illumination CMOS sensor
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    Shutter Time Auto(1/5 - 1/100000)
    Lens
    Lens Type Fixed Lens 3.6mm @F1.6
    Lens Resolution 8MP
    Illuminator
    Light Distance Warm Light 30m,IR Light 40m
    IR LEDs 2pcs Hybrid Light Core[$add]1pcs Strobe Warning Light LEDs
    Day & Night Mode Hybrid Light(Enable Red and Blue Flashing)/ Infrared Mode/ Full Color Mode
    Video
    Max. Image Resolution 8MP(3840x2160)@25fps
    Video Compression S.265/H.265/H.264
    Frame Rate Main stream:PAL: 8MP(3840x2160@25fps) ,5MP (2592x1904@25fps,)4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC:8MP(3072x2048@25fps),5MP(2592x1904@30fps)4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fps,Sub-stream:PAL:D1(720x576)@25fps,VGA(640x480)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps
    Image Settings Brightness,contrast,saturation,sharpness,chroma
    White Balance Auto / Manual
    Gain Control Low/Mid-Low/Mid/Mid-High/High
    BLC Support
    HLC Support
    WDR Digital WDR
    Noise Reduction 3D NR(Off/Low/Middle/High/Higher)
    Defog Off/Low/Middle/High
    Mirror Off/horizontal mirror/vertical mirror/180° flip
    Character Overlay (OSD) Title, time and date overlay, multi-line, and color of characters optional
    Audio
    Audio Input Support, built-in microphones
    Audio Output Support, built-in speaker
    Voice Broadcast Alarm Built-in 8 different broadcast options
    Audio Compression G.711A/U 8k 64bit
    Network
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Networking Protocol TCP/IP,UDP,HTTP,HTTPS,DHCP,PPPOE,RTSP,RTMP,DDNS,UPNP,FTP
    Connection Protocol ONVIF/SLINK
    APP(P2P) Via NVR(optional)
    PC Support
    Web Access Support HTML5 remote login operation(Free plug-in)
    Preview Simultaneously Video Number 4
    Device Abnormal Inspection Support network broken alarm, IP conflict alarm, illegal visiting alarm
    Security Mode Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification
    Event
    Alarm Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm
    Linkage Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming
    Basic Event
    Motion Detection Set detection area, can set multi-level sensitivity
    Occlusion Alarm Support 1 area
    Privacy Mask Support 4 areas
    Smart Event
    Human Detection It can detect target ≤5-10 persons at the same time
    Humanoid pixel ≥40X40
    Detection Ratio ≥99%(meet above requirement)
    Capture Corresponding Speed ≤1s
    Support specified area detection, default full screen
    Error detection rate 2% or less
    Maximum detection frame rate is 5fps /s
    Area Intrusion a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
    Line-Cross Detection a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
    Person Loitering a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm
    Absent Alarm a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail \ voice broadcast alarm
    Vehicle illegal Parking a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm
    Vehicle Retrograde a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail \ voice broadcast alarm
    Area Intrusion a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    On-Board Storage Support, MAX 512G
    Alarm No
    RS-485 No
    Reset No
    General
    POE IEEE802.3af
    Power Supply DC12V±10% /POE
    Power Consumption Max 6W
    Surge Protection 6KV
    Housing Metal Bullet
    Weather Proof IP67
    Working Temperature -20 °C to 50 °C
    Working Humidity 10%-95% (Non-condensing)
    Careers Product Quality Technical Support Sales Marketing
