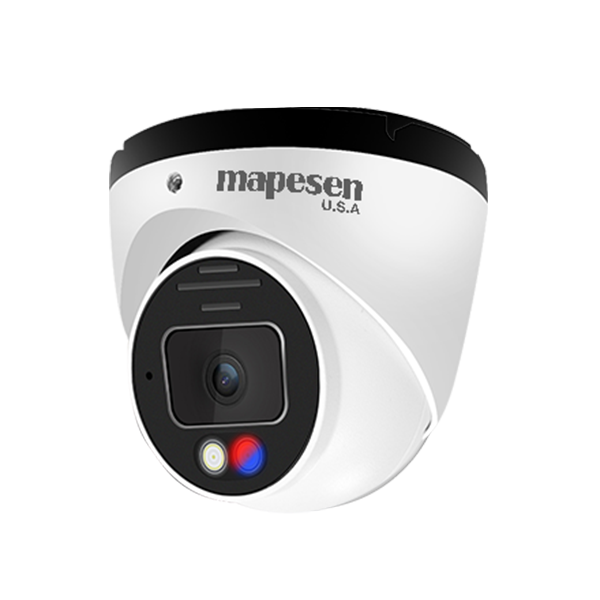

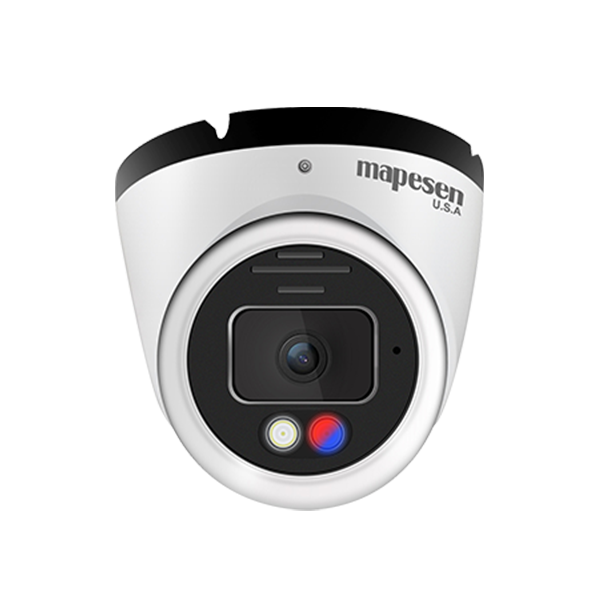

M2J Lite Series-Mapesen Technology Limited CCTV Security Camera Factory

Products

· S265/H.265/H.264 Encoding,Saving Half Storage Capacity with Our NVR.

· F1.6/3.6mm Fixed Lens(2.8mm/6mm/8mm optional).

· Hybrid Light(Enable Red and Blue Flashing)/ Infrared Mode/ Full Color Mode,IR Distance 30～35m,Full Color Distance 20～25m.

· With Face Lighting Function, Backlight See Clearly License Plate Function(Can not be Used Simultenously).

· AI Humanoid Detection/Tracking & Motion Detection Alarm,Support Alarm Detection Area Setting,Alarm Linkage Voice Broadcast with Customized Contents.

· With Two-way Audio.

· DC12V / POE(IEEE.802.3af),HMTL5 Plug-in Free.

· AGC,DWDR,3D DNR, BLC,4KV Lighting Protection,Metal Dome,IP66 Waterproof.

· With SOUND and LIGHT ALARM.

Model Number	M2JQ500SFA2-P
Camera
Image Sensor	1/2.7" 5MP low illumination CMOS sensor
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time	Auto(1/5 - 1/100000)
Lens
Lens Type	Fixed Lens 3.6mm @F1.6
Lens Resolution	5MP
Illuminator
Light Distance	Warm Light 25m,IR Light 30m
IR LEDs	1pc Hybrid Light Core[$add]1pc Strobe Warning Light LEDs
Day & Night Mode	Hybrid Light(Enable Red and Blue Flashing)/ Infrared Mode/ Full Color Mode
Video
Max. Image Resolution	5MP(2880*1620)@25fps
Video Compression	S.265/H.265/H.264
Frame Rate	Main stream:PAL: 5MP (2880x1620@25fps),4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC: 5MP(2880x1620@30fps),4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fpsSub-stream:PAL:D1(720x576)@25fps,VGA(640x480)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps
Video Bit Rate	1024Kbps-8000Kbps support self-adjustable as needed
Image Settings	Brightness,contrast,saturation,sharpness,chroma
White Balance	Auto / Manual
Gain Control	Support
BLC	Support
HLC	Support
WDR	Digital WDR
Noise Reduction	3D NR(Off/Low/Middle/High/Higher)
Defog	Off/Low/Middle/High
Mirror	Off/horizontal mirror/vertical mirror/180° flip
Character Overlay (OSD)	Title, time and date overlay, multi-line, and color of characters optional
Audio
Audio Input	Support, built-in microphones
Audio Output	Support, built-in speaker
Voice Broadcast Alarm	Built-in 8 different broadcast options
Audio Compression	G.711U/64Kbps
Network
Network Interface	1*RJ45 10M/100M Self-adaptation Ethernet Port
Networking Protocol	TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP
Connection Protocol	Onvif,GB28181
APP(P2P)	Through the NVR
PC	Support
Web Access	Support HTML5 remote login operation(Free plug-in)
Preview Simultaneously Video Number	4
Device Abnormal Inspection	Support network broken alarm, IP conflict alarm, illegal visiting alarm
Security Mode	Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification
Event
Alarm	Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm
Linkage	Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming
Basic Event
Motion Detection	Set detection area, can set multi-level sensitivity
Occlusion Alarm	Support 1 area
Privacy Mask	Support 4 areas
Smart Event
Human Detection	It can detect target ≤5-10 persons at the same time
	Humanoid pixel ≥40X40
	Detection Ratio ≥99%(meet above requirement)
	Capture Corresponding Speed ≤1s
	Support specified area detection, default full screen
	Error detection rate 2% or less
	Maximum detection frame rate is 5fps /s
Interface
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage	No
Alarm	No
RS-485	No
General
POE	IEEE802.3af
Power Supply	DC12V±10% /POE
Power Consumption	Max 6W
Lightning Protection	6KV
Housing	Metal Dome
Weather Proof	IP65
Working Temperature	-10 °C to 50 °C
Working Humidity	10%-95% (Non-condensing)

Model Number	M2JQ80XSFA2-P
Camera
Image Sensor	1/2.66" 8MP low illumination CMOS sensor
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time	Auto(1/5 - 1/100000)
Lens
Lens Type	Fixed Lens 3.6mm @F1.6
Lens Resolution	8MP
Illuminator
Light Distance	Warm Light 25m,IR Light 30m
IR LEDs	1pcs Hybrid Light Core[$add]1pcs Strobe Warning Light LEDs
Day & Night Mode	Hybrid Light(Enable Red and Blue Flashing)/ Infrared Mode/ Full Color Mode
Video
Max. Image Resolution	8MP(3840x2160)@25fps
Video Compression	S.265/H.265/H.264
Frame Rate	Main stream:PAL: 8MP(3840x2160@25fps) ,5MP (2592x1904@25fps,)4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC:8MP(3072x2048@25fps),5MP(2592x1904@30fps)4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fps,Sub-stream:PAL:D1(720x576)@25fps,VGA(640x480)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps
Image Settings	Brightness,contrast,saturation,sharpness,chroma
White Balance	Auto / Manual
Gain Control	Support
BLC	Support
HLC	Support
WDR	Digital WDR
Noise Reduction	3D NR(Off/Low/Middle/High/Higher)
Defog	Off/On
Mirror	Off/horizontal mirror/vertical mirror/180° flip
Character Overlay (OSD)	Title, time and date overlay, multi-line, and color of characters optional
Audio
Audio Input	Support, built-in microphones
Audio Output	Support, built-in speaker
Voice Broadcast Alarm	Built-in 8 different broadcast options
Audio Compression	G.711A/U 8k 64bit
Network
Network Interface	1*RJ45 10M/100M Self-adaptation Ethernet Port
Networking Protocol	TCP/IP,UDP,HTTP,HTTPS,DHCP,PPPOE,RTSP,RTMP,DDNS,UPNP,FTP
Connection Protocol	ONVIF/SLINK
APP(P2P)	Through the NVR
PC	Support
Web Access	Support HTML5 remote login operation(Free plug-in)
Preview Simultaneously Video Number	4
Device Abnormal Inspection	Support network broken alarm, IP conflict alarm, illegal visiting alarm
Security Mode	Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification
Event
Alarm	Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm
Linkage	Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming
Basic Event
Motion Detection	Set detection area, can set multi-level sensitivity
Occlusion Alarm	Support 1 area
Privacy Mask	Support 4 areas
Smart Event
Human Detection	It can detect target ≤5-10 persons at the same time
	Humanoid pixel ≥40X40
	Detection Ratio ≥99%(meet above requirement)
	Capture Corresponding Speed ≤1s
	Support specified area detection, default full screen
	Error detection rate 2% or less
	Maximum detection frame rate is 5fps /s
Area Intrusion	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
Line-Cross Detection	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
Person Loitering	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm
Absent Alarm	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail \ voice broadcast alarm
Vehicle illegal Parking	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm
Vehicle Retrograde	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail \ voice broadcast alarm
Area Intrusion	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
Interface
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage	No
Alarm	No
RS-485	No
Reset	No
General
POE	IEEE802.3af
Power Supply	DC12V±10% /POE
Power Consumption	Max 6W
Surge Protection	6KV
Housing	Metal Dome
Weather Proof	IP65
Working Temperature	-20 °C to 50 °C
Working Humidity	10%-95% (Non-condensing)

Model Number	M2JQ80XSFA2-P
Camera
Image Sensor	1/2.66" 8MP low illumination CMOS sensor
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time	Auto(1/5 - 1/100000)
Lens
Lens Type	Fixed Lens 3.6mm @F1.6
Lens Resolution	8MP
Illuminator
Light Distance	Warm Light 25m,IR Light 30m
IR LEDs	1pcs Hybrid Light Core[$add]1pcs Strobe Warning Light LEDs
Day & Night Mode	Hybrid Light(Enable Red and Blue Flashing)/ Infrared Mode/ Full Color Mode
Video
Max. Image Resolution	8MP(3840x2160)@25fps
Video Compression	S.265/H.265/H.264
Frame Rate	Main stream:PAL: 8MP(3840x2160@25fps) ,5MP (2592x1904@25fps,)4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC:8MP(3072x2048@25fps),5MP(2592x1904@30fps)4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fps,Sub-stream:PAL:D1(720x576)@25fps,VGA(640x480)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps
Image Settings	Brightness,contrast,saturation,sharpness,chroma
White Balance	Auto / Manual
Gain Control	Support
BLC	Support
HLC	Support
WDR	Digital WDR
Noise Reduction	3D NR(Off/Low/Middle/High/Higher)
Defog	Off/On
Mirror	Off/horizontal mirror/vertical mirror/180° flip
Character Overlay (OSD)	Title, time and date overlay, multi-line, and color of characters optional
Audio
Audio Input	Support, built-in microphones
Audio Output	Support, built-in speaker
Voice Broadcast Alarm	Built-in 8 different broadcast options
Audio Compression	G.711A/U 8k 64bit
Network
Network Interface	1*RJ45 10M/100M Self-adaptation Ethernet Port
Networking Protocol	TCP/IP,UDP,HTTP,HTTPS,DHCP,PPPOE,RTSP,RTMP,DDNS,UPNP,FTP
Connection Protocol	ONVIF/SLINK
APP(P2P)	Via NVR(optional)
PC	Support
Web Access	Support HTML5 remote login operation(Free plug-in)
Preview Simultaneously Video Number	4
Device Abnormal Inspection	Support network broken alarm, IP conflict alarm, illegal visiting alarm
Security Mode	Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification
Event
Alarm	Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm
Linkage	Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming
Basic Event
Motion Detection	Set detection area, can set multi-level sensitivity
Occlusion Alarm	Support 1 area
Privacy Mask	Support 4 areas
Smart Event
Human Detection	It can detect target ≤5-10 persons at the same time
	Humanoid pixel ≥40X40
	Detection Ratio ≥99%(meet above requirement)
	Capture Corresponding Speed ≤1s
	Support specified area detection, default full screen
	Error detection rate 2% or less
	Maximum detection frame rate is 5fps /s
Area Intrusion	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
Line-Cross Detection	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
Person Loitering	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm
Absent Alarm	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail \ voice broadcast alarm
Vehicle illegal Parking	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm
Vehicle Retrograde	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail \ voice broadcast alarm
Area Intrusion	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
Interface
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage	Support, MAX 512G
Alarm	No
RS-485	No
Reset	No
General
POE	IEEE802.3af
Power Supply	DC12V±10% /POE
Power Consumption	Max 6W
Surge Protection	6KV
Housing	Metal Dome
Weather Proof	IP65
Working Temperature	-20 °C to 50 °C
Working Humidity	10%-95% (Non-condensing)
