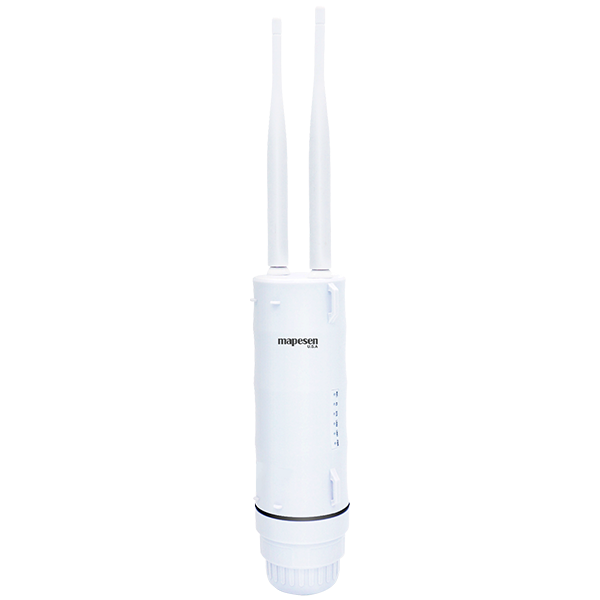

AP-1001

Outdoor Gigabit Dual-band Wireless AP

Outdoor Dual-band AP · 2.4G+5G Wi-Fi · High Wireless Speed · Dual Gigabit Ports · Multiple Encryption · 802.11b/g/n Compliant · DC/PoE Dual Power · IP65 Waterproof ·
    Products
    ·  Outdoor Gigabit Dual-band Wireless AP
    ·  Wireless rate: 2.4GHz: 300Mbps, 5GHz: 866Mbps.
    ·  2 x10/100/1000Mbps adaptive network ports.
    ·  Support WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK encryption.
    ·  Complies with IEEE802.11b/g/n2.4GHz, IEEE802.3, IEEE802.3u standard protocol.
    ·  Power: DC12V1A / POE 48V
    ·  IP65 waterproof.
    Model Number AP-1001
    Hardware
    CPU MT7621
    Storage Flash:16MB,DDR:128MB
    Network Standard IEEE802.3,IEEE802.3u,IEEE802.3ab
    Transmission Medium(Ethernet) 10/100/1000Mbps WAN port*1,10/100/1000Mbps LAN port*1
    Antenna 2.4G:External omnidirectional detachable 5dBi*25.8GHz Built-in omnidirectional 5dBi*2
    Button Reset Button *1
    Power Supply DC 12V/1APOE 48V
    Indicator Light LED*6( PWR,SYS,2.4G,5.8G,WAN,LAN)
    Software
    Working Mode WAN Mode:DHCP,PPPoE,Static (fixed IP),wireless repeater mode
    Network LAN/WAN conversion, LAN, DHCP server, VLAN, QoS, DDNSVPN: PPTP client/L2TP client, static routing, network detectionVirtual server: port forwarding, virtual server: DMZ
    Safety MAC address filtering, IP address filtering, domain name filtering, WPS, WiFi plan, remote management
    Other Time zone, firmware upgrade, backup/restore, management password, WatchCat, scheduled restart/reboot
    Diagnostic Tools PING network connectivity test, TRACEROUTE route tracking, NSLOOKUP
    Factory Default Settings IP Address:192.168.1.254,Username/Password:admin
    Wireless Specifications
    Wireless Standard IEEE 802.11b/g/a/n/ac
    Data Rate 2.4GHz:300Mbps,5.8GHz:866Mbps
    Transmit Power 20dBm
    Receiver Sensitivity -92dBm
    Frequency Band 2.4GHz&5.8GHz
    Wireless Encryption WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK
    Other
    Operative Temperature -20℃~55℃
    Working Humidity 10%~90% RH non-condensing
    Storage Temperature -40℃~80℃
    Storage Humidity 5%~90% RH non-condensing
    Dimensions 196*68*68mm (L*W*H)
    Installation Method Pole-mounted
