RT-2007-4G-EU｜RT-2008-4G-US

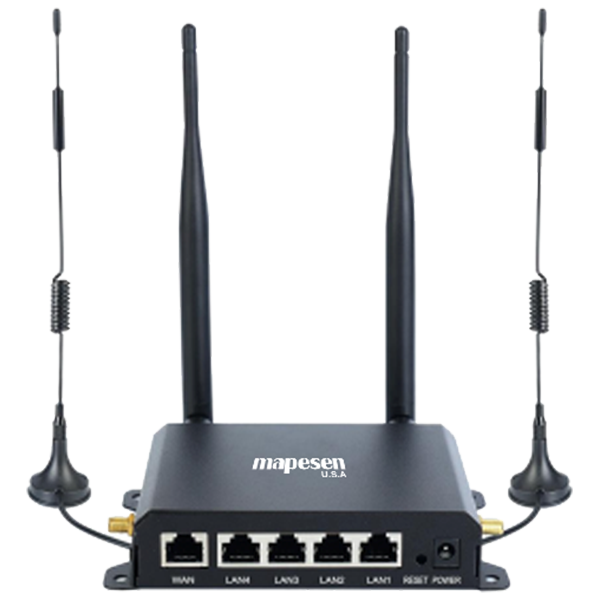

4G Router

EU/US 4G Router · 4G & Broadband Dual Access · 2.4G 300Mbps · Five Fast Ethernet Ports · WPA/WPA2 Encryption · Standard Protocol · DC 12V Power
    Products
    ·  4G Router-EU Version/US Version
    ·  4G network can be converted into wireless and wired network, accessed broadband can also be connected and converted to wireless / wired network, Wired network takes priority when both are accessed at the same time.
    ·  Wireless speed 2.4GHz 300Mbps
    ·  5 x10/100Mbps adaptive network ports
    ·  Supports WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK encryption
    ·  Compliant with IEEE 802.11b/g/n 2.4GHz standard protocol, IEEE 802.3, IEEE 802.3u standard protocol
    ·  Power: DC12V
    Model Number RT-2007-4G-EU
    Hardware
    CPU QCA9531
    Storage Flash:16MB ,DDR:128MB
    Network Standard IEEE802.3,IEEE802.3u
    Transmission Medium(Ethernet) 10/100Mbps WAN port*1,10/100Mbps LAN port*4
    Antenna 2.4GHz: 5dbi external omnidirectional antenna *2; 4G: 5dbi external omnidirectional antenna *2
    4G Module CAT4, supports a downstream rate of 150Mbps and an upstream rate of up to 50MbpsLTE TDD:B34/B38/B39/B40/B41;LTE FDD:B1/B3/B5/B8;GSM:900/1800MHz
    SIM Card Support standard SIM cards 25*15mm
    Button Reset Button *1
    Power Supply DC 12V/1A
    Indicator Light LED*8 POWER,4G,WiFi,LAN1,LAN2,LAN3,LAN4,WAN
    SD Card Hardware reserved with SD card
    Software
    Working Mode WAN Mode:DHCP,PPPoE,Static(fixed IP);
    Network LAN/WAN Switching,LAN,DHCP Server,VLAN,QoS ,DDNSVPN:PPTP Client / L2TP Client,Static Routing,Network DiagnosticsVirtual Server: Port Forwarding,Virtual Server: DMZ
    Safety MAC Address Filtering,IP Address Filtering,Domain Name Filtering,WPS,Wi-Fi Schedule,Remote Management
    Other Can provide cloud management, time zone, firmware upgrade, backup/restore, password management WatchCat,Scheduled restart/reboot
    Diagnostic Tools PING Connectivity Test,TRACEROUTE Route Tracing,NSLOOKUP
    Factory Default Settings IP Address：192.168.1.254,Username/Password:admin
    Wireless Specification
    Wireless Standard IEEE 802.11b/g/n
    Data Rate 300Mbps
    Transmit Power 20dBm
    Receiver Sensitivity -94dBm
    Frequency Band 2.4GHz
    Wireless Encryption WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK
    General
    Operative Temperature -30℃~70℃
    Working Humidity 10%~90% RH non-condensing
    Storage Temperature -40℃~80℃
    Storage Humidity 5%~90% RH non-condensing
    Dimensions 140*85*30mm (L*W*H)
    Installation Method Desktop,Wall-mounted
    Model Number RT-2008-4G-US
    Hardware
    CPU QCA9531
    Storage Flash:16MB ,DDR:128MB
    Network Standard IEEE802.3,IEEE802.3u
    Transmission Medium(Ethernet) 10/100Mbps WAN port*1,10/100Mbps LAN port*4
    Antenna 2.4GHz: 5dbi external omnidirectional antenna *2; 4G: 5dbi external omnidirectional antenna *2
    4G Module CAT4, supports a downstream rate of 150Mbps and an upstream rate of up to 50MbpsLTE TDD:B34/B38/B39/B40/B41;LTE FDD:B1/B3/B5/B8;GSM:900/1800MHz
    SIM Card Support standard SIM cards 25*15mm
    Button Reset Button *1
    Power Supply DC 12V/1A
    Indicator Light LED*8 POWER,4G,WiFi,LAN1,LAN2,LAN3,LAN4,WAN
    SD Card Hardware reserved with SD card
    Software
    Working Mode WAN Mode:DHCP,PPPoE,Static(fixed IP)
    Network LAN/WAN Switching,LAN,DHCP Server,VLAN,QoS ,DDNSVPN:PPTP Client / L2TP Client,Static Routing,Network DiagnosticsVirtual Server: Port Forwarding,Virtual Server: DMZ
    Safety MAC Address Filtering,IP Address Filtering,Domain Name Filtering,WPS,Wi-Fi Schedule,Remote Management
    Other Can provide cloud management, time zone, firmware upgrade, backup/restore, password management WatchCat,Scheduled restart/reboot
    Diagnostic Tools PING Connectivity Test,TRACEROUTE Route Tracing,NSLOOKUP
    Factory Default Settings IP Address：192.168.1.254,Username/Password:admin
    Wireless Specification
    Wireless Standard IEEE 802.11b/g/n
    Data Rate 300Mbps
    Transmit Power 20dBm
    Receiver Sensitivity -94dBm
    Frequency Band 2.4GHz
    Wireless Encryption WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK
    General
    Operative Temperature -30℃~70℃
    Working Humidity 10%~90% RH non-condensing
    Storage Temperature -40℃~80℃
    Storage Humidity 5%~90% RH non-condensing
    Dimensions 140*85*30mm (L*W*H)
    Installation Method Desktop,Wall-mounted
