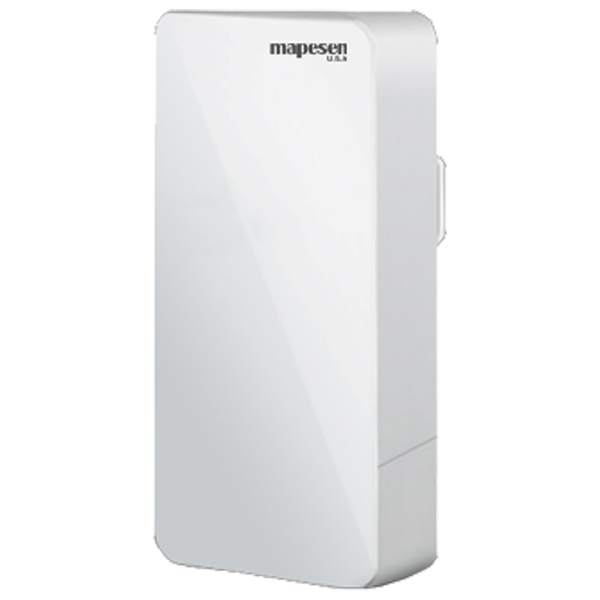

WQ-1001

Outdoor 2.4GHz Wireless Bridge

Outdoor Wireless Bridge · 2.4G 300Mbps · 8dBi High-gain Antenna · Dual Fast Ports · POE/DC Dual Power · IP65 Dustproof & Waterproof · Multi-scene Surveillance
    Products
    ·  Outdoor 2.4GHz Wireless Bridge
    ·  Wireless rate: 2.4GHz 300Mbps.
    ·  8dBi high-gain directional antenna.
    ·  2 x10/100Mbps adaptive network ports.
    ·  Complies with IEEE802.11b/g/n 2.4GHz, IEEE802.3, IEEE802.3u standard protocol.
    ·  Power: POE24V/ DC12V.
    ·  IP65 waterproof and dustproof.
    ·  Application: designed for the video surveillance scene of elevators, towers, neighborhoods, learning,factories, orchards, breeding plants, planting greenhouses, scenic spots and etc.
    Model Number WQ-1001
    Hardware
    CPU MT7628
    Storage Flash:2MB,DDR:8MB
    Network Standard IEEE802.3,IEEE802.3u
    Ethernet Interface 10/100Mbps LAN port*2
    Antenna Built-in directional antenna 8dBi
    Button Reset Button *1
    Power Supply DC 12VPOE 24V
    Indicator Light LED*4(POWER,LAN,SIG1,SIG2)
    Software
    Working Mode Main Bridge End (AP Mode)Sub Bridge End (Client Mode)Sub Bridge End (AP[$add]Client Mode)
    Wireless Settings Basic Settings:Network Name,Encryption Mode,Wireless Password,Wireless ModeAdvanced Settings:BG Protection Mode,Disable Wi-Fi Multimedia (WMM)
    Network Settings LAN Settings,DHCP Server Settings
    System Management Administrator Settings,Firmware Upgrade,System Configuration,Language Settings,Automatic System Cleanup
    Wireless Specifications
    Wireless Standard IEEE 802.11b/g/n
    Data Rate 300Mbps
    Transmit Power 20dBm
    Receiver Sensitivity -92dBm
    Frequency Band 2.4GHz
    General
    Operative Temperature -10℃~55℃
    Working Humidity 10%~90% RH non-condensing
    Storage Temperature -40℃~80℃
    Storage Humidity 5%~90% RH non-condensing
    Dimensions 153*78*50mm (L*W*H)
    Installation Method Pole-mounted,Wall-mounted
