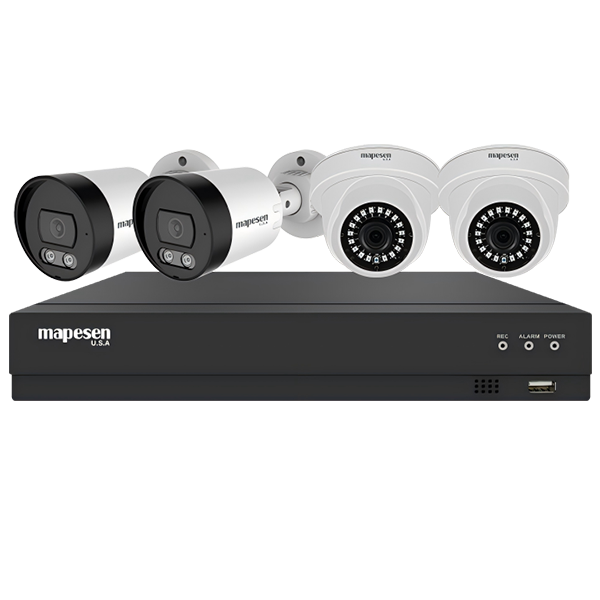

4CH 2MP 5MP 4-IN-1 CCTV Surveillance Camera Kit with Coaxial Audio
| Model | HLM7104SL2IQ2EH207AF |
| 5 IN 1 XVR | |
| Operating System | Embedded LINUX |
| Video | |
| Encoding Format | H.265 |
| Monitor Quality | VGA, HDMI |
| Preview Ability | 4*1080N@25fps |
| Encode Ability | 4*1080N@25fps |
| Decode Ability | 1*1080N@25fps |
| Channel Mode | Support any channel mode combination (1080N analog [$add] 1080P digital) |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas;Multi-level sensitivity can be set (Limited local channel) |
| Audio | |
| Audio | 4CH Coaxial Audio (Specified camera only) |
| Audio Input | 1CH AV Ports |
| Audio Output | 1CH AV Ports |
| Record & Playback | |
| Real-time Video Channels | 4CH non-real-time |
| Record Mode | Timing, manual, motion detection |
| Local Playback | 1CH simultaneous playback |
| Search Mode | Search by time, calendar, event, channel |
| Storage & backup | |
| Video Storage | HDD |
| Backup Mode | USB mobile hard disk, U disk, USB DVD burner |
| Network | |
| Network Connection | 1 RJ45 10/100Mbps self-adaptive port |
| Network Protocol | TCP/IP, DHCP, DNS,DDNS, PPPOE,FTP,NTP,IPNP,SMTP,Email,etc. |
| Browser | Support multiple web browsers(IE/Chrome/Firefox/Safari) |
| APP | Support iPhone, Android |
| PC | Support |
| External Interface | |
| Video Input | 4CH BNC |
| Video Output | 1CH VGA(1080P) |
| 1CH HDMI(1080P) | |
| Audio I/O | 1/1 |
| Network Interface | 1 RJ45 10M/100M self-adaptive port |
| RS485 | No |
| PTZ Control | Support kinds of PTZ protocols(coaxial) |
| USB | 2* USB 2.0 ports |
| HDD | 1*SATA ports (Max 8TB/per) |
| General | |
| Language | More than 9 languages |
| Power Supply | DC 12V/2A |
| Power Consumption | <10W (without HDD) |
| Working Temperature | -10℃ - [$add]60℃ |
| Working Humidity | 10%—90% |
| Camera | Plastic Dome *2PCS[$add]Metal and Plastic Bullet *2PCS |
| Image Sensor | 1/3’’ CMOS Image Sensor |
| Resolution | 1080P@25fps/30fps |
| Effective Pixels | 1920(H)×1080(V) |
| Video Standard | PAL/NTSC |
| Synchronization | Inter-Sync |
| Night Distance | 25~35m |
| IR LEDS | 18PCS IR SMD LEDs/2PCS IR Array LEDs |
| Lens | 3.6mm Fixed Lens |
| Day/Night Mode | Auto/B&W |
| Min. Illumination | 0.05Lux@(F1.6,AGC ON),0LUX with IR |
| UTC | Support |
| OSD | Support |
| Noise Reduction | 2D DNR |
| Shutter | Auto |
| White Balance | Auto/Manual |
| Exposure | Brightness/exposure mode/gain control |
| Audio Output | Coaxial AV hybrid output(Coaxial audio only TVI/CVI mode support),built-in microphone |
| Video Output | AHD/TVI/CVI/CVBS Switch by UTC, default TVI mode output |
| Type | Plastic Dome Camera/Metal and Plastic Bullet Camera |
| Power Supply | 12V DC±10% |
| Lightning protection | Support |
| Power Consumption | Max 3W |
| Working Humidity | Relative humidity less than 90% |
| Operating Temp | -20°C to [$add]50°C (- 14°F to 122°F ) |
| Storage Temp. | -40°C to [$add]60°C ( -40°F to 140°F ) |
| Package | |
| 4CH 5 IN 1 XVR ( with 1*Mouse,1*12V 2A Power Adaptor ) *1PC | |
| 2.0MP IR Plastic Dome Camera with Audio * 2PCS | |
| 2.0MP IR Metal and Plastic Bullet Camera with Audio* 2PCS | |
| 18.3M BNC & Power Cable * 4PCS | |
| 1 Split to 4 Power Cable* 1PC | |
| 12V 2A Power Adaptor for Camera *1PC | |
| Model | HME7104SL2IQ2EH509AF |
| 5 IN 1 XVR | |
| Operating System | Embedded LINUX |
| Video | |
| Encoding Format | H.265 |
| Monitor Quality | VGA, HDMI |
| Preview Ability | 4*5MN@20fps |
| Encode Ability | 4*5MN @12fps |
| Decode Ability | 4*5MN@12fps |
| Channel Mode | Support any channel mode combination (5MN analog [$add] 5M digital) |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas;Multi-level sensitivity can be set (Limited local channel) |
| Audio | |
| Audio | 4CH Coaxial Audio (Specified camera only) |
| Audio Input | 1CH AV Ports |
| Audio Output | 1CH AV Ports |
| Record & Playback | |
| Real-time Video Channels | 4CH non-real-time |
| Record Mode | Timing, manual, motion detection |
| Local Playback | 4CH simultaneous playback |
| Search Mode | Search by time, calendar, event, channel |
| Storage & backup | |
| Video Storage | HDD |
| Backup Mode | USB mobile hard disk,U disk, USB DVD burner |
| Network | |
| Network Connection | 1 RJ45 10/100Mbps self-adaptive port |
| Network Protocol | TCP/IP, DHCP, DDNS, PPPOE, SMTP, NTP,UPNP,Email,etc. |
| Browser | Support multiple web browsers(IE/Chrome/Firefox/Safari) |
| APP | Support iPhone, Android |
| PC | Support |
| External Interface | |
| Video Input | 4CH BNC |
| Video Output | 1CH VGA 1080P |
| 1ch HDMI 1080P | |
| Audio I/O | 1/1 |
| Network Interface | 1CH RJ45 10M/100M self-adaption |
| RS485 | No |
| PTZ Control | Support kinds of PTZ protocols(coaxial) |
| USB | 2* USB 2.0 ports |
| HDD | 1*SATA ports (Max 8TB/per) |
| General | |
| Language | More than 20 languages |
| Power Supply | DC 12V/2A |
| Power Consumption | <10W (without HDD) |
| Working Temperature | -10℃ - [$add]60℃ |
| Working Humidity | 10%—90% |
| Camera | Plastic Dome *2PCS[$add]Metal and Plastic Bullet *2PCS |
| Image Sensor | 1/3.02’’ CMOS Image Sensor |
| Resolution | [email protected]/20fps |
| Effective Pixels | 2560(H) × 1920(V) |
| Video Standard | PAL/NTSC |
| Synchronization | Inter-Sync |
| Night Distance | 25~35m |
| IR LEDS | 18PCS IR SMD LEDs/2PCS IR Array LEDs |
| Lens | 3.6mm Fixed Lens |
| Day & Night Mode | Auto/B&W |
| Min. Illumination | 0.05Lux@(F1.6,AGC ON),0LUX with IR |
| UTC | Support |
| OSD | Support |
| Shutter | Auto |
| White Balance | Auto/Manual |
| Noise Reduction | 2D DNR |
| Video Setting | Contrast/sharpness/saturation/DNR |
| Exposure | Brightness/exposure mode/gain control |
| Audio Output | Coaxial AV hybrid output(Coaxial audio only TVI mode support),built-in microphone |
| Video Output | AHD/TVI/CVI/CVBS Switch by UTC, default TVI mode output |
| Type | Plastic Dome Camera/Metal and Plastic Bullet Camera |
| Power Supply | 12V DC±10% |
| Lightning protection | Support |
| Power Consumption | Max 3W |
| Working Humidity | Relative humidity less than 90% |
| Operating Temp | -20°C to [$add]50°C (- 14°F to 122°F ) |
| Storage Temp. | -40°C to [$add]60°C ( -40°F to 140°F ) |
| Package | |
| 4CH 5 IN 1 XVR ( with 1*Mouse,1*12V 2A Power Adaptor ) *1PC | |
| 5.0MP IR Plastic Dome Camera with Audio * 2PCS | |
| 5.0MP IR Metal and Plastic Bullet Camera with Audio * 2PCS | |
| 18.3M BNC & Power Cable * 4PCS | |
| 1 Split to 4 Power Cable* 1PC | |
| 12V 2A Power Adaptor for Camera *1PC | |
