W2C Convert Camera Series

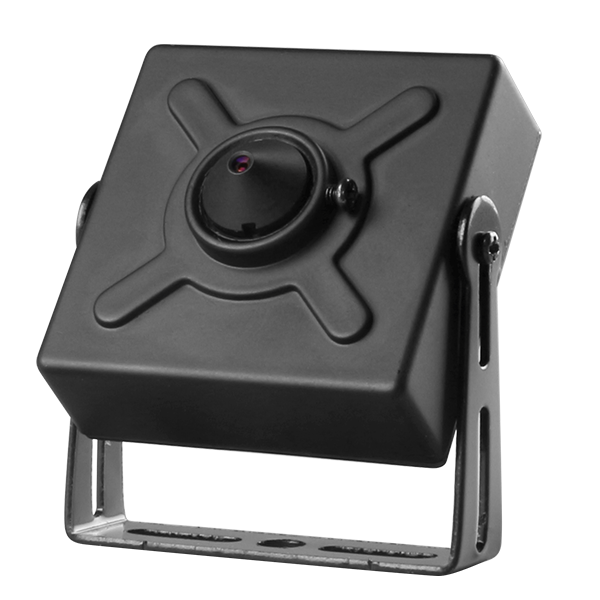

4MP/5MP Metal Mini Square Cube Convert Camera

Ultra-Compact & Discreet Design · Pinhole 3.7mm Lens · DC 12V/POE · ONVIF · Easy Installation & Versatile Placement
    Products
      4MP/5MP Mini Convert Camera
    · H.265/H.264 Encoding.
    · Pinhole 3.7mm Lens,No IR Leds.
    · DC12V/POE Optional.
    · Metal Mini Square Cube.
    Its ultra-miniature form factor allows for seamless covert placement in any environment, making it ideal for home, office, or vehicle surveillance without drawing attention.
    Model Number W2CQ400N
    Camera
    Image Sensor 1/2.8" low illumination CMOS sensor
    Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON),B/W: 0.01 Lux with IR
    Shutter Time 1/50(1/60)s - 1/10000s
    Lens
    Lens Type 3.7mm pinhole lens
    Lens Resolution 4MP
    Illuminator
    IR LEDs No
    Video
    Max. Image Resolution 4MP(2560*1440)@18fps
    Video Compression H.265[$add]/H.265/H.264
    Frame Rate Main Stream:4MP(2560*1440@18fps),3MP(2304*1296@20fps),2MP(1920*1080@25fps)Sub-Stream: 800*448@25fps
    Video Bit Rate 0.1M~8Mbps support self-adjustable
    WDR Digital WDR
    Noise Reduction 2D/3D DNR
    Audio
    Audio Input No
    Audio Output No
    Audio Compression G.711A
    Network
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Networking Protocol RTSP,FTP,DHCP,NTP,UPnP,etc.
    ONVIF Support
    Mobile Surveillance iOS,Android
    PC Support
    Web Access Support
    Event
    Human Detection Support
    Motion Detection Support,Set detection area,can set multi-level sensitivity
    Alarm Linkage Human and motion detection alarm triggers center notification & pop‑up screen linkage
    MJPEG Snapshot Support
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    On-Board Storage No
    Alarm No
    RS-485 No
    Reset No
    General
    Power Supply DC12V±10%
    Power Consumption ≤3W
    Surge Protection 6KV
    Housing Metal mini square cube
    Weather Proof /
    Working Temperature -10 °C to 50 °C
    Working Humidity 0%-90% (Non-condensing)
    Model Number W2CQ400N-P
    Camera
    Image Sensor 1/2.8" low illumination CMOS sensor
    Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON),B/W: 0.01 Lux with IR
    Shutter Time 1/50(1/60)s - 1/10000s
    Lens
    Lens Type 3.7mm pinhole lens
    Lens Resolution 4MP
    Illuminator
    IR LEDs No
    Video
    Max. Image Resolution 4MP(2560*1440)@18fps
    Video Compression H.265[$add]/H.265/H.264
    Frame Rate Main Stream:4MP(2560*1440@18fps),3MP(2304*1296@20fps),2MP(1920*1080@25fps)Sub-Stream: 800*448@25fps
    Video Bit Rate 0.1M~8Mbps support self-adjustable
    WDR Digital WDR
    Noise Reduction 2D/3D DNR
    Audio
    Audio Input No
    Audio Output No
    Audio Compression G.711A
    Network
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Networking Protocol RTSP,FTP,DHCP,NTP,UPnP,etc.
    ONVIF Support
    Mobile Surveillance iOS,Android
    PC Support
    Web Access Support
    Event
    Human Detection Support
    Motion Detection Support,Set detection area,can set multi-level sensitivity
    Alarm Linkage Human and motion detection alarm triggers center notification & pop‑up screen linkage
    MJPEG Snapshot Support
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    On-Board Storage No
    Alarm No
    RS-485 No
    Reset No
    General
    Power Supply DC12V±10% /POE
    Power Consumption ≤3W
    Surge Protection 6KV
    Housing Metal mini square cube
    Weather Proof /
    Working Temperature -10 °C to 50 °C
    Working Humidity 0%-90% (Non-condensing)
    Model Number W2CQ500N
    Camera
    Image Sensor 1/2.8" low illumination CMOS sensor
    Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON),B/W: 0.01 Lux with IR
    Shutter Time 1/50(1/60)s - 1/10000s
    Lens
    Lens Type 3.7mm pinhole lens
    Lens Resolution 5MP
    Illuminator
    IR LEDs No
    Video
    Max. Image Resolution 5MP(2880*1616)@25fps
    Video Compression H.265[$add]/H.265/H.264
    Frame Rate Main Stream:5MP(2880*1616@25fps),4MP(2560*1440@18fps),3MP(2304*1296@20fps),2MP(1920*1080@25fps)Sub-Stream: 800*448@25fps
    Video Bit Rate 0.1M~8Mbps support self-adjustable
    WDR Digital WDR
    Noise Reduction 2D/3D DNR
    Audio
    Audio Input No
    Audio Output No
    Audio Compression G.711A
    Network
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Networking Protocol RTSP,FTP,DHCP,NTP,UPnP,etc.
    ONVIF Support
    Mobile Surveillance iOS,Android
    PC Support
    Web Access Support
    Event
    Human Detection Support
    Motion Detection Support,Set detection area,can set multi-level sensitivity
    Alarm Linkage Human and motion detection alarm triggers center notification & pop‑up screen linkage
    FTP Snapshot Support
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    On-Board Storage No
    Alarm No
    RS-485 No
    Reset No
    General
    Power Supply DC12V±10%
    Power Consumption ≤3W
    Surge Protection 6KV
    Housing Metal mini square cube
    Weather Proof /
    Working Temperature -10 °C to 50 °C
    Working Humidity 0%-90% (Non-condensing)
    Model Number W2CQ500N-P
    Camera
    Image Sensor 1/2.8" low illumination CMOS sensor
    Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON),B/W: 0.01 Lux with IR
    Shutter Time 1/50(1/60)s - 1/10000s
    Lens
    Lens Type 3.7mm pinhole lens
    Lens Resolution 5MP
    Illuminator
    IR LEDs No
    Video
    Max. Image Resolution 5MP(2880*1616)@25fps
    Video Compression H.265[$add]/H.265/H.264
    Frame Rate Main Stream:5MP(2880*1616@25fps),4MP(2560*1440@18fps),3MP(2304*1296@20fps),2MP(1920*1080@25fps)Sub-Stream: 800*448@25fps
    Video Bit Rate 0.1M~8Mbps support self-adjustable
    WDR Digital WDR
    Noise Reduction 2D/3D DNR
    Audio
    Audio Input No
    Audio Output No
    Audio Compression G.711A
    Network
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Networking Protocol RTSP,FTP,DHCP,NTP,UPnP,etc.
    ONVIF Support
    Mobile Surveillance iOS,Android
    PC Support
    Web Access Support
    Event
    Human Detection Support
    Motion Detection Support,Set detection area,can set multi-level sensitivity
    Alarm Linkage Human and motion detection alarm triggers center notification & pop‑up screen linkage
    FTP Snapshot Support
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    On-Board Storage No
    Alarm No
    RS-485 No
    Reset No
    General
    Power Supply DC12V±10% /POE
    Power Consumption ≤3W
    Surge Protection 6KV
    Housing Metal mini square cube
    Weather Proof /
    Working Temperature -10 °C to 50 °C
    Working Humidity 0%-90% (Non-condensing)
