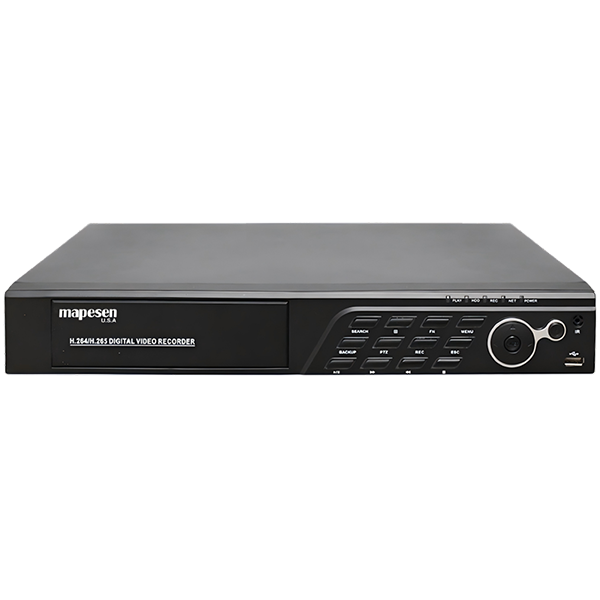

XVR-HGS8232

32CH 4K-N H.265 5-In-1 Hybrid DVR

32CH 4KN@15fps · Coaxial Audio Transmission · Support Synchronous Playback · ONVIF · Support 2HDD/4HDD(4*8TB) · 1 HDMI · 1 VGA · 1 RS485 · 16 Audio Input/1 Output · 8 Alarm Input/2 Output(expendable)
    Products
    · TVI/AHD/CVI/CVBS/IPC five-in-one function, multi-mode input, support HD analog video encoding, support HD analog + HD network video input, support pure HD network video input.
    · Easily implement network penetration through cloud services and remote monitoring in one step.
    · Supports various mobile phone monitoring (iPhone/Android).
    · Support multiple web browsers (IE/Chrome/Firefox/Safari).
    · Support VGA, TV, HDMI output at the same time.
    · Powerful network services (supporting DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, Email, etc.), complete supporting facilities (WEB, client, SDK), easily achieve interconnection and interoperability.
    · Supports more than 20 languages and breaks the limits of national borders.
    · Freely change the startup interface and choose the interface style.
    · Support face human vehicle detection functions.
    · Support STVI function.
    · Support coaxial audio.
    · Support snapshot.
    Model XVR-HGS8232
    System
    Operating System Embedded LINUX
    Video
    Encoding Format H.264,H.265,H.265[$add]
    Monitor Quality VGA, HDMI
    Preview Ability 32*4KN@15ps,32*5M@12fps
    Encode Ability 32*4KN@7ps,32*5M@6fps
    Decode Ability 32*4KN@7ps,32*5M@6fps
    Channel Mode Support analog, digital, mixed channel modes
    Motion Detection Each screen can be set to 192 (16 * 12) detection areas;Multi-level sensitivity can be set (Limited local channel)
    Audio
    Audio 32CH Coaxial Audio (Specified camera only)
    Audio Input 16CH AV Ports (expendable)
    Audio Output 1CH AV Port
    Record & Playback
    Real-time Video Channels 32CH non-real-time
    Record Mode Timing, manual, motion detection,external alarm
    Local Playback 16CH simultaneous playback
    Search Mode Search by time, calendar, event, channel
    Storage & Backup
    Video Storage HDD
    Backup Mode USB mobile hard disk, U disk, USB DVD burner
    Network
    Network Connection 1 RJ45 10/100/1000Mbps self-adaptive port
    Network Protocol TCP/IP, DHCP, DNS,DDNS, PPPOE,FTP,NTP,UPNP,SMTP,Email,etc.
    Browser Support multiple web browsers(IE/Chrome/Firefox/Safari)
    APP Support iPhone, Android
    PC Support
    External Interface
    Video Input 32CH BNC
    Video Output 1CH VGA (1080P)
    1CH HDMI (4K)
    Audio I/O 16(expendable)/1
    Network Interface 1CH RJ45 10M/100M/100M self-adaptive port
    RS485 1
    PTZ Control Protocol PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO,DSCP,VISCA,SAMSUNG,RM110,HY
    PTZ Control Method Pan, Tilt, Zoom, Preset, Cruise, Trace
    USB 3* USB 2.0 ports
    HDD 2*SATA ports (Max 8TB/per)
    Alarm I/O 8(expandable)/2(expendable)
    General
    Language More than 20 languages
    Power Supply DC 12V/5A
    Power Consumption <30W (without HDD)
    Working Temperature -10℃ - [$add]60℃
    Working Humidity 10%—90%
