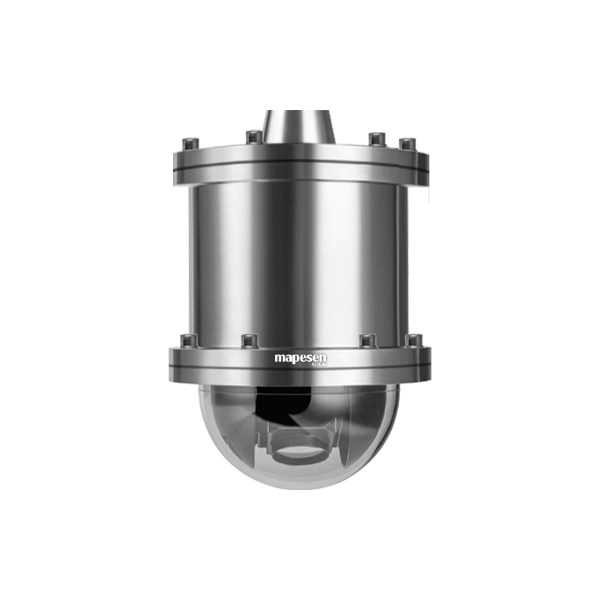

BE501 33X Explosion-proof Network High Speed Dome Camera

2MP-5MP 33X Zoom 5

· 2MP-5MP Full HD · H.265 · Pan/Tilt: 0° ~ 360°/0° ~ 90°, Pan/Tilt Speed 240°/120°/S · Preset/Patrol/Auto-scan/A-B Scan · POE · Motion Detection · 3D DNR · ONVIF · Support HK Private Protocol · Stainless 304

    Model Number

     MP-BE501H3-I200-P

    PTZ

    Pan

    Pan: 0° ~ 360° endless, pan speed 240°/S

    Tilt

    0-90° auto flip, tilt speed 120°/S

    Preset

    128PCS

    Patrol

    4pcs

    Line Scan

    1 x AB line scan

    Auto-scan

    1pcs

    Park Action

    Preset/patrol/None

    IR LEDs

    No

    Video

    Image Sensor

    1/2.8" SONY color CMOS

    Day & Night mode

    Full Color

    Min. Illumination

    Color: 0.001Lux@ (F1.4,AGC ON)

    S/N

    ≥50dB (AGC off)

    video coding

    H265/H264

    Max. Image Resolution

    2MP:1920x1080@25fps

    Frame Rate

    Main code stream: 1080P@25fps;

    Auxiliary stream: D1/VGA@25fps

    Video Bit Rate

    200kbps-6Mbps support self-adjustable as needed

    Audio I/O

    No

    Lens

    Lens

    33X Optical Zoom

    Focal length

    4.6-152mm

    Pan View Angle

    60°- 2° (wide angle - defocus)

    Aperture

    F1.4-F4.2

    Function



    AGC

    Auto

    WDR

    Digital WDR

    DNR

    3D DNR

    BLC

    Auto

    Exposure

    Program mode/shutter mode (1/5-1/50000s) / support slow shutter

    Number of Visitor

    Main stream: three users; Sub-stream: three users

    Network Protocol

    TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, RTSP, SMTP

    Compatibility

    Seamless working with HIKIVISION platforms, support ONVIF 2.6

    Mobile Remote Control

    Optional

    Smart

    Alarm

    Motion detection alarm;

    Motion Detection

    4*3 windows motion detection areas can be setting;

    Video Mask

    1 windows can be built to mask your private area

    Storage

    No

    Interface

    Video Interface

    RJ45 network interface

    Power Interface

    Cable connector

    General

    Language Support

    ENG

    Explosion-proof

    ExD IIC T6 Gb/ ExtD A21 IP68 T80

    Protection Grade

    IP68

    Shell Material

    304 stainless steel

    Power Supply

    DC12V±10% /POE

    POE

    IEEE802.3at

    Power Consumption

    Max 24W

    Working Temperature

    -25 °C to 70 °C

    Working Humidity

    10%-95% (Non-condensing)

    Overall dimensions

    210 X 300 mm(210 X 410 including wall mounted bracket)

    Weight

    12Kg

    Model Number

     MP-BE501H3-I500-P

    PTZ

    Pan

    Pan: 0° ~ 360° endless, pan speed 240°/S

    Tilt

    0-90° auto flip, tilt speed 120°/S

    Preset

    128PCS

    Patrol

    4pcs

    Line Scan

    1 x AB line scan

    Auto-scan

    1pcs

    Park Action

    Preset/patrol/None

    IR LEDs

    No

    Video

    Image Sensor

    1/2.8" SONY color CMOS

    Day & Night mode

    Full Color

    Min. Illumination

    Color: 0.002Lux@ (F1.4,AGC ON)

    S/N

    ≥48dB (AGC off)

    Video Compression

    H265/H264

    Max. Image Resolution

    5MP:2592x1944@25fps

    Frame Rate

    Main code stream: 5MP/1080P@25fps;

    Auxiliary stream: D1/CIF@25fps

    Video Bit Rate

    200kbps-8Mbps support self-adjustable as needed

    Audio I/O

    No

    Lens

    Lens

    33X Optical Zoom

    Focal Length

    4.6-152mm

    Pan View Angle

    60°- 2° (wide angle - defocus)

    Aperture

    F1.4-F4.2

    Function



    AGC

    Auto

    WDR

    Digital WDR

    DNR

    3D DNR

    BLC

    Auto

    Exposure

    Program mode/shutter mode (1/5-1/50000s) / support slow shutter

    Number of Visitor

    Main stream: three users; Sub-stream: three users

    Network Protocol

    TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, RTSP, SMTP

    Compatibility

    Seamless working with HIKIVISION platforms, support ONVIF 2.6

    Mobile Remote Control

    Optional

    Smart

    Alarm

    Motion detection alarm;

    Motion Detection

    4*3 windows motion detection areas can be setting;

    Video Mask

    1 windows can be built to mask your private area

    Storage

    No

    Interface

    Video Interface

    RJ45 network interface

    Power Supply

    Cable connector

    General

    Language Support

    ENG

    Explosion-proof

    ExD IIC T6 Gb/ ExtD A21 IP68 T80

    Protection Grade

    IP68

    Shell Material

    304 stainless steel

    Power Supply

    DC12V±10% /POE

    POE

    IEEE802.3at

    Power Consumption

    Max 24W

    Working Temperature

    -25 °C to 70 °C

    Working Humidity

    10%-95% (Non-condensing)

    Overall dimensions

    210 X 300 mm(210 X 410 including wall mounted bracket)

    Weight

    12Kg
