80B Face Recognition Camera

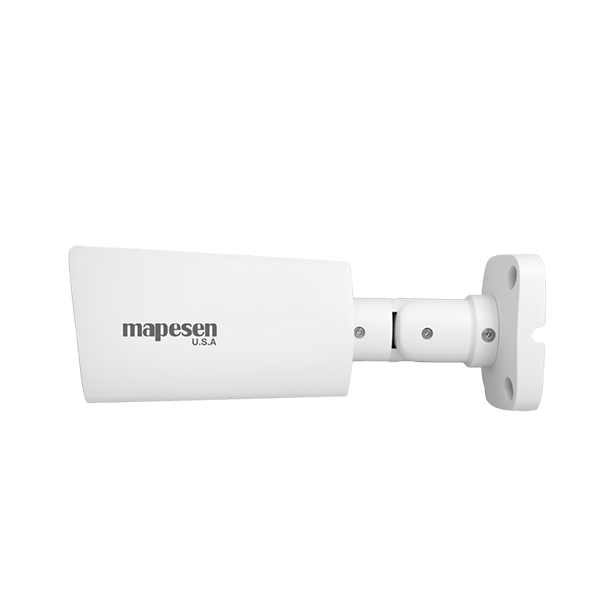

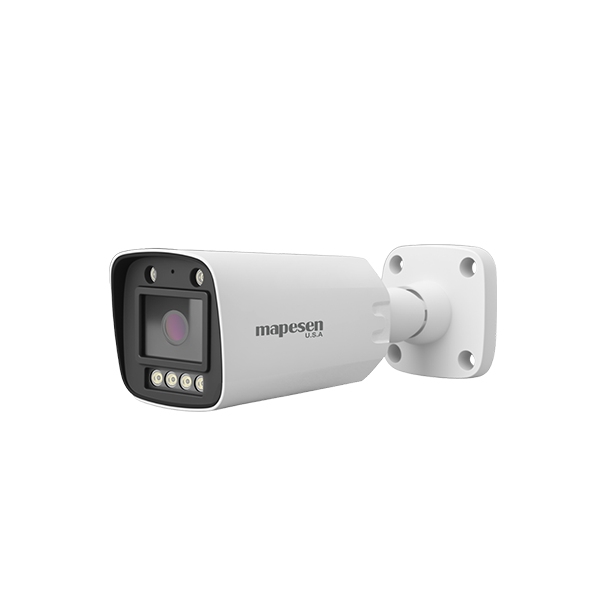

4K Face Recognition Sentrust Bullet Camera with Megvii Algorithm

High Quality Imaging with 4K Resolution · Efficient H.265+ Compression Technology · Excellent Low-light Performance · Supports a Face Database of 10,000 and Whitelist/Blacklist Functionality · POE

    Products
       FEATURE

    · 1/1.8"     8MP low illumination CMOS sensor.

    · 6mm / 8mm fixed lens.

    · Supports a face database of 10,000 and whitelist/blacklist functionality.

    · Support two-way Audio,and equipped with an audio output for external amplifiers.

    · Supports alerts via E-mail, Client Software, and Mobile App Push Notification.

    · DC12V / POE,DWDR,HLC,White Balance,3D DNR.

    · IP66 Waterproof.


      APPLICATION
      Facial recognition surveillance cameras are widely used in scenarios that enhance security, management efficiency, and automation.
    · Security Monitoring:
       - Managing access to important places such as airports, train stations, ports, warehouses, factories, etc., by identifying unauthorized or suspicious individuals.

    · Public Safety:
       - Recognizing suspicious persons or wanted suspects on city streets, squares, public transportation systems, thereby enhancing public safety.

    · Access Control:
       - Automatically recognizing and allowing authorized personnel to enter corporate buildings, company parks, government agencies, campuses, etc.

    · Financial Institutions:
       - Used in banks, ATMs, stock exchanges, for identity verification and surveillance to prevent fraud.

    · Retail and Commercial:
       - Recognizing loyal customers or potential shoplifters in shopping malls and supermarkets to improve customer experience and security.

    · Event Tracking and Investigation:
       - Tracking suspects or missing persons, providing evidence for police investigations.

    · Traffic Management:
       - Recognizing vehicles and drivers on highways, toll gates, or parking lots for automatic access and increased efficiency.

    · Airport and Station Security:
       - Automatically verifying passenger identities to enhance security checks.

    · Campus Management:
       - Controlling access, managing student vehicles, and campus security patrols.

    10. Large Event Security:
        - Recognizing potential risk individuals at conferences, sports events, concerts, and other large gatherings.

     Model Number

    80BAI81LFA2-PTA-FC

    System

    System Processor

    Embedded Linux, Dual-core ARM Processor

    Image Sensor

    1/1.8" CMOS High Performance Sensor

    Memory/Storage

    Memory: 16Gb, Storge:     8GB emmc

    Min. Illumination

    Color 0.01Lux,B/W 0.001Lux

    Lens

    Lens Type

    6mm Fixed Lens @F1.6

    Lens Resolution

    8MP

    Illuminator

    Light Distance

    Warm Light 60m,IR Light 80m

    IR LEDs

    6pcs Hybrid Light Core

    Day & Night Mode

    Hybrid Light Mode/ Infrared Mode/ Full Color Mode

    Video

    Max. Image Resolution

    8MP(3840x2160)@25fps

    Video Compression

    H.265/H.264

    Frame Rate

    Main Stream: 25fps:3840x2160,2560x1440,1920x1080

    Sub-Stream:25fps:720x576,720x480,704x576,640x360,640x480,512x288,352x288

    Video Bit Rate

    Main Stream: 256~8192Kbps,default 4096Kbps

    Sub-Stream: 16~1024Kbps,default 682Kbps

    Image Settings

    Support Brightness, contrast ,saturation, and sharpness adjustment

    WDR

    HDR (DWDR)

    Synchronization

    Inter-Sync

    Noise Reduction

    3D NR

    HLC

    Yes

    White Balance

    Auto

    Exposure Setting

    Auto

    General Features

    Time Configruration, OSD Configuration,Privacy Masking,Log Management

    Audio

    Audio Input

    Support, built-in microphones

    Audio Output

    Support, built-in speaker

    Audio Compression

    G.711A/U

    Network

    Network Connection Mode

    Wired

    Networking Protocol

    HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS

    Interface Protocol(API)

    ONVIF,GB28181

    Web Access

    Support IE8[$add],Chrome18[$add],Firefox5.0[$add],Safari5.02[$add]browser,support Chinese and English

    Simultaneous Preview Channels

    A maximum of 16 concurrent streams per client

    Event

    Face Recognition

    Supports a face database of 10,000 and whitelist/blacklist functionality

    Linkage

    Supports alerts via E-mail, Client Software, and Mobile App Push Notification.

    Interface

    Ethernet Interface

    1 RJ45 10M/100M self-adaptive Ethernet port

    On-Board Storage

    Support, Max 512GB SD card

    Alarm

    NO

    Audio

    YES, Supports external amplifier

    RS-485

    NO

    Reset

    No

    General

    User Management

    Supports up to 12 users with 3-level permissions: Administrator, Operator, and Guest.

    Power Supply

    DC12V±10% /POE

    Power Consumption

    <10W

    Surge Protection

    7KV

    Housing

    Metal Bullet

    Weather Proof

    IP66

    Working Temperature

    -20 °C to 60 °C

    Working Humidity

    10%-90% (Non-condensing)
