80BG601LFA2-PTBR-FI

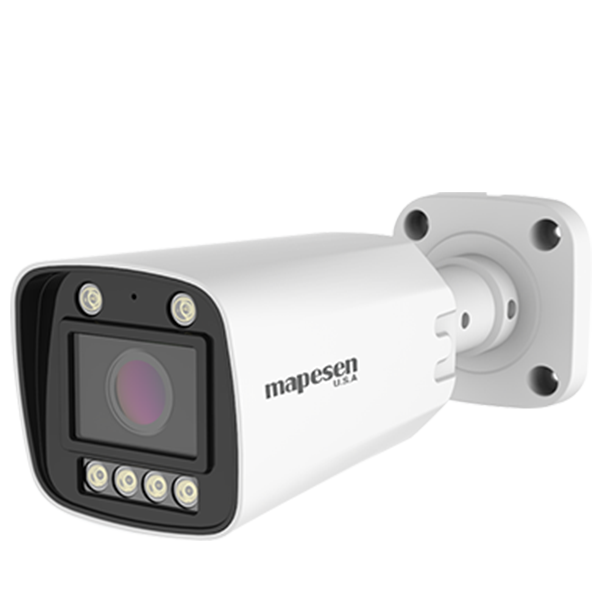

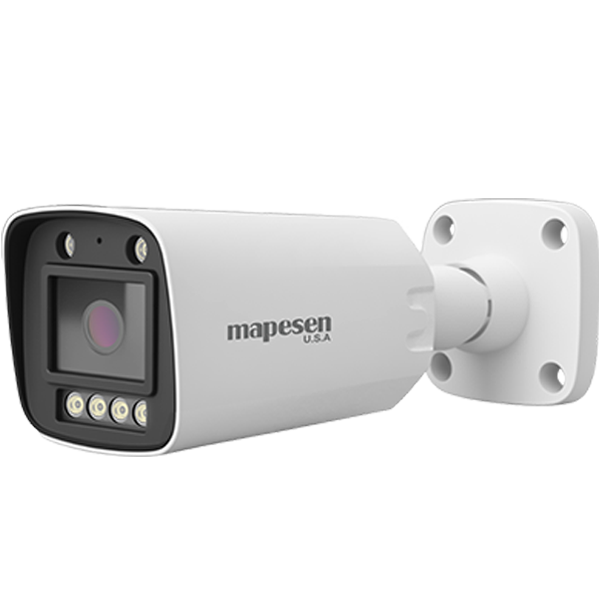

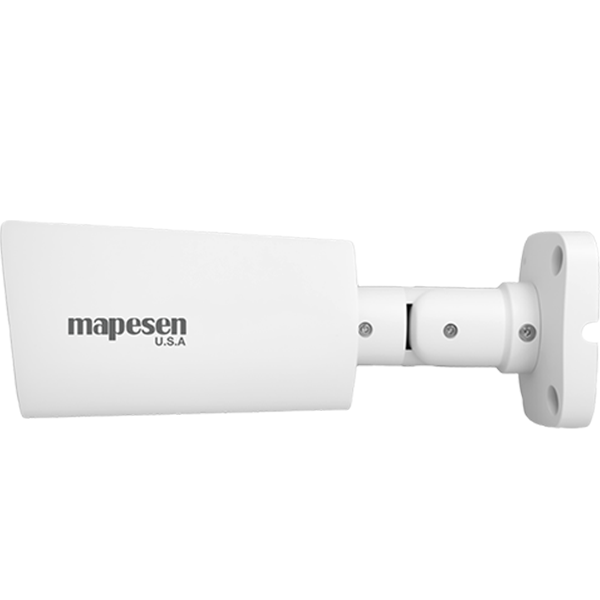

6MP Flame Detection Sentrust POE Network Bullet Camera

4G · 6MP · Efficient H.265+ Compression Technology · Detect a target flame size of 60*60 pixels under 1080P resolution · Capable of detecting a 60x60px target at up to 20 meters, with performance optimized at 15 meters · POE

    Products
       FEATURE
    · 1/2.9" 6MP low illumination CMOS sensor.

    · Detect a target flame size of 60*60 pixels under 1080P resolution.

    · Capable of detecting a 60x60px target at up to 20 meters, with performance optimized at 15 meters.

    · Support two-way Audio.

    · Supports alerts via E-mail, Client Software, and Mobile App Push Notification.

    · Reset via Web Browser and Mobile App.

    · DC12V/POE,DWDR,3D DNR,Exposure Setting,Defog,IP65/IP66 Waterproof.


      APPLICATION

      Flame recognition cameras are used in various high-risk environments for early fire detection and safety monitoring, playing a vital role in protecting lives and property.

    · Industrial Equipment Safety Monitoring:
      - Monitoring chemical plants, refineries, power plants, and industrial sites to detect flames or fire hazards early, preventing explosions or serious accidents.

    · Oilfield and Storage Facility Safety Management:
      - Real-time surveillance of oil fields and storage facilities to detect flames, enhancing safety warning capabilities.

    · Coal Mine Safety:
       - Monitoring underground coal mines for flames or sparks to prevent underground fires.

    · Warehousing and Storage Areas:
      - Detecting flames in warehouses and storage sites to identify fires early and reduce losses.

    · Power Plants and Substations:
      - Monitoring equipment and areas around power stations for flames, enabling quick response to fire outbreaks.

    · Natural Gas and Liquefied Gas Sites:
      - Real-time detection of flames to ensure safety and reduce the risk of gas leaks causing fires.

    · Outdoor Environment Monitoring:
      - Monitoring forests, grasslands, and wild areas for flames to provide early warnings of forest fires.

    · Emergency Response and Firefighting Support:
      - Providing real-time fire location data during fire emergencies to assist firefighting efforts.

    · Safety Inspections in High-Risk Areas:
      - Regularly monitoring high-risk zones to ensure no flames are present, ensuring safe operation.
    Model Number 80BG601LFA2-PTBR-FI
    System
    System Processor Embedded Linux, ARM Cortex-A7 MP2 Processor,1 TOPS Computing Power.
    Image Sensor 1/2.9" low illumination CMOS sensor GC4023
    Min. Illumination 0.0002Lux(IR ON)
    Lens
    Lens Type 6mm Fixed Lens @F1.6
    Lens Resolution 6MP
    Illuminator
    Light Distance Warm Light 60m,IR Light 80m
    IR LEDs 6pcs Hybrid Light
    Day & Night Mode Hybrid Light Mode/ Infrared Mode/ Full Color Mode
    Video
    Max. Image Resolution 6MP(3200x1800)
    Video Compression H.265/H.264
    Frame Rate( Main Stream:25fps:3200x1800,2880x1620,2560x1440,2304x1296,1920x1080Secondary Stream:25fps:720x576,720x480,704x576,640x360,640x480,512x288,352x288
    Video Bit Rate Main Stream:256~8192Kbps,default 3072KbpsSecondary Stream:68~1024Kbps,default 682Kbps
    Image Settings Support Brightness,contrast,saturation,and sharpness adjustment
    WDR DWDR
    Synchronization Inter-Sync
    SNR 47.8dB
    Noise Reduction 3D NR
    Defog Support
    Exposure Setting Auto
    General Features Time Configruration, OSD Configuration,Privacy Masking,Log Management
    Audio
    Audio Input Support, built-in microphones
    Audio Output Support, built-in speaker
    Audio Compression G.711A/U
    Network
    Network Connection Mode Wired
    Networking Protocol HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS
    Interface Protocol(API) ONVIF,GB28181
    Web Access Support IE8[$add],Chrome18[$add],Firefox5.0[$add],Safari5.02[$add]browser,support Chinese and English
    Simultaneous Preview Channels A maximum of 16 concurrent streams per client
    Event
    Flame Detection Detect a target flame size of 60*60 pixels under 1080P resolution.
    Capable of detecting a 60x60px target at up to 20 meters, with performance optimized at 15 meters.
    Smart Event Motion Detection(human), Intrusion Detection, Tripwire Detection
    Linkage Supports alerts via E-mail, Client Software, and Mobile App Push Notification.
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    On-Board Storage Support, Max 512GB SD card
    Alarm YES
    RS-485 YES
    Reset No
    General
    User Management Supports up to 12 users with 3-level permissions: Administrator, Operator, and Guest.
    Restore Factory Settings Reset via Web Browser and Mobile App
    Power Supply DC12V±10% /POE
    Power Consumption <6.6W
    Surge Protection 4KV
    Housing Metal Bullet
    Weather Proof IP66
    Working Temperature -20 °C to 60 °C
    Working Humidity 10%-90% (Non-condensing)
