80B 4G Flame Detection Camera

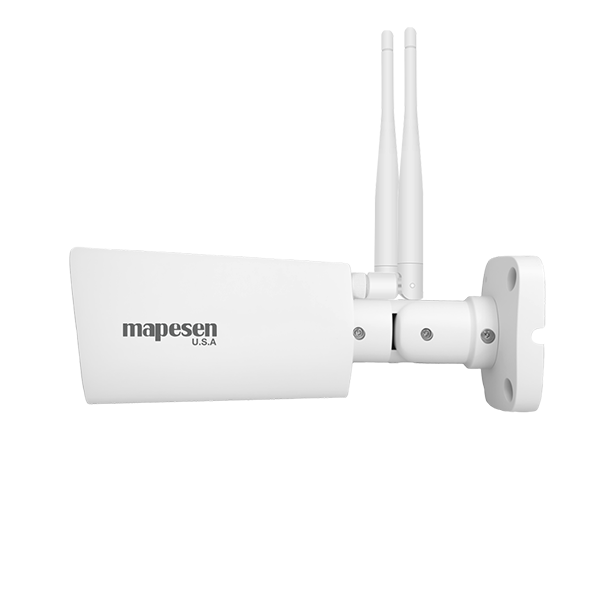

6MP 4G Flame Detection Sentrust Network Bullet Camera

4G · 6MP · Efficient H.265+ Compression Technology · Detect a target flame size of 60*60 pixels under 1080P resolution · Capable of detecting a 60x60px target at up to 20 meters, with performance optimized at 15 meters

    Products
       FEATURE

    · 4G, Cable Free, Place Anywhere.
    · 1/2.9" 6MP low illumination CMOS sensor.

    · Detect a target flame size of 60*60 pixels under 1080P resolution.

    · Capable of detecting a 60x60px target at up to 20 meters, with performance optimized at 15 meters.

    · Support two-way Audio.

    · Supports alerts via E-mail, Client Software, and Mobile App Push Notification.

    · Reset via Web Browser and Mobile App.

    · DC12V,DWDR,3D DNR,Exposure Setting,Defog,IP65/IP66 Waterproof.


      APPLICATION

      Flame recognition cameras are used in various high-risk environments for early fire detection and safety monitoring, playing a vital role in protecting lives and property.

    · Industrial Equipment Safety Monitoring:
      - Monitoring chemical plants, refineries, power plants, and industrial sites to detect flames or fire hazards early, preventing explosions or serious accidents.

    · Oilfield and Storage Facility Safety Management:
      - Real-time surveillance of oil fields and storage facilities to detect flames, enhancing safety warning capabilities.

    · Coal Mine Safety:
       - Monitoring underground coal mines for flames or sparks to prevent underground fires.

    · Warehousing and Storage Areas:
      - Detecting flames in warehouses and storage sites to identify fires early and reduce losses.

    · Power Plants and Substations:
      - Monitoring equipment and areas around power stations for flames, enabling quick response to fire outbreaks.

    · Natural Gas and Liquefied Gas Sites:
      - Real-time detection of flames to ensure safety and reduce the risk of gas leaks causing fires.

    · Outdoor Environment Monitoring:
      - Monitoring forests, grasslands, and wild areas for flames to provide early warnings of forest fires.

    · Emergency Response and Firefighting Support:
      - Providing real-time fire location data during fire emergencies to assist firefighting efforts.

    · Safety Inspections in High-Risk Areas:
      - Regularly monitoring high-risk zones to ensure no flames are present, ensuring safe operation.

     Model Number

    80BAI60LFA2-TBA-FI-4G

    System

    System Processor

    Embedded Linux, ARM Cortex-A7 MP2 Processor,1 TOPS Computing Power.

    Image Sensor

    1/2.9" low illumination CMOS sensor GC4023

    Min. Illumination

    0.0002Lux(IR ON)

    Lens

    Lens Type

    6mm Fixed Lens @F1.6

    Lens Resolution

    6MP

    Illuminator

    Light Distance

    Warm Light 60m,IR Light 80m

    IR LEDs

    6pcs Hybrid Light

    Day & Night Mode

    Hybrid Light Mode/ Infrared Mode/ Full Color Mode

    Video

    Max. Image Resolution

    6MP(3200x1800)

    Video Compression

    H.265/H.264

    Frame Rate(

    Main Stream:

    25fps:3200x1800,2880x1620,2560x1440,2304x1296,1920x1080

    Secondary Stream:

    25fps:720x576,720x480,704x576,640x360,640x480,512x288,352x288

    Video Bit Rate

    Main Stream:256~8192Kbps,default 3072Kbps

    Secondary Stream:68~1024Kbps,default 682Kbps

    Image Settings

    Support Brightness,contrast,saturation,and sharpness adjustment

    WDR

    DWDR

    Synchronization

    Inter-Sync

    SNR

    47.8dB

    Noise Reduction

    3D NR

    Defog

    Support

    Exposure Setting

    Auto

    General Features

    Time Configruration, OSD Configuration,Privacy Masking,Log Management

    Audio

    Audio Input

    Support, built-in microphones

    Audio Output

    Support, built-in speaker

    Audio Compression

    G.711A/U

    Network

    Network Connection Mode

    4G

    Networking Protocol

    HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS

    Interface Protocol(API)

    ONVIF,GB28181

    Web Access

    Support IE8[$add],Chrome18[$add],Firefox5.0[$add],Safari5.02[$add]browser,support Chinese and English

    Simultaneous Preview Channels

    A maximum of 16 concurrent streams per client

    Event

    Flame Detection

    Detect a target flame size of 60*60 pixels under 1080P resolution.

    Capable of detecting a 60x60px target at up to 20 meters, with performance

    optimized at 15 meters.

    Smart Event

    Motion Detection(human), Intrusion Detection, Tripwire Detection

    Linkage

    Supports alerts via E-mail, Client Software, and Mobile App Push Notification.

    Interface

    Ethernet Interface

    1 RJ45 10M/100M self-adaptive Ethernet port

    On-Board Storage

    Support, Max 512GB SD card

    Audio

    YES, Supports external amplifier

    Alarm

    YES

    RS-485

    No

    Reset

    No

    Antenna

    2PCS

    General

    User Management

    Supports up to 12 users with 3-level permissions: Administrator, Operator, and Guest.

    Restore Factory Settings

    Reset via Web Browser and Mobile App

    Power Supply

    DC12V±10%

    Power Consumption

    <6.6W

    Surge Protection

    4KV

    Housing

    Metal Bullet

    Weather Proof

    IP66

    Working Temperature

    -20 °C to 60 °C

    Working Humidity

    10%-90% (Non-condensing)
