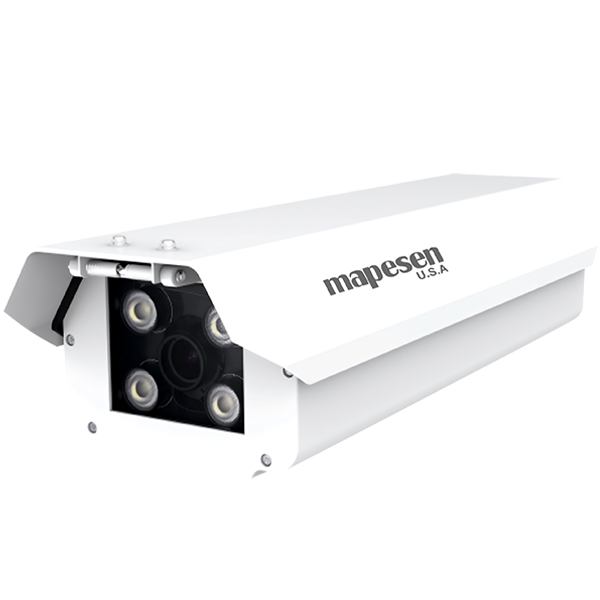

LPR-H3KP500M4-T

5.0MP License Plate Recognized Network Camera Ai 15 Inch

Vehicle License Plate Capture · License Plate Record · License Plate Recognition · mbedded with Intelligent ISP Algorithms · Intelligent Light Adjustment · Automatic Adaptation to Complex Scenarios
    Products
    · The all-day vehicle-capturing rate is greater than 95%.
    · Full-day license plate recognition rate is higher than 97%.
    · Maximum resolution of pictures is 3200*1800.
    · Leverage video compression technology H.264 for video encoding, and JPEG encoding for capture frame.
    · Support TF card storage.
    · Support local recording on PC.
    · Support three detection modes: coil detection, video detection, coil detection + video detection.
    · Support OSD information overlay function and video/picture overlay watermark.
    · Support radar access.
    · Support configuration file import backup.
    · Support reset by manually pressing buttons, and restore initial IP address, user name, password and ex-factory default settings with one click;
    · Surge protection level: 6KV (exceeding national standard level 4).
    License plate recognition type: Able to recognize license plates of Taiwan of China,Hong Kong of China,Macau of China, Brazil,Singapore, Vietnam, Malaysia, Europe, Thailand,Chile, Colombia, South Africa, Dubai, etc.
    This integrated HD infrared recognition camera can capture pictures and recognize license plates. Users can directly view pictures with the browser or client software, and the authorized users can also set up the system through controlling the online capturing machine. They can be widely used in monitoring the vehicles accessing traffic block ports, and have become an efficient assistant of modern traffic management.
    Model Number LPR-H3KP500M4-T
    Video
    Processor ARM processor, embedded with intelligent ISP algorithms, intelligent light adjustment, and automatic adaptation to complex scenarios
    Basic Configuration Embedded intelligent ISP algorithmAble to intelligently optimize the dimming algorithm, and intelligently adapt to complex scenarios.Basic parameters (brightness/definition/gain/ exposure time) can be set independently.
    Image Sensor 5MP starlight CMOS
    Video Compression Standard H.264/MJPEG
    Imaging Resolution 3200x1800
    Video Resolution 352x28@25fps,704x576@25fps,1280x720@25fps,1920x1080@25fps
    Compress the Output Bitrate 384Kbps~4Mbps
    Image Setting Brightness, gain, and exposure time
    Noise Reduction 2D/3D DNR
    Min. Illumination 0.1Lux Color (infrared fill light in the night)
    Electronic Shutter 0-10ms, default 5ms
    OSD Support OSD information overlay function and video/picture overlay watermark
    Ai License Plate Recognition
    Comprehensive Recognition Rate ≥ 97%
    Large-Angle Stable Recognition Rate ≥ 97%
    Unlicensed Vehicles Detection Rate ≥ 95%
    Anti-counterfeiting Rate ≥ 99%
    Vehicle Speed 130KM/h
    Lane Management Dual-Lane
    Recognition Distance 25-35m
    Recognition Angle Maximum 65° left/right, maximum 60° up/down
    License Plate Recognition Type Able to recognize license plates of Taiwan of China,Brazil, Singapore, Vietnam, Malaysia, Europe,Thailand, Hong Kong of China, Macau of China,Chile, Colombia, South Africa, Dubai, etc.
    Vehicle Structured Information Vehicle identification by model, car model, body color and other vehicle characteristics
    License Plate Recognition Features Number, Color, Type, Width
    License Plate Whitelist Support for precise and intelligent fuzzy matching of whitelisted license plate rules
    Smart Calibration Support precise or wildcard-based matching with intelligent calibration of license plate numbers, types and colors
    License Plate Capture
    License Plate Capture Real-time video license plate capture, TF card storage, PC upload
    Comprehensive Capture Rate ≥ 95%
    Capture Image Resolution 3200x1800
    Detection Modes Support three detection modes: coil detection, video detection, coil detection [$add] video detection
    Interface
    IO Output 2CH
    IO Input 4CH (the default switch quantity to switch different level signals)
    Power Supply 1CH
    RJ45 Interface 1CH 10/100Mbps self-adaptive
    485 Interface 2CH, non-isolated differential half-duplex interface with maximum supported baud rate of 115200, support Radar RS485 access
    USB Reserve the seat at the 4pin_1.25 spacing
    Reset 1CH Reset key, Support reset by manually pressing buttons, and restore initial IP address, user name,password and ex-factory default settings with one click.
    System indicator 1CH GPIO status indicator
    Power indicator 1CH power indicator
    TF Interface 1 TF card slot with the maximum 64G volume available.
    Protocol
    Communication Protocol SKD,HTTP,MQTT,ONVIF,RTSP,TCP/IP,UDP,NTP,DHCP
    FTP Upload Images Support to upload captured images to the server via FTP
    HTTP Push Support, support upload recognition results, offline retransmission
    ONVIF Protocol ONVIF, Compatible with Hikvision, Dahua and Other Mainstream NVR
    SKD Development Provide Windows/Linux/Android Environment Development SDK, Support VB, C#, C[$add][$add], Delphi Development Language.
    API Protocol Supports API Interfaces based on TCP, HTTP,MQTT and Other Protocols.
    Networking
    Offline Networking Cameras automatically form operational networks without host computers or servers
    Offline Billing Able to set billing rules according to the vehicle type, duration, frequency, time period and time ladder.
    BlackList and Whitelist Work with strategy to meet vehicle hierarchy management
    Primary and Secondary Cameras Multiple cameras can be added to the same entrance/exit, such as one primary and one secondary,which can be applicable to scenarios with the big angler wide entrance/exit
    Screen Display Protocol Able to be connected to mainstream brand LED screens, and output recognition\billing results
    Management
    Management Protocol PC/Mobile management, PC management tool, SKD development suites, HTTP push
    Cloud Management Remotely manage a single camera, uniformly manage multiple cameras through the account, and support the cloud SDK development management platform
    General
    Fill Light Built-in 4PCS infrared LED fill light with adjustable brightness
    Lens 5-50mm Motorized Lens
    POE No
    Storage Support, Max 64GB TF card
    Power DC 12V
    Power Consumption ≤5W
    Surge Protection 6KV
    Working Temperature -35 °C to 75°C
    Working Humidity 10%-85% (Non-condensing)
    Overall Dimensions Shell size 15” Guard,443x146x105mm
    Waterproof IP65
