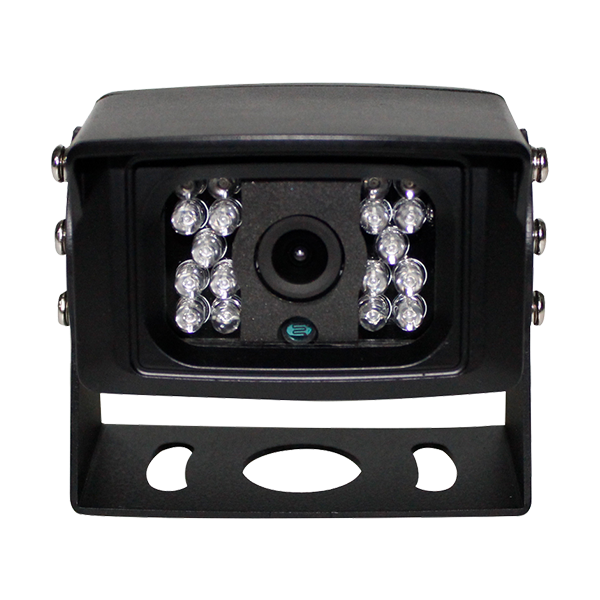

C2AQ200YA-C

2MP Indoor and Outdoor Network Car Camera Front View / Rear View

Front View / Rear View · 2MP 1080P Full HD · 1.8mm Fisheye Lens · Audio Support · 0.005Lux Low Light · H.265/H.264 Compression · Digital WDR · 3D DNR · ONVIF / GB28181 · 6P Aviation Connector · Web Access · Metal x-man,IP67/68K.
    Products
    · IP 2MP Indoor and Outdoor Car Camera Front View / Rear View
    · 1.8mm Fisheye Lens,Metal x-man,IP67/68K.
    · 2MP 1080P high-resolution camera captures clear and stable video for vehicle surveillance.
    · Ultra-sensitive 0.005Lux low-light performance with 18 IR LEDs for 15–20m night vision.
    · Advanced H.265/H.264 coding effectively saves storage space and reduces bandwidth consumption.
    · Built-in microphone achieves synchronous audio and video recording for full‑scope monitoring.
    · AI-powered human detection delivers high accuracy and significantly reduces false alarms.
    · Digital WDR and 3D DNR technologies maintain clear imaging even under strong backlight.
    · Compatible with ONVIF, GB28181 and multiple protocols for seamless connection to vehicle NVRs.
    · Heavy-duty metal shell, 6P aviation connector and 6KV surge protection ensure high reliability.
    · HTML5 plug‑free web access enables easy and flexible remote monitoring anytime, anywhere.
    · Wide operating temperature (-10°C to 50°C) ensures stable performance in all weather conditions.
    · Comprehensive functions: motion detection, privacy mask and customizable OSD settings.
    Model Number C2AQ200YA-C
    Camera
    Image Sensor 1/2.9" low illumination CMOS sensor
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    Shutter Time 1/30(1/25)
    Lens
    Focal Length 1.8mm
    Lens Type Fisheye Lens
    Illuminator
    Light Distance 15~20m
    IR LEDs 18cs Infrared LEDs
    Day & Night Mode Infrared Mode: B/W
    Video
    Max. Image Resolution 2MP(1920*1080)@25fps
    Video Compression S.265/H.265/H.264
    Frame Rate Main Stream: 2MP(1920*1080@25fps/30fps)Sub-Stream: D1(720*576),864*480,VGA(640*360),Q720P(640*360),CIF(352*288),320*240
    Video Bit Rate 16Kbps-4000Kbps support self-adjustable as needed
    Image Settings Brightness,contrast,saturation,sharpness,chroma adjustable
    WDR Digital WDR(Off/Low/Middle/High)
    Noise Reduction 3D DNR (Off/Low/Middle/High)
    Mirror Off/horizontal mirror/vertical mirror/180° flip
    Character Overlay(OSD) Multi-line OSD with Customizable Color,Customizable OSD Overlays (Title, Time, Date)
    Audio
    Audio Input Support, built-in microphone
    Audio Output No
    Audio Compression G.711U/A 64Kbps
    Network
    Network Interface 1*6P Vehicle Aviation Connector
    Networking Protocol TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP
    Connection Protocol SLINK,ONVIF,GB28181(optional)
    P2P NO(Via NVR)
    PC Support
    Web Access Support HTML5 remote login operation(Free plug-in)
    Preview Simultaneously Video Number 2
    Device Abnormal Inspection Support network broken alarm, IP conflict alarm, illegal visiting alarm
    Security Mode Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification
    Event
    Alarm Motion Detection Alarm, AI Humanoid Detection Alarm
    Basic Event
    Motion Detection Set detection area,can set multi-level sensitivity
    Privacy Mask Alarm Support 1 area
    Privacy Mask Support 4 area
    Smart Event
    Human Detection It can detect target ≤5-10 persons at the same time
    Humanoid pixel ≥40X40
    Detection Ratio ≥99%(meet above requirement)
    Capture Corresponding Speed ≤1s
    Support specified area detection, default full screen
    Error detection rate 2% or less
    Maximum detection frame rate is 5fps /s
    Interface
    Video Output 1*6P Vehicle Aviation Connector
    On-Board Storage No
    General
    Power Supply DC12V±10%
    Power Consumption Max 6W
    Surge Protection 6KV
    Housing Metal Housing
    Working Temperature -10 °C to 50 °C
    Working Humidity 0%-90% (Non-condensing)
