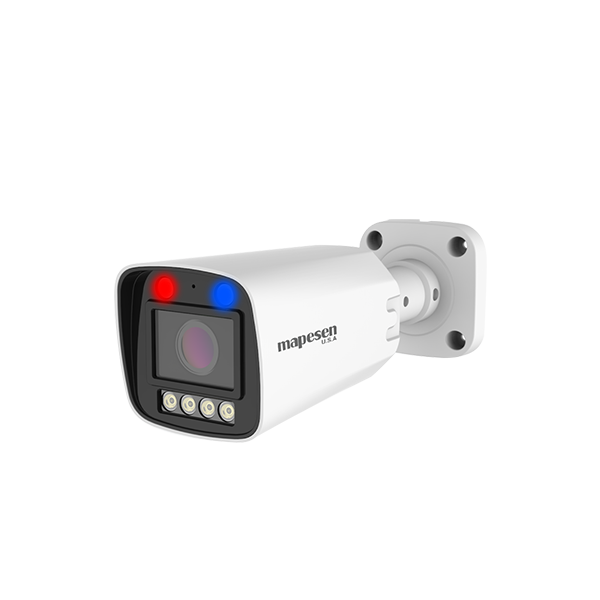

4K H.265 POE License Plate Recognition Sentrust Bullet Camera
FEATURE
· High quality imaging with 4K resolution.
· Auto-focuses and zooms on vehicles for clearer plate recognition.
· Supported LPR Algorithms: Multi-national (incl. CN, EU, US, JP, KR, TW¹, TR, BR, SG, TH, IN, PH, etc.),as well as Customization supported.
· Recognition Speed Max 40KM/H.
· Recognition Distance: Automatic license plate recognition and capture within 5-25meters.
· Support White and Black List.
· Real-time video license plate capture, TF card storage, PC upload
· Support two-way Audio,and equipped with an audio output for external amplifiers.
· Automatic red-blue light alarm and system linkage triggered by blacklisted license plates.
· Supports alerts via E-mail, Client Software, and Mobile App Push Notification.
· DC12V / POE,DWDR,3D DNR,Exposure Setting,Defog,IP66 Waterproof.
APPLICATION
Low-speed license plate recognition cameras are widely used in various scenarios requiring vehicle access control, toll collection, tracking, and security monitoring.
They are vital devices for traffic management and smart cities.
· Parking Lot Management:
- Automatically recognizing license plates of vehicles at parking entrance and exit points to enable parking space management, access control, and automated billing.
· Community and Office Building Entrances:
· Recognizing vehicles in residential areas and business districts to allow automatic passage or record vehicle information, improving traffic flow.
· Highway Toll Stations:
- Recognizing license plates on slow lanes or non-high-speed lanes to assist with toll collection or access management.
· Logistics and Warehousing Sites:
- Identifying license plates of logistics vehicles for managing entry and exit, as well as vehicle tracking.
5. Industrial Parks:
- Monitoring vehicles entering and leaving industrial zones to ensure security and improve management efficiency.
· Public Security Monitoring:
- Recognizing suspicious vehicles to support law enforcement and security efforts.
· Traffic Law Enforcement and Violations Monitoring:
- Detecting vehicles that are stationary or moving slowly to address illegal parking and other traffic violations.
· Bridge and Tunnel Entrances:
- Recognizing passing vehicles to support traffic scheduling and management.
|
Model Number |
80BAI80SM5A2-PTBA-LPR |
|
System |
|
|
System Processor |
NT98528 |
|
Image Sensor |
1/2.8" SONY IMX415 low illumination CMOS sensor |
|
ROM |
256M |
|
RAM |
512M |
|
Min. Illumination |
0Lux(IR ON) |
|
Lens |
|
|
Lens Type |
3.3~10.5mm Motorized Lens @F1.6~3.1 |
|
Lens Resolution |
8MP |
|
Illuminator |
|
|
Light Distance |
Warm Light 60m,IR Light 80m |
|
IR LEDs |
4pcs Hybrid Light Core[$add]2pcs Strobe Warning Light LEDs |
|
Day & Night Mode |
Hybrid Light Mode/ Infrared Mode/ Full Color Mode |
|
Video |
|
|
Max. Image Resolution |
8MP(3840x2160) |
|
Video Compression |
H.265/H.264 |
|
Frame Rate |
Main Stream: Secondary Stream: Sub-Stream: |
|
Video Bit Rate |
Main Stream: 256~8192Kbps,default 4096Kbps Secondary Stream: 16~1024Kbps,default 682Kbps |
|
Image Settings |
Support Brightness,contrast,saturation,and sharpness adjustment |
|
WDR |
HDR (DWDR) |
|
Synchronization |
Inter-Sync |
|
Noise Reduction |
3D NR |
|
Defog |
Support |
|
Exposure Setting |
Auto |
|
General Features |
Time Configruration, OSD Configuration,Privacy Masking,Log Management,Video Occlusion Alarm,Defocus Detection |
|
Audio |
|
|
Audio Input |
Support, built-in microphones |
|
Audio Output |
Support, built-in speaker |
|
Audio Compression |
G.711A/U |
|
Network |
|
|
Network Connection Mode |
Wired |
|
Networking Protocol |
HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS |
|
Interface Protocol(API) |
ONVIF,GB28181 |
|
Web Access |
Support IE8[$add],Chrome18[$add],Firefox5.0[$add],Safari5.02[$add]browser,support Chinese and English |
|
Simultaneous Preview Channels |
A maximum of 16 concurrent streams per client |
|
Event |
|
|
Smart Event |
Motion Detection(human), Intrusion Detection, Tripwire Detection, |
|
Linkage |
Supports alerts via E-mail, Client Software, and Mobile App Push Notification. |
|
License Plate Recognition |
|
|
License Plate Mode |
Auto-focuses and zooms on vehicles for clearer plate recognition. |
|
License Plate Recognition |
Supported LPR Algorithms: Customization: Supported |
|
Recognition Speed |
40KM/h |
|
Recognition Distance |
Automatic license plate recognition and capture within 5-25meters |
|
Vehicle Structured Information |
Vehicle identification by license plate number |
|
License Plate Recognition Features |
Number |
|
White&Black List |
Support |
|
License Plate Capture |
|
|
License Plate Capture |
Real-time video license plate capture, TF card storage, PC upload |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
On-Board Storage |
Support, Max 512GB SD card |
|
Alarm |
YES |
|
RS-485 |
NO |
|
Audio |
YES |
|
Reset |
No |
|
General |
|
|
User Management |
Supports up to 12 users with 3-level permissions: Administrator, Operator, and Guest. |
|
Power Supply |
DC12V±10% /POE |
|
Power Consumption |
<10W |
|
Surge Protection |
4KV |
|
Housing |
Metal Bullet |
|
Weather Proof |
IP66 |
|
Working Temperature |
-20 °C to 60 °C |
|
Working Humidity |
10%-90% (Non-condensing) |
|
Application Scenarios |
Parking Lot, Low-Speed Lane, Entrance /Exit Gate |
|

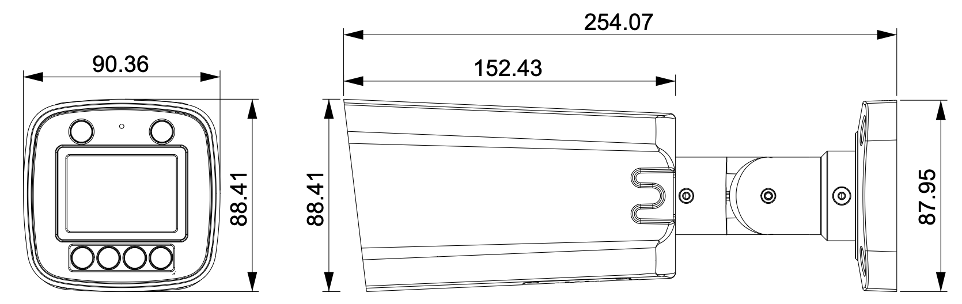

Overall Dimension Drawing |
