POE2-G08XF2-L2-NP250

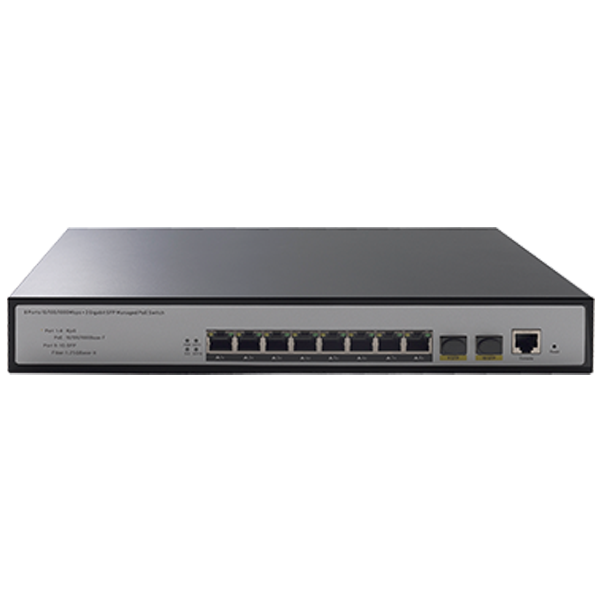

8+2+1 Gigabit Layer 2 Managed POE Switch (Built In Power)

8+2+1 L2 Managed PoE · 8xGigabit PoE,2xSFP,1xConsole · IEEE 802.3af/at · 30W/Port · 20Gbps Capacity · L2 Full Management · Loop Prevention · Multi-Security Protection · Link Aggregation · Multi-Mode Management · Wide Temperature · Built-in Power & Fan · IP30 Protected · Rack/Desktop Mount
    Products
    ·  8+2+1 Gigabit Layer 2 Managed POE Switch (Built In Power)
    ·  POE Port: 8 x 1000Mbps adaptive RJ45 ports.
    ·  Uplink Port: 2x 1000Mbps SFP Ports+1x Console Port.
    ·  1-8 POE Standard: IEEE 802.3af/at.
    ·  1-8PoE single port maximum power 30W .
    ·  Switching Capacity: 20Gbps.
    ·  Layer 2 management Features,support routing,DHCP,VLAN,MAC address binding,ACL access control,Qos,multicast,storm suppression,and IPv4/IPv6 services.
    ·  Supports STP/RSTP/MSTP spanning tree protocols for loop prevention,with rapid detection and self-healing capabilities.
    ·  Supports 802.1X authentication,ARP intrusion detection,IP source Guard,Dos protection and other security control policies,with dynamic/static link aggregation for network redundancy.
    ·  Management：Web GUI/Telnet/Command Line Interface(CLI),and SSH.
    ·  Operating Temperature: -20℃～55℃(wide temperature range).
    ·  Power Supply : Built-in 120W/250W,with Fan
    ·  IP 30,Installation Options: Desktop or 1U rack-mountable.
    Model Number POE2-G08XF2-L2-NP250
    Product Introduction
    · 8 Gigabit RJ45 ports [$add] 2 Gigabit SFP uplink slots.
    · Ports 1–8 support IEEE 802.3af/at PoE, up to 30W per port.
    · All ports with 4KV surge protection. Auto-detects and powers PoE devices including APs, IP cameras, IP phones and video intercoms.
    · Ideal for high-density PoE applications in hotels, campuses, industrial parks, supermarkets, banks, scenic spots, factory dormitories and SMBs.
    · Features L2[$add] management, IPv4 static routing, comprehensive security, ACL/QoS and rich VLAN functions.
    · Supports STP/RSTP/MSTP (<50ms) and ERPS (<20ms) for link redundancy and reliable transmission.
    · Configurable via Web, CLI, SNMP and Telnet for PoE management, rate control, VLAN, QoS, LACP, IGMPand DHCP.
    Product Features
    · Up to 30W per PoE port, af/at auto-sensing; remote PoE reboot & real-time power monitoring
    · 2 SFP uplinks for long-haul fiber transmission, ring/chain network expansion.
    · Full Gigabit, port rate control, 10M/250m long-distance transmission.
    · Enterprise-class chip, high backplane, large buffer for less congestion.
    · Automatic MAC learning & aging, Auto MDI/MDI-X.
    · 4KV surge protection, PoE short-circuit & overload protection.
    · Rugged metal housing, anti-interference, efficient heat dissipation, rustproof.
    Software Features
    Powerful Service Capabilities 128 IPv4 static routes, up to 1024 ARP entries
    Flexible bandwidth control, fiber DDM diagnostics
    IEEE 802.1Q, protocol VLAN, QinQ
    QoS: port/802.1P/DSCP priority; Equ/SP/WRR/SP[$add]WRR scheduling
    ACL with packet filtering and time-based policies
    IGMP v1/v2 & IGMP Snooping v1/v2/v3 for HD video
    STP/RSTP/MSTP & ERPS for loop prevention and link redundancy
    Static & LACP aggregation for higher bandwidth reliability
    Comprehensive Security Features Web user authentication.
    CPU protection against traffic attacks.
    802.1X, RADIUS, TACACS[$add] authentication.
    Hardware-based IP/MAC ACL, port filtering, multi-parameter binding.
    DHCP Snooping, port isolation, broadcast storm control.
    Easy Operation & Maintenance Web, CLI (Console/Telnet), SNMP v1/v2c/v3.
    HTTPS & SSH encryption.
    HTTP/TFTP firmware upgrade, config upload/download, one-click restore.
    RMON, system log, traffic statistics.
    LLDP for link status detection.
    CPU/memory monitoring, Ping & cable diagnostics.
    Technical Parameters
    Network Port
    Downlink Ports 8 ports
    Uplink Ports(Ethernet) 2 ports
    Console Port 1 ports
    POE Port 1-8 supports af/at standard PoE power supply, Transmission distance 100-250 meters
    Network port characteristics 1-8 ports 10/100/1000M adaptive, full/half duplex MDI/MDI-X adaptive
    Transmission Distance
    Twisted pair transmission 10BASE-T: Cat3,4,5 UTP(≤250 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter)1000BASE-T: Cat5e or later UTP(≤100 meter)
    SFP Port depends on the optical moduleMulti-mode Fiber: 850nm/0-550M, 50μm/125μm&62.5μm/125μmSingle-mode Fiber: 1310nm/0-40KM, 1550nm/0-120KM. 9.5μm/125μm
    Transmission Medium(Ethernet) Cat5/5e/6 standard network cable
    Power Over Ethernet
    Power Input Built in AC switch power supply AC: 100-240V 50-60Hz 2.0A
    POE Standard 1-8 Port IEEE802.3af / IEE802.3at
    Power Pins Default 1/2([$add]), 3/6(-), 4-core power supply.
    POE Total Power 250W
    Max Power Per Port 30W
    POE Management Per-port PoE enable/disable & reset, per-port PoE status and real-time PoE power monitoring.
    Power Consumption Standby: <8W, Full load: <250W
    Network Switch
    Network Management Type L2[$add] network management
    Protocol Standard IEEE802.3 10BASE-T；
    IEEE802.3i 10Base-T
    IEEE802.3u 100Base-TX
    IEEE802.3x Flow Control
    IEEE802.3ab 1000Base-T
    IEEE802.3z 1000Base-X
    IEEE 802.3ad port trunk with LACP
    IEEE 802.1D Spanning Tree protocol
    IEEE 802.1w Rapid Spanning Tree protocol
    IEEE 802.1s Multiple Spanning Tree protocol
    IEEE 802.1p Class of serviceIEEE 802.1Q VLAN tagging
    IEEE 802.1x Port Authentication Network Control
    IEEE 802.1ab LLDP
    IEEE 802.3af DTE Power via MDI
    IEEE 802.3at DTE Power via MDI
    CPU 500MHz
    DRAM 1Gbits
    FLASH 128Mbits
    Forwarding Mode Store-and-forward (wire-speed forwarding)
    Backbone Bandwidth 20Gbps (no blocking)
    Packet Forwarding Rate 14.88Mpps
    MAC Address Table 8K
    Packet Forwarding Cache 4.1Mbits
    Jumbo Frame 10Kbytes
    LED Indicators Power: PWR (Green), System: SYS (Green) ,Link/Activity: L/A (Green),PoE: PoE (Yellow), SFP: SFP (Green)
    Factory Reset Button 1 button, press and hold for 6 seconds to restore factory settings
    MTBF 100,000 hours
    Software Specification
    Ports IEEE 802.3x flow control (full-duplex), half-duplex backpressure Port mode & rate forcing Broadcast & port storm control Port rate limiting: 16Kbps–1Gbps Real-time port flow control (Flow Interval) Jumbo frames up to 16KB Fiber port DDMI diagnostics
    IP Routing L2[$add] management IPv4 static/default routes, max 128 entries ARP support, max 1024 entries
    VLAN Port-based VLAN (4K), IEEE 802.1Q Protocol-based VLAN Port modes: Access / Trunk / Hybrid
    Link Aggregation Static & LACP dynamic aggregation Up to 5 groups, 8 ports per group
    Loop Protection Loop protectionSTP/RSTP/MSTPERPS ring (single/multi/intersect/tangent), self-healing < 20ms
    Multicast IGMP Snooping v1/v2/v3, up to 1024 multicast groups
    Mirroring Bidirectional port mirroring
    QoS Port/802.1P/DSCP/ToS priority, 8 egress queues per port Scheduling: Equ/SP/WRR/SP[$add]WRR Priority Mark/Remark Flow-based rate limiting, packet filtering, redirection
    ACL L2–L4 packet filtering, matches first 80 bytes; ACL based on MAC, IP, protocol, TCP/UDP port, VLANACL assignment to ports and VLANs
    Security User role management & password protection Port-based IEEE 802.1X authentication AAA/RADIUS & TACACS[$add] MAC learning limit, blackhole & binding SSH 2.0 encrypted login Port isolation ARP rate limiting IP source guard & ARP inspection DoS attack defense Port broadcast suppression Configuration backup & restore IP[$add]MAC[$add]VLAN[$add]Port 4-element binding
    DHCP DHCP Server DHCP Client DHCP Snooping v1/v2/v3
    Management & Maintenance Web, CLI (Console/Telnet), SNMP v1/v2c/v3; HTTP/HTTPS HTTP/TFTP file management RMON Groups 1,2,3,9 One-click factory reset NTP & local clock Local log & SYSLOG Ping & cable diagnostics Real-time CPU monitoring LLDP NMS cluster management (LLDP[$add]SNMP)
    System Requirements Web Browsers: Firefox ≥2.5, Chrome ≥42Cat5e or higher Ethernet cableTCP/IP network adapter & OS (Windows,Linux,macOS)
    General
    Casing Metal
    Installation Desktop & Rack-mount Installation
    Lightning / Protection Level Port surge: 4KV 8/20μs, Ingress Protection: IP30
    Operating Humidity 5% to 90% RH (non-condensing)
    Storage Humidity 5% to 95% RH (non-condensing)
    Operative Temperature -20℃~[$add]55℃
    Storage Temperature -40℃~[$add]75℃
    Dimensions 280mm×190mm×45mm
    Weight N.W. <2.1 kg, G.W. <2.5KG
