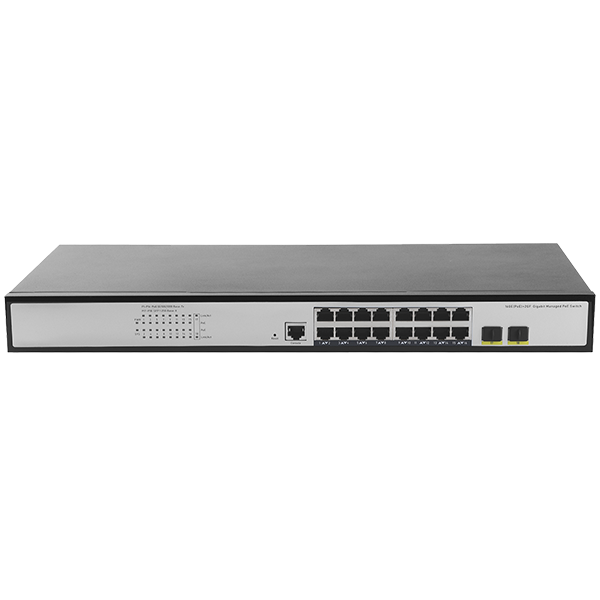

POE2-G16XF2-L2-NP250

16+2+1 Gigabit Layer 2 Managed POE Switch (Built In Power)

16+2+1 L2 Managed PoE · 16xGigabit PoE,2xSFP,1xConsole · IEEE 802.3af/at · 30W/Port · 36Gbps Capacity · L2 Full Management · Spanning Tree · Multi-Security Protection · Link Aggregation · Multi-Management Modes · Wide Temperature · Built-in 250W, Fan · P30 Grade · Rack & Desktop Mount
    Products
    ·  16+2+1 Gigabit Layer 2 Managed POE Switch (Built In Power)
    ·  POE Port: 16x 1000Mbps adaptive RJ45 ports.
    ·  Uplink Port: 2x 1000Mbps SFP Ports+1x Console Port.
    ·  1-16 POE Standard: IEEE 802.3af/at.
    ·  1-16PoE single port maximum power 30W .
    ·  Switching Capacity: 36Gbps.
    ·  Layer 2 management Features,support routing,DHCP,VLAN,MAC address binding,ACL access control,Qos,multicast,storm suppression,and IPv4/IPv6 services.
    ·  Supports STP/RSTP/MSTP spanning tree protocols for loop prevention,with rapid detection and self-healing capabilities.
    ·  Supports 802.1X authentication,ARP intrusion detection,IP source Guard,Dos protection and other security control policies,with dynamic/static link aggregation for network redundancy.
    ·  Management：Web GUI/Telnet/Command Line Interface(CLI),and SSH.
    ·  Operating Temperature: -20℃～55℃(wide temperature range).
    ·  Power Supply : Built-in 250W,with Fan
    ·  IP 30,Installation Options: Desktop or 1U rack-mountable.
    Model Number POE2-G16XF2-L2-NP250
    Network Port
    Downlink Ports 16 Ports
    Downlink Speed 10/100/1000Mbps
    Uplink Ports 2 ports SFP Ports
    Uplink Speed 10/100/1000Mbps
    POE Ports 16 Ports
    Manage Port 1 Console Port(115200,8,N,1)
    Transmission Distance
    POE Ports 1000Mbps:0-100m,10Mbps: 0-250m
    SFP Port depends on the optical moduleMulti-mode Fiber: 850nm/0-550M, 50μm/125μm&62.5μm/125μmSingle-mode Fiber: 1310nm/0-40KM, 1550nm/0-120KM. 9.5μm/125μm
    Transmission Medium(Ethernet) Cat5/5e/6 standard network cable
    Power Over Ethernet
    Power Input AC 100-240V 50/60Hz, 250W built-in power
    POE Standard 1-16 Port IEEE802.3af / IEE802.3at(POE[$add])
    POE Power Supply Type End-Span(1/2[$add] 3/6-) 4-wire power supply
    POE Total Power 250W
    Max Power Per Port 30W
    POE Management Supports per-port POE on/off/restart, real-time POE ports operating status and power display
    Power Consumption Standby: <15W, Full load: <3000W
    Network Switch
    Network Management Type L2[$add] network management
    Network Protocol IEEE802.3 10BASE-T；
    IEEE802.3i 10Base-T
    IEEE802.3u 100Base-TX
    IEEE802.3x Flow Control
    IEEE802.3ab 1000Base-T
    IEEE802.3z 1000Base-X
    IEEE 802.3ad port trunk with LACP
    IEEE 802.1D Spanning Tree protocol
    IEEE 802.1w Rapid Spanning Tree protocol
    IEEE 802.1s Multiple Spanning Tree protocol
    IEEE 802.1p Class of service
    IEEE 802.1Q VLAN tagging
    IEEE 802.1x Port Authentication Network Control
    IEEE 802.1ab LLDPIEEE 802.3af DTE Power via MDI
    IEEE 802.3at DTE Power via MDI
    CPU 500MHz
    DRAM 1Gbits
    FLASH 256Mbits
    Forwarding Mode Store-and-forward (wire-speed forwarding)
    Backbone Bandwidth 32Gbps (no blocking)
    Packet Forwarding Rate 26.78Mpps
    MAC Address Table 8K
    Packet Forwarding Cache 4.1Mbits
    Jumbo Frame 10Kbytes
    LED Indicators Power: PWR (Green) System: SYS (Green) Network: L/A (Green) PoE: PoE (Yellow) SFP: SFP (Green)
    Factory Reset Button 1 button, press and hold for 6 seconds to restore factory settings
    MTBF 100,000 hours
    Software Specification
    Ports Supports IEEE 802.3x flow control (full-duplex) and half-duplex backpressure flow controlForced port mode and rate configurationBroadcast/port storm suppressionPort rate limiting (16Kbps to 1Gbps granularity)Real-time port traffic management (Flow Interval)Jumbo frame support (up to 16K packets)SFP port DDMI (Digital Diagnostic Monitoring)
    IP Routing L2[$add] managementIPv4 static routing/default routing (128 max entries)ARP protocol support (1,024 max entries)
    VLAN Port-based VLAN (4K entries), IEEE 802.1Q VLANProtocol-based VLANPort types: Access/Trunk/Hybrid
    Link Aggregation Static & dynamic aggregation (LACP)Max 9 groups, 8 ports per group
    Loop Protection Loop preventionSTP/RSTP/MSTPERPS ring network (single/multi/tangent rings), <20ms self-healing
    Multicast IGMP Snooping v1/v2/v3 (1,024 max groups)
    Mirroring Bidirectional port mirroring
    QoS Port/802.1P/DSCP/ToS-based prioritization (8 queues/port)Scheduling: Equ/SP/WRR/SP[$add]WRRPriority marking (Mark/Remark)Flow-based rate limiting/filtering/redirection
    ACL L2-L4 packet filtering (first 80 bytes)Rules: Source/dest MAC/IP, IP protocol, TCP/UDP ports/range, VLANPort/VLAN-based ACL assignment
    Security User hierarchy & password protectionIEEE 802.1X port authenticationAAA & RADIUS/TACACS[$add]MAC address learning limit/blacklisting/bindingSSH 2.0 encryptionPort isolationARP rate limiting/IP source guard/anti-spoofingDoS protection/broadcast suppressionHost data backup/restoreIP[$add]MAC[$add]VLAN[$add]Port binding
    DHCP Server/Client/Snooping v1/v2/v3
    Management Web (HTTP/HTTPS)/CLI (Console/Telnet)/SNMP v1/v2c/v3HTTP/TFTP file transferRMON groups 1/2/3/9One-click factory resetNTP/local clockLocal/SYSLOG loggingPing diagnostics/cable checkReal-time CPU monitoringLLDPNMS cluster management (LLDP[$add]SNMP)
    System Requirements Browsers: Firefox 2.5[$add]/Chrome v42[$add]Cat5[$add] Ethernet cablesTCP/IP adapter & OS (Windows/Linux/macOS)
    Other
    Casing Metal
    Installation Rack mounting
    Port Surge Protection 4KV 8/20us
    Operating Humidity 5% to 90% RH (non-condensing)
    Storage Humidity 5% to 95% RH (non-condensing)
    Operative Temperature -20℃~[$add]55℃
    Storage Temperature -40℃~[$add]75℃
    Dimensions 440mm×190mm×45mm
    Weight N.W. <2.5KG, G.W. <3KG
