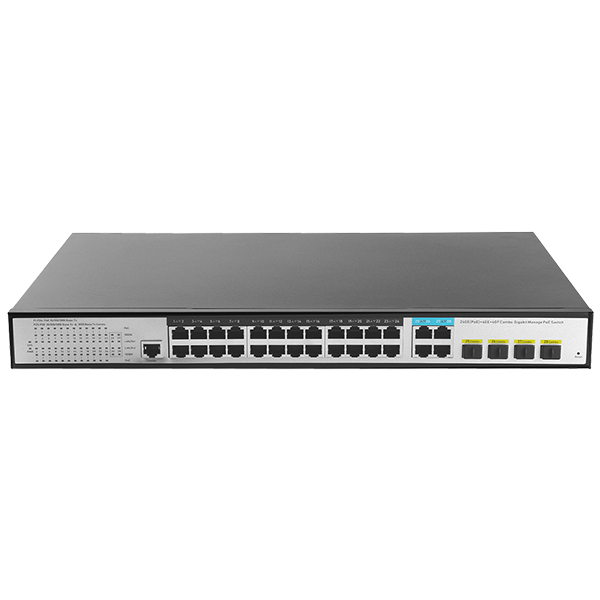

24+4+1 Combo Gigabit Layer 2 Managed POE Switch (Built In Power)
| Model Number | POE2-G24G04F4-BT-L2-NP500 |
| Product Introduction | |
| · 24 Gigabit RJ45 ports [$add] 4 combo Gigabit SFP ports. | |
| · Ports 1–4 support IEEE 802.3af/at/bt PoE, up to 90W per port; Ports 5–24 support IEEE 802.3af/at PoE, up to 30W per port. | |
| · All ports feature 4KV surge protection. Auto-detects and powers PoE devices including Aps, IP cameras, IP phones and video intercoms. | |
| · Ideal for high-density PoE applications in hotels, campuses, industrial parks, supermarkets, banks, scenic spots, factory dormitories and SMBs. | |
| · Equipped with L2[$add] management, IPv4 static routing, comprehensive security, ACL/QoS and rich VLAN functions. | |
| · Supports STP/RSTP/MSTP (<50ms) and ERPS (<20ms) for enhanced link redundancy and reliable transmission. | |
| · Configurable via Web, CLI, SNMP and Telnet for PoE management, rate control, VLAN, QoS, LACP, IGMP and DHCP. | |
| Product Features | |
| · Up to 90W per PoE port, af/at/bt auto-sensing; remote PoE reboot & real-time power monitoring. | |
| · Combo uplink ports for flexible RJ45/fiber connection & network expansion. | |
| · Full Gigabit transmission, port rate & traffic control, 10M/250m long-distance transmission. | |
| · Enterprise-class switching chip, high backplane, large buffer for reduced congestion. | |
| · Automatic MAC learning & aging, Auto MDI/MDI-X. | |
| · 4KV surge protection, PoE short-circuit & overload protection. | |
| · Rugged metal housing, anti-interference, efficient heat dissipation, rustproof. | |
| Software Features | |
| Powerful Service Capabilities | 64 IPv4 static routes, up to 1024 ARP entries Flexible bandwidth control, fiber DDM diagnostics IEEE 802.1Q, protocol VLAN, QinQ QoS: port/802.1P/DSCP priority; Equ/SP/WRR/SP[$add]WRR scheduling ACL with packet filtering & time-based policies IGMP v1/v2 & IGMP Snooping v1/v2/v3 for HD video STP/RSTP/MSTP & ERPS for loop prevention & link redundancy Static & LACP aggregation for higher bandwidth & reliability |
| Comprehensive Security Features | Web user authentication CPU protection against traffic attacks 802.1X, RADIUS, TACACS[$add] authentication Hardware IP/MAC ACL, port filtering, multi-parameter binding DHCP Snooping, port isolation, broadcast storm control |
| Easy Operation & Maintenance | Web, CLI (Console/Telnet), SNMP v1/v2c/v3 HTTPS & SSH encryption HTTP/TFTP upgrade, config backup/restore, one-click resetRMON, system log, traffic statistics LLDP for link detection CPU/memory monitoring, Ping & cable diagnostics |
| Technical Parameters | |
| Network Port | |
| Downlink Port | 24 x 10/100/1000Based-T RJ45 ports |
| Uplink Port | 4 x 10/100/1000Based-T RJ45 ports [$add] 4 x 100/1000Mbps SFP Slots(Combo Ports) |
| Manage Port | 1 Console Port(115200,8,N,1) |
| POE Port | 1-4 Ports support af/at/bt standard POE power supply, 5-24 Ports support af/at standard POE power supply, transmission distance 100-250m |
| Network Port Characteristics | 1-28 port 10/100/1000M adaptive, full/half duplex MDI/MDI-X adaptive |
| Transmission Distance | |
| Twisted Pair Transmission | 10BASE-T:Cat3,4,5 UTP(≤250 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)1000BASE-T:Cat5e or later UTP(≤100 meter) |
| SFP Port | depends on the optical moduleMulti-mode Fiber: 850nm/0-550M, 50μm/125μm&62.5μm/125μmSingle-mode Fiber: 1310nm/0-40KM, 1550nm/0-120KM. 9.5μm/125μm |
| Transmission Medium(Ethernet) | Cat5/5e/6 standard network cable |
| Power Over Ethernet | |
| Power Input | Built in AC switch power supply AC: 100-240V 50-60Hz 9.7A |
| BT POE Ports | 1-4 Port IEEE802.3af /at/bt |
| Max Power Per Port | 90W |
| POE Standard | 5-24 Port IEEE802.3af / IEE802.3at |
| Max Power Per Port | 30W |
| Power Pins | af/at: 4-pair power, default 1/2([$add]), 3/6(-) bt: 8-pair power, default 1/2, 4/5([$add]), 3/6, 7/8(-) |
| POE Total Power | 500W |
| POE Management | Per-port PoE enable/disable & reset, per-port PoE status and real-time PoE power monitoring. |
| Power Consumption | Standby: <20W, Full load: <500W |
| Network Switch | |
| Network Management Type | L2[$add] network management |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-TIEEE802.3u 100Base-TXIEEE802.3x Flow ControlIEEE802.3ab 1000Base-TIEEE802.3z 1000Base-XIEEE 802.3ad port trunk with LACPIEEE 802.1D Spanning Tree protocolIEEE 802.1w Rapid Spanning Tree protocolIEEE 802.1s Multiple Spanning Tree protocolIEEE 802.1p Class of serviceIEEE 802.1Q VLAN taggingIEEE 802.1x Port Authentication Network ControlIEEE 802.1ab LLDPIEEE 802.3af DTE Power via MDIIEEE 802.3at DTE Power via MDIIEEE 802.3bt DTE Power via MDI |
| CPU | 500MHz |
| DRAM | 1Gbits |
| FLASH | 256Mbits |
| Forwarding Mode | Store-and-forward (wire-speed forwarding) |
| Backbone Bandwidth | 56Gbps (no blocking) |
| Packet Forwarding Rate | 41.66Mpps |
| MAC Address Table | 8K |
| Packet Forwarding Cache | 4.1Mbits |
| Jumbo Frame | 10Kbytes |
| LED Indicators | Power: PWR (Green), System: SYS (Green) ,Link/Activity: L/A (Green),PoE: PoE (Yellow), SFP: SFP (Green) |
| Factory Reset Button | 1 button, press and hold for 6 seconds to restore factory settings |
| MTBF | 100,000 hours |
| Software Specification | |
| Ports | IEEE 802.3x flow control (full-duplex), half-duplex backpressure Port mode & rate forcing Broadcast & port storm control Port rate limiting: 16Kbps ~ 1Gbps Real-time port flow control (Flow Interval) Jumbo frames up to 16KB Fiber port DDMI diagnostics |
| IP Routing | L2[$add] management IPv4 static / default routes, max 64 entries ARP support, max 1024 entries |
| VLAN | Port-based VLAN (4K), IEEE 802.1Q Protocol-based VLAN Port modes: Access / Trunk / Hybrid |
| Link Aggregation | Static & LACP dynamic aggregation Up to 14 groups, 8 ports per group |
| Loop Protection | Loop protection STP/RSTP/MSTP ERPS ring (single/multi/intersect/tangent), self-healing < 20ms |
| Multicast | IGMP Snooping v1/v2/v3, up to 1024 multicast groups |
| Mirroring | Bidirectional port mirroring |
| QoS | Port/802.1P/DSCP/ToS QoS, 8 egress queues per port Scheduling: Equ/SP/WRR/SP[$add]WRR Priority Mark/Remark Flow-based rate limiting, filtering, redirection |
| ACL | L2–L4 packet filtering, matches first 80 bytes; ACL based on MAC, IP, protocol, TCP/UDP port, VLAN ACL policy applied to ports and VLANs |
| Security | User hierarchy management & password protection Port-based IEEE 802.1X authentication AAA, RADIUS & TACACS[$add] MAC learning limit, blackhole & binding SSH 2.0 encrypted login Port isolation ARP rate limiting IP Source Guard & ARP inspection DoS attack defense Port broadcast suppression System configuration backup & restore IP[$add]MAC[$add]VLAN[$add]Port 4-element binding |
| DHCP | DHCP Server, DHCP Client and DHCP Snooping v1/v2/v3. |
| Management & Maintenance | Web, CLI (Console/Telnet), SNMP v1/v2c/v3; HTTP/HTTPS HTTP/TFTP file upload & download RMON Groups 1, 2, 3, 9 One-click factory reset NTP & local clock Local log & SYSLOG Ping & cable diagnostics Real-time CPU utilization monitoring LLDP NMS cluster management (LLDP [$add] SNMP) |
| System Requirements | Web Browsers: Firefox ≥ 2.5, Chrome ≥ 42 Cat5 or higher Ethernet cable TCP/IP network adapter & OS (Windows, Linux, macOS) |
| Other | |
| Casing | Metal |
| Installation | Desktop & Rack-mount Installation |
| Lightning / Protection Level | Port surge: 4KV 8/20μs, Ingress Protection: IP30 |
| Operating Humidity | 5% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Operative Temperature | -20℃~[$add]55℃ |
| Storage Temperature | -40℃~[$add]75℃ |
| Dimensions | 440mm×290mm×45mm |
| Weight | N.W. <4.5KG, G.W. <5.0KG |
