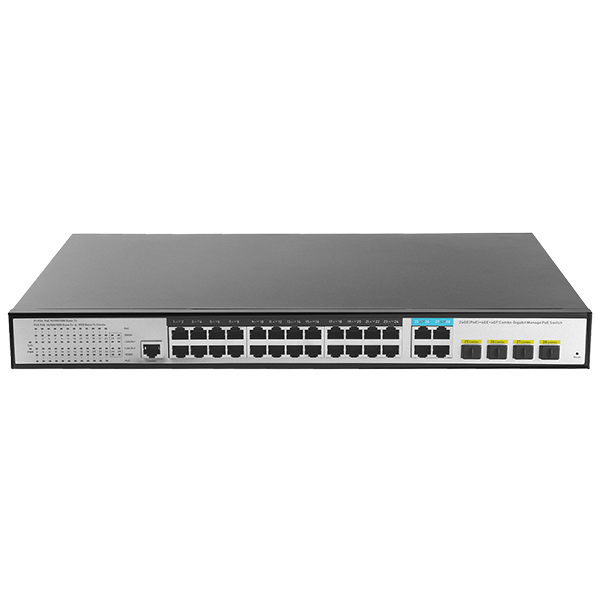

POE2-G24G04F4-L2-NP300

24+4+1 Gigabit Layer 2 Managed POE Switch (Built In Power)

24+4+1 L2 Managed PoE · 24xGigabit PoE,4xSFP,1xConsole · IEEE 802.3af/at · 30W/Port · 56Gbps Bandwidth · L2 Smart Management · Spanning Tree · Multi-Security Defense · Link Aggregation · Multi-Mode Control · Wide Temperature · Built-in Power & Fan · IP30 Protection · Rack/Desktop Mount
    Products
    ·  24+4+1 Gigabit Layer 2 Managed POE Switch (Built In Power)
    ·  POE Port: 24x 1000Mbps adaptive RJ45 ports.
    ·  Uplink Port: 4x 1000Mbps SFP Ports+1x Console Port.
    ·  1-24 POE Standard: IEEE 802.3af/at.
    ·  1-24PoE single port maximum power 30W .
    ·  Switching Capacity: 56Gbps.
    ·  Layer 2 management Features,support routing,DHCP,VLAN,MAC address binding,ACL access control,Qos,multicast,storm suppression,and IPv4/IPv6 services.
    ·  Supports STP/RSTP/MSTP spanning tree protocols for loop prevention,with rapid detection and self-healing capabilities.
    ·  Supports 802.1X authentication,ARP intrusion detection,IP source Guard,Dos protection and other security control policies,with dynamic/static link aggregation for network redundancy.
    ·  Management：Web GUI/Telnet/Command Line Interface(CLI),and SSH.
    ·  Operating Temperature: -20℃～55℃(wide temperature range).
    ·  Power Supply : Built-in 300W/500W,with Fan
    ·  IP 30,Installation Options: Desktop or 1U rack-mountable.
    Model Number POE2-G24G04F4-L2-NP300
    Network Port
    Downlink Ports 24 Ports
    Downlink Speed 10/100/1000Mbps
    Uplink Ports 4 ports SFP Ports
    Uplink Speed 10/100/1000Mbps
    POE Ports 24 Ports
    Manage Port 1 Console Port(115200,8,N,1)
    Transmission Distance
    POE Ports 1000Mbps:0-100m,10Mbps: 0-250m
    SFP Port depends on the optical moduleMulti-mode Fiber: 850nm/0-550M, 50μm/125μm&62.5μm/125μmSingle-mode Fiber: 1310nm/0-40KM, 1550nm/0-120KM. 9.5μm/125μm
    Transmission Medium(Ethernet) Cat5/5e/6 standard network cable
    Power Over Ethernet
    Power Input AC 100-240V 50/60Hz, 300W built-in power
    POE Standard 1-24 Port IEEE802.3af / IEE802.3at(POE[$add])
    POE Power Supply Type End-Span(1/2[$add] 3/6-) 4-wire power supply
    POE Total Power 300W
    Max Power Per Port 30W
    POE Management Supports per-port POE on/off/restart, real-time POE ports operating status and power display
    Power Consumption Standby: <20W, Full load: <300W
    Network Switch
    Network Management Type L2[$add] network management
    Network Protocol IEEE802.3 10BASE-T；IEEE802.3i 10Base-TIEEE802.3u 100Base-TXIEEE802.3x Flow ControlIEEE802.3ab 1000Base-TIEEE802.3z 1000Base-XIEEE 802.3ad port trunk with LACPIEEE 802.1D Spanning Tree protocolIEEE 802.1w Rapid Spanning Tree protocolIEEE 802.1s Multiple Spanning Tree protocolIEEE 802.1p Class of serviceIEEE 802.1Q VLAN taggingIEEE 802.1x Port Authentication Network ControlIEEE 802.1ab LLDPIEEE 802.3af DTE Power via MDIIEEE 802.3at DTE Power via MDI
    CPU 500MHz
    DRAM 1Gbits
    FLASH 256Mbits
    Forwarding Mode Store-and-forward (wire-speed forwarding)
    Backbone Bandwidth 56Gbps (no blocking)
    Packet Forwarding Rate 41.66Mpps
    MAC Address Table 8K
    Packet Forwarding Cache 4.1Mbits
    Jumbo Frame 10Kbytes
    LED Indicators Power: PWR (Green) System: SYS (Green) Network: L/A (Green) PoE: PoE (Yellow) SFP: SFP (Green)
    Factory Reset Button 1 button, press and hold for 6 seconds to restore factory settings
    MTBF 100,000 hours
    Software Specification
    Ports IEEE 802.3x flow control (full-duplex) & half-duplex backpressureForced port mode/rate configurationBroadcast/port storm suppressionPort rate limiting (16Kbps–1Gbps granularity)Real-time traffic management (Flow Interval)Jumbo frame support (up to 16K packets)SFP DDMI (Digital Diagnostic Monitoring)
    IP Routing L2[$add] managementIPv4 static/default routing (128 entries max)ARP protocol (1,024 entries max)
    VLAN Port-based (4K entries) & IEEE 802.1Q VLANProtocol-based VLANAccess/Trunk/Hybrid port modes
    Link Aggregation Static & dynamic (LACP) aggregation14 groups max, 8 ports per group
    Loop Protection Loop preventionSTP/RSTP/MSTP protocolsERPS ring network (self-healing <20ms)
    Multicast IGMP Snooping v1/v2/v3 (1,024 groups max)
    Mirroring Bidirectional port mirroring
    QoS Port/802.1P/DSCP/ToS prioritization (8 queues/port)Scheduling: Equ/SP/WRR/SP[$add]WRRPriority marking (Mark/Remark)Flow-based rate limiting/filtering/redirection
    ACL L2-L4 packet filtering (first 80 bytes)Rules: MAC/IP/Protocol/TCP-UDP ports/VLANPort/VLAN-based ACL assignment
    Security User hierarchy & password protectionIEEE 802.1X port authenticationAAA & RADIUS/TACACS[$add]MAC learning limit/blacklist/bindingSSH 2.0 encryptionPort isolationARP rate limiting/IP source guard/anti-spoofingDoS protection/broadcast suppressionHost data backup/restoreIP[$add]MAC[$add]VLAN[$add]Port binding
    DHCP Server/Client/Snooping v1/v2/v3
    Management Web (HTTP/HTTPS)/CLI (Console/Telnet)/SNMP v1/v2c/v3HTTP/TFTP file transferRMON groups 1/2/3/9One-click factory resetNTP/local clockLocal/SYSLOG loggingPing/cable diagnosticsReal-time CPU monitoringLLDPNMS cluster management (LLDP[$add]SNMP)
    System Requirements Browsers: Firefox 2.5[$add]/Chrome 42[$add]Cat5[$add] Ethernet cablesTCP/IP adapter & OS (Windows/Linux/macOS)
    Other
    Casing Metal
    Installation Rack mounting
    Port Surge Protection 4KV 8/20us
    Operating Humidity 5% to 90% RH (non-condensing)
    Storage Humidity 5% to 95% RH (non-condensing)
    Operative Temperature -20℃~[$add]55℃
    Storage Temperature -40℃~[$add]75℃
    Dimensions 440mm×290mm×45mm
    Weight N.W. <4.3KG, G.W. <4.8KG
