POE2-G24G04F4-L2-NP500

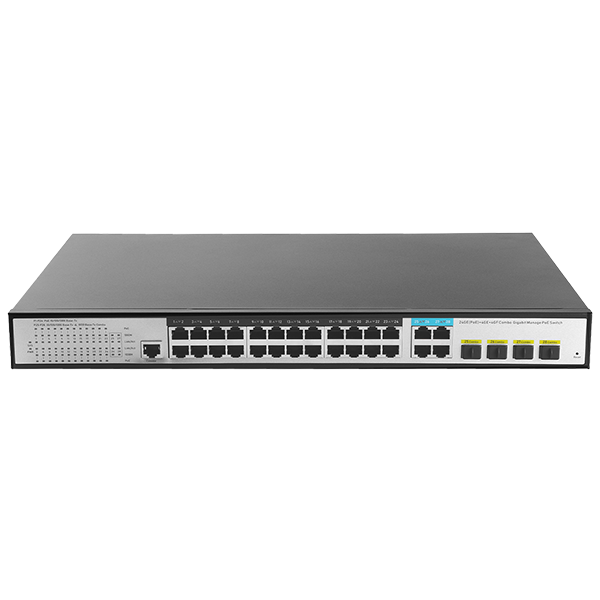

24+4+1 Gigabit Layer 2 Managed POE Switch (Built In Power)

24+4+1 L2 Managed PoE · 24xGigabit PoE,4xSFP,1xConsole · IEEE 802.3af/at · 30W/Port · 56Gbps Bandwidth · L2 Smart Management · Spanning Tree · Multi-Security Defense · Link Aggregation · Multi-Mode Control · Wide Temperature · Built-in Power & Fan · IP30 Protection · Rack/Desktop Mount
    Products
    ·  24+4+1 Gigabit Layer 2 Managed POE Switch (Built In Power)
    ·  POE Port: 24x 1000Mbps adaptive RJ45 ports.
    ·  Uplink Port: 4x 1000Mbps SFP Ports+1x Console Port.
    ·  1-24 POE Standard: IEEE 802.3af/at.
    ·  1-24PoE single port maximum power 30W .
    ·  Switching Capacity: 56Gbps.
    ·  Layer 2 management Features,support routing,DHCP,VLAN,MAC address binding,ACL access control,Qos,multicast,storm suppression,and IPv4/IPv6 services.
    ·  Supports STP/RSTP/MSTP spanning tree protocols for loop prevention,with rapid detection and self-healing capabilities.
    ·  Supports 802.1X authentication,ARP intrusion detection,IP source Guard,Dos protection and other security control policies,with dynamic/static link aggregation for network redundancy.
    ·  Management：Web GUI/Telnet/Command Line Interface(CLI),and SSH.
    ·  Operating Temperature: -20℃～55℃(wide temperature range).
    ·  Power Supply : Built-in 300W/500W,with Fan
    ·  IP 30,Installation Options: Desktop or 1U rack-mountable.
    Model Number POE2-G24G04F4-L2-NP500
    Product Introduction
    · POE2-G24G04F4-L2-NP500 is a full-gigabit Layer 2 managed PoE switch with 24 Gigabit ports and 4 Gigabit combo ports (4SFP[$add]4RJ45).
    · Ports 1–24 support IEEE 802.3af/at PoE, up to 30W per port.
    · All ports feature 4KV surge protection. It automatically detects and powers standard PDs such as wireless APs, IP cameras, IP phones and access control devices.
    · Ideal for high-density PoE scenarios including hotels, campuses, industrial parks, supermarkets, banks, scenic spots, factories and SMBs.
    · This L2[$add] switch supports IPv4 static routing, comprehensive security, ACL/QoS and rich VLAN functions.
    · It supports STP/RSTP/MSTP (<50ms) and ERPS (<20ms) ring networks for strong link redundancy and high reliability.
    · Configurable via Web, CLI, SNMP and Telnet for PoE management, port rate control, VLAN, QoS, LACP, IGMPand DHCP.
    Product Features
    · Up to 30W per PoE port, auto-adapts to af/at, widely compatible. Supports PoE management, remote port restart and real-time power monitoring.
    · Combo uplink ports for flexible copper/fiber connection, easy network expansion and cascading.
    · Full gigabit transmission with stable high bandwidth. Supports port rate and traffic control, 10M/250m long-distance transmission. Heavy-duty metal casing, anti-interference, efficient heat dissipation, rustproof and durable.
    · Enterprise-class high-bandwidth switch chip, high backplane and large cache for reduced network congestion.
    · Supports automatic MAC learning and aging, Auto MDI/MDI-X.
    · 4KV surge protection on service ports, PoE short-circuit and overload protection.
    Software Features
    Powerful Service Capabilities Supports 128 IPv4 static routes and up to 1024 ARP entries.
    Flexible port bandwidth and traffic control; supports DDM for refined network management.
    Supports IEEE 802.1Q, protocol-based VLAN and QinQ for flexible network partitioning.
    Supports QoS with port/802.1P/DSCP priority and Equ/SP/WRR/SP[$add]WRR scheduling.
    Supports ACL for packet filtering and secure access control.
    Supports IGMP v1/v2 and IGMP Snooping v1/v2/v3 for HD video and video conferencing.
    Supports STP/RSTP/MSTP and ERPS to eliminate loops and ensure link redundancy.
    Supports static and LACP dynamic aggregation for higher bandwidth and reliability.
    Comprehensive Security Features Supports Web user authentication.Supports CPU protection against heavy traffic attacks.
    Supports 802.1X, RADIUS and TACACS[$add] authentication.
    Supports IP/MAC ACL, port filtering, and IP[$add]MAC[$add]VLAN[$add]Port binding.
    Supports DHCP Snooping v1/v2/v3, port isolation and broadcast storm control.
    Easy Operation & Maintenance Supports Web, CLI (Console, Telnet), SNMP v1/v2c/v3 management.
    Supports HTTPS, SSH for secure management.
    Supports HTTP/TFTP firmware upgrade, config upload/download, one-click reset.
    Supports RMON, system log, port traffic statistics.
    Supports LLDP for link status monitoring.
    Supports CPU & memory monitoring, Ping and cable diagnostics.
    Technical Parameters
    Network Port
    Downlink Port 24 x 10/100/1000Based-T RJ45 ports
    Uplink Port 4 x 10/100/1000Based-T RJ45 ports [$add] 4 x 100/1000Mbps SFP Slots(Combo Ports)
    Manage Port 1 Console Port(115200,8,N,1)
    POE Port 1-24 Ports support af/at standard POE power supply, transmission distance 100-250m
    Network Port Characteristics 1-28 port 10/100/1000M adaptive, full/half duplex MDI/MDI-X adaptive
    Transmission Distance
    Twisted Pair Transmission 10BASE-T:Cat3,4,5 UTP(≤250 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)1000BASE-T:Cat5e or later UTP(≤100 meter)
    SFP Port depends on the optical moduleMulti-mode Fiber: 850nm/0-550M, 50μm/125μm&62.5μm/125μmSingle-mode Fiber: 1310nm/0-40KM, 1550nm/0-120KM. 9.5μm/125μm
    Transmission Medium(Ethernet) Cat5/5e/6 standard network cable
    Power Over Ethernet
    Power Input Built in AC switch power supply AC: 100-240V 50-60Hz 5.0A 500W
    POE Standard 1-24 Port IEEE802.3af / IEE802.3at
    Power Pins Default 1/2([$add]), 3/6(-), 4-core power supply.
    POE Total Power 500W
    Max Power Per Port 30W
    POE Management Per-port PoE enable/disable & reset, per-port PoE status and real-time PoE power monitoring.
    Power Consumption Standby: <20W, Full load: <500W
    Network Switch
    Network Management Type L2[$add] network management
    Network Protocol IEEE802.3 10BASE-T；IEEE802.3i 10Base-TIEEE802.3u 100Base-TXIEEE802.3x Flow ControlIEEE802.3ab 1000Base-TIEEE802.3z 1000Base-XIEEE 802.3ad port trunk with LACPIEEE 802.1D Spanning Tree protocolIEEE 802.1w Rapid Spanning Tree protocolIEEE 802.1s Multiple Spanning Tree protocolIEEE 802.1p Class of serviceIEEE 802.1Q VLAN taggingIEEE 802.1x Port Authentication Network ControlIEEE 802.1ab LLDPIEEE 802.3af DTE Power via MDIIEEE 802.3at DTE Power via MDI
    CPU 500MHz
    DRAM 1Gbits
    FLASH 256Mbits
    Forwarding Mode Store-and-forward (wire-speed forwarding)
    Backbone Bandwidth 56Gbps (no blocking)
    Packet Forwarding Rate 41.66Mpps
    MAC Address Table 8K
    Packet Forwarding Cache 4.1Mbits
    Jumbo Frame 10Kbytes
    LED Indicators Power: PWR (Green), System: SYS (Green) ,Link/Activity: L/A (Green),PoE: PoE (Yellow), SFP: SFP (Green)
    Factory Reset Button 1 button, press and hold for 6 seconds to restore factory settings
    MTBF 100,000 hours
    Software Specification
    Ports Supports IEEE 802.3x flow control and half-duplex backpressure.Supports forced port mode and rate.Supports broadcast and port storm control.Supports port rate limiting: 16 Kbps–1 Gbps.Supports real-time port traffic management (Flow Interval).Supports jumbo frames up to 16 KB.Supports SFP DDM digital diagnosis.
    IP Routing Supports L2[$add] management functions.Supports IPv4 static routes / default routes, up to 128 entries.Supports ARP protocol, up to 1024 entries.
    VLAN Supports port-based VLAN (4K) and IEEE 802.1Q VLAN.Supports protocol-based VLAN.Supports port configuration of Access, Trunk and Hybrid modes.
    Link Aggregation Supports static trunking and dynamic aggregation (LACP).Supports up to 14 aggregation groups, with a maximum of 8 ports per group.
    Loop Protection Supports loop protection.Supports STP/RSTP/MSTP.Supports ERPS ring (single, multi, intersecting & tangent rings), self-healing <20ms.
    Multicast Supports IGMP Snooping v1/v2/v3, up to 1024 multicast groups.
    Mirroring Supports bidirectional port mirroring.
    QoS Supports port-based, 802.1P and DSCP/ToS QoS, 8 egress queues per port.Supports Equ, SP, WRR, SP[$add]WRR scheduling modes.Supports priority marking & remarking.Supports flow-based rate limiting, packet filtering and redirection.
    ACL Supports L2-L4 packet filtering, matching first 80 bytes of packets.Supports ACLs based on MAC, IP, protocol, TCP/UDP ports, VLAN, etc.Supports ACL assignment by port and VLAN.
    Security Supports hierarchical user management and password protection.Supports port-based IEEE 802.1X authentication.Supports AAA, RADIUS, TACACS[$add].Limits MAC address learning entries.Supports blackhole MAC and MAC binding.Supports SSH 2.0 for secure login.Supports port isolation.Supports ARP rate limiting.Supports IP source guard.Supports ARP detection.Supports DoS attack prevention.Supports broadcast storm control.Supports configuration backup & restore.Supports IP[$add]MAC[$add]VLAN[$add]Port binding.
    DHCP Supports DHCP Server, DHCP Client and DHCP Snooping v1/v2/v3.
    Management & Maintenance Supports multiple management modes: Web, CLI (Console, Telnet), SNMP v1/v2c/v3.Supports Web management (HTTP/HTTPS).Supports HTTP/TFTP file upload & download.Supports RMON Groups 1, 2, 3, 9.Supports one-click factory reset.Supports NTP and local clock.Supports local log & system log (SYSLOG).Supports Ping test.Supports cable diagnostics.Supports real-time CPU utilization monitoring.Supports LLDP.Supports NMS cluster management (LLDP[$add]SNMP).
    System Requirements Web Browser: Mozilla Firefox 2.5[$add], Chrome V42[$add]Category 5 or above Ethernet cableTCP/IP network adapter and OS (Windows, Linux, Mac OS)
    Other
    Casing Metal
    Installation Desktop & Rack-mount Installation
    Lightning / Protection Level Port surge: 4KV 8/20μs, Ingress Protection: IP30
    Operating Humidity 5% to 90% RH (non-condensing)
    Storage Humidity 5% to 95% RH (non-condensing)
    Operative Temperature -20℃~[$add]55℃
    Storage Temperature -40℃~[$add]75℃
    Dimensions 440mm×290mm×45mm
    Weight N.W. <4.3KG, G.W. <4.8KG
