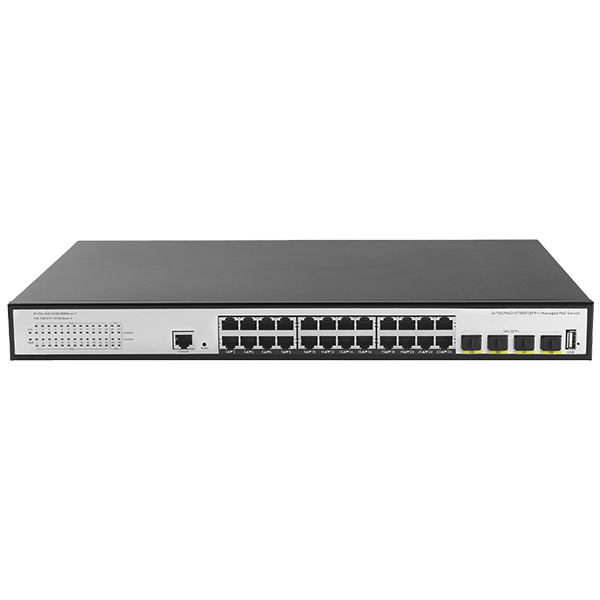

POE2-W24XWF4-L3-NP800

24+4+1 Combo 10 Gigabit Layer 3 Managed POE Switch (Built In Power)

24+4+1 10G L3 Managed PoE · 24xGigabit PoE,4x10G SFP,1xConsole · IEEE 802.3af/at · 30W/Port · 128Gbps Capacity · L3 Routing Management · Spanning Tree · Multi-Security Protection · Link Aggregation · Multi-Management Access · Wide Temperature · High Built-in Power · Cooling Fan · IP30 Rating · Rack/Desktop Mount
    Products
    ·  24+4+1 Combo 10 Gigabit Layer 3 Managed POE Switch (Built In Power)
    ·  POE Port: 24 x 1000Mbps adaptive RJ45 ports.
    ·  Uplink Port: 4 x 10000Mbps(10 Gigabit) SFP Ports+1 x Console Port.
    ·  1-24 POE Standard: IEEE 802.3af/at.
    ·  1-24 PoE single port maximum power 30W .
    ·  Switching Capacity: 128Gbps.
    ·  Layer 3 management Features,support static routing,DHCP,VLAN,MAC address binding,ACL access control,Qos,multicast,storm suppression,IPv4/IPv6 RIP,and OSPF,etc.
    ·  Supports STP/RSTP/MSTP spanning tree protocols for loop prevention,with rapid detection and self-healing capabilities.
    ·  Supports 802.1X authentication,ARP intrusion detection,IP source Guard,Dos protection and other security control policies,with dynamic/static link aggregation for network redundancy.
    ·  Management: Web GUI/Telnet/Command Line Interface(CLI),and SSH.
    ·  Operating Temperature: -20℃～55℃(wide temperature range).
    ·  Power Supply : Built-in 500W/800W,with Fan
    ·  IP 30,Installation Options: Desktop or 1U rack-mountable.
    Model Number POE2-W24XWF4-L3-NP800
    Product Introduction
    · POE2-W24XWF4-L3-NP800 is a Layer 3 managed PoE switch with 24 Gigabit ports and 4 10G SFP[$add] uplink slots.
    · Ports 1–24 support IEEE 802.3af/at PoE, supplying up to 30W per port.
    · All service ports feature 4KV surge protection. The switch automatically detects and powers standard PDs, including wireless APs, IP cameras, IP phones and access control intercoms.
    · Ideal for highdensity PoE scenarios such as hotels, campuses, industrial parks, supermarkets, banks, scenic spots, factory dormitories and SMBs.
    · This Layer 3 switch supports IPv4/IPv6 static and dynamic routing, comprehensive security, ACL/QoS and abundant VLAN functions.
    · It supports STP/RSTP/MSTP (<50ms) and ERPS (<20ms) ring protocols for strong link redundancy and high network reliability.
    · Configurable via Web, CLI, SNMP and Telnet for PoE management, rate control, VLAN, QoS, LACP, IGMP and DHCP.
    Product Features
    · Up to 30W per PoE port, auto-adapts to af/at; supports remote PoE restart and real-time power monitoring.
    · 4 SFP[$add] uplink ports for long-distance fiber transmission, suitable for ring/chain network expansion.
    · Full Gigabit with 10G uplink; supports port rate control and 10M/250m long-distance transmission.
    · Enterprise-class chip with high backplane and large buffer to reduce congestion.
    · Supports automatic MAC learning/aging and Auto MDI/MDI-X.
    · 4KV surge protection, PoE short-circuit and overload protection.
    · Rugged metal casing for anti-interference, efficient heat dissipation and durability.
    Software Features
    Powerful Service Capabilities Supports 128 IPv4/IPv6 static/dynamic routes, up to 1024 ARP entries,
    IPv4/IPv6 management.
    Flexible bandwidth and traffic control, optical port DDM diagnostic for refined management.
    Supports IEEE 802.1Q, protocol VLAN and QinQ for flexible network segmentation.
    Supports QoS with port/802.1P/DSCP priorities and Equ/SP/WRR/SP[$add]WRR scheduling.
    Supports ACL for packet filtering and secure access control with time policies.Supports IGMP v1/v2/v3 and IGMP Snooping v1/v2/v3 for HD video surveillance and conferencing.
    Supports STP/RSTP/MSTP and ERPS to eliminate loops and ensure link redundancy.
    Supports static and LACP dynamic aggregation for higher bandwidth and reliability.
    Comprehensive Security Features Supports Web user authentication.
    Supports CPU protection against heavy traffic attacks.
    Supports 802.1X, RADIUS and TACACS[$add] authentication.
    Supports IP/MAC ACL, port filtering, MAC binding, and IP[$add]MAC[$add]VLAN[$add]Port binding.
    Supports DHCP Snooping v1/v2/v3, port isolation and broadcast storm control.
    Easy Operation & Maintenance Supports Web, CLI (Console, Telnet), SNMP v1/v2c/v3 management.
    Supports HTTPS, SSH for secure management.
    Supports HTTP/TFTP firmware upgrade, config upload/download, one-click reset.
    Supports RMON, system log and port traffic statistics for network optimization.
    Supports LLDP for link status monitoring.Supports CPU & memory monitoring, Ping and cable diagnostics.
    Technical Parameters
    Network Port
    Downlink Port 24 x 10/100/1000Based-T RJ45 ports
    Uplink Port 4 x 10G SFP Slots
    Manage Port 1 Console Port(115200,8,N,1)
    POE Port 1-24 Ports support af/at standard POE power supply, transmission distance 100-250m
    Network Port Characteristics 1-24 port 10/100/1000M adaptive, full/half duplex MDI/MDI-X adaptive
    Transmission Distance
    Twisted Pair Transmission 10BASE-T:Cat3,4,5 UTP(≤250 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)1000BASE-T:Cat5e or later UTP(≤100 meter)
    SFP Port depends on the optical moduleMulti-mode Fiber: 850nm/0-550M, 50μm/125μm&62.5μm/125μmSingle-mode Fiber: 1310nm/0-40KM, 1550nm/0-120KM. 9.5μm/125μm
    Transmission Medium(Ethernet) Cat5/5e/6 standard network cable
    Power Over Ethernet
    Power Input Built in AC switch power supply AC: 100-240V 50-60Hz 5.0A 800W
    POE Standard 1-24 Port IEEE802.3af / IEE802.3at
    Power Pins Default 1/2([$add]), 3/6(-), 4-core power supply.
    POE Total Power 800W
    Max Power Per Port 30W
    POE Management Per-port PoE enable/disable & reset, per-port PoE status and real-time PoE power monitoring.
    Power Consumption Standby: <22W, Full load: <800W
    Network Switch
    Network Management Type L3[$add] network management
    Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-TIEEE802.3u 100Base-TXIEEE802.3x Flow ControlIEEE802.3ab 1000Base-TIEEE802.3z 1000Base-XIEEE 802.3ad port trunk with LACPIEEE 802.1D Spanning Tree protocolIEEE 802.1w Rapid Spanning Tree protocolIEEE 802.1s Multiple Spanning Tree protocolIEEE 802.1p Class of serviceIEEE 802.1Q VLAN taggingIEEE 802.1x Port Authentication Network ControlIEEE 802.1ab LLDPIEEE 802.3af DTE Power via MDIIEEE 802.3at DTE Power via MDI
    CPU 1GHz
    DRAM 4Gbits
    FLASH 128Mbits
    Forwarding Mode Store-and-forward (wire-speed forwarding)
    Backbone Bandwidth 128Gbps (no blocking)
    Packet Forwarding Rate 95.23Mpps
    MAC Address Table 16K
    Packet Forwarding Cache 12Mbits
    Jumbo Frame 12Kbytes
    LED Indicators Power: PWR (Green), System: SYS (Green) ,Link/Activity: L/A (Green),PoE: PoE (Yellow), SFP: SFP (Green)
    Factory Reset Button 1 button, press and hold for 6 seconds to restore factory settings
    MTBF 100,000 hours
    Software Specification
    Ports IEEE 802.3x flow control (full-duplex), half-duplex backpressure Port force mode & rate configuration Broadcast & port storm control Port rate limiting: 16Kbps–1Gbps granularity Real-time port flow control (Flow Interval) Jumbo frame up to 16KB Optical port DDM/DDMI diagnostic
    IP Routing Layer 3 management, IPv4/IPv6 static/dynamic routing, dual-stack management Supports RIPv1/v2, RIPng Supports OSPFv1/v2 Supports ARP (max 1024 entries)
    VLAN Port-based VLAN (4096), IEEE 802.1Q Protocol-based VLAN MAC-based VLAN Voice VLAN Port modes: Access, Trunk, Hybrid QinQ support GVRP supported
    Link Aggregation Supports static trunking and dynamic aggregation (LACP).Supports up to 14 aggregation groups, with a maximum of 8 ports per group.
    Loop Protection Supports loop protection.Supports STP/RSTP/MSTP.Supports ERPS ring (single, multi, intersecting & tangent rings), self-healing <20ms.
    Multicast IGMP Snooping v1/v2/v3, up to 1024 multicast groupsMulticast VLAN supportMVR (Multicast VLAN Registration) supported
    Mirroring Bidirectional traffic mirroring on basic ports 1-to-many mirroring Up to 4 port mirroring sessions
    QoS Supports port-based, 802.1P and DSCP/ToS QoS, 8 egress queues per port.Supports Equ, SP, WRR, SP[$add]WRR scheduling modes.Supports priority marking & remarking.Supports flow-based rate limiting, packet filtering and redirection.
    ACL L2–L4 packet filtering, matches first 80 bytes; ACL based on MAC, IP, protocol, TCP/UDP port, VLAN, etc. ACL binding to ports and VLANs supported
    Security User hierarchical management & password protection Port-based IEEE 802.1X authentication AAA, RADIUS & TACACS[$add] authentication MAC learning limit Blackhole MAC & MAC binding SSH 2.0 encrypted login Port isolation ARP rate limiting IP source guard ARP spoofing detection DoS attack defense Port broadcast suppression Configuration backup & restore Quad binding: IP[$add]MAC[$add]VLAN[$add]Port
    DHCP Supports DHCP Server, DHCP Client and DHCP Snooping v1/v2/v3.
    Management & Maintenance Web, CLI (Console/Telnet), SNMP v1/v2c/v3 management HTTP/HTTPS, HTTP/TFTP file upload/download RMON Groups 1,2,3,9 One-click factory reset NTP & local clock Local log & SYSLOG Ping & cable diagnostics Real-time CPU monitoring LLDP supported NMS cluster management (LLDP[$add]SNMP)
    System Requirements Web Browser: Firefox ≥ 2.5, Chrome ≥ V42 Cat5e or higher Ethernet cable TCP/IP network adapter & OS (Windows, Linux, macOS)
    Other
    Casing Metal
    Installation Desktop & Rack-mount Installation
    Lightning / Protection Level Port surge: 4KV 8/20μs, Ingress Protection: IP30
    Operating Humidity 5% to 90% RH (non-condensing)
    Storage Humidity 5% to 95% RH (non-condensing)
    Operative Temperature -20℃~[$add]55℃
    Storage Temperature -40℃~[$add]75℃
    Dimensions 440mm×290mm×45mm
    Weight N.W. <4.4KG, G.W. <5.0KG
