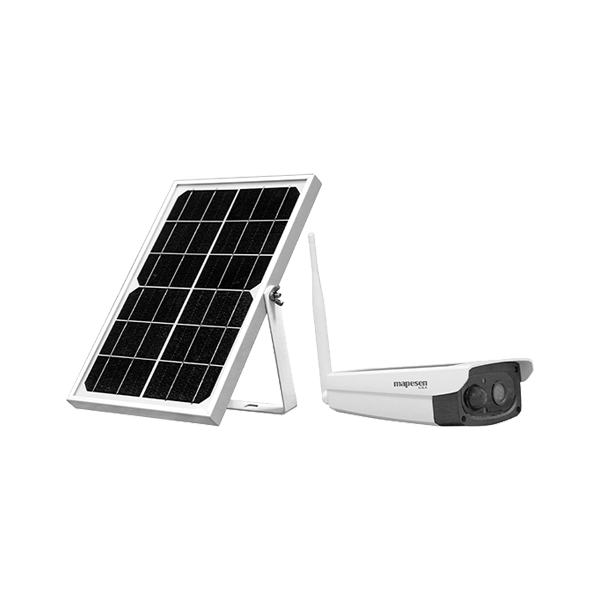

BC1 Solar WIFI Battery Camera

Ultra Low Power Consumption Technology

· 6.8W Solar Panel · Real time2 way talk&Audio · PIR detection,and alarm message Push · Alarm Video playback · More stable WIFI connection · Built-in low power infrared lamp · PIR Function,German import · Built-in low power infrared lamp · Ultra-low power consumption,standby time more than 180 days · IP66 Waterproof

    Products

    Solar Wifi Battery Camera

    · 1/3 HD photosensitive chip Resolution: 1080P, 2MP

    · One-click wake-up

    · Real-time connection

    · Real time two-way audio

    · PIR detection, and alarm message Push

    · Alarm Video playback

    · More stable WIFI connection

    · Built-in low power infrared lamp

    · Max 32GB SD card for video recording

    · PIR Function, Germany import PIR induction alarm, real time report

    · ICR double filter, built-in low power infrared lamp

    · Professional and customized WiFi antenna

    · Ultra-low power consumption, standby time more than 150 days

    · IP66 Waterproof

    · Powered by a 6600 Ma polymer lithium battery

    Model

    MP-BC1

    Operating system

    Linux

    Image sensor

    1/3 million pixel CMOS

    Minimum illumination

    Color 0.6 lux@f1.2, black and white 0.08 lux@f1.2,0 Lux ir Open

    Day and night mode

    IR-cut Double Filter Automatic switching

    Lens

    3.6MM Million HD Lens

    Video compression

    H. 264, support for dual-stream



    Video mode

    HD/SD

    Maximum image size

    Main stream 1920x1080; sub-code stream: 640x480;

    Resolution

    1080P: 2MP

    Frame rate

    25 Frames

    Audio coding

    G726, G711, AAC, MP3 format, 8K sampling rate, support echo cancellation function

    Audio input

    Built-in mic

    Audio output

    Internal speaker

    Real Standby

    Built-in MCU, support true standby function, support infrared, key, Gpio alarm

    wake-up main system; system standby power consumption 60uA

    Wireless network

    2.4GHzIEEE 802.11b/g/n

    Storage Features

    Support Micro SD card storage, Max 32G

    Intelligent Alarm

    PIR Human Temperature Detection

    Infrared lamp

    8 infrared light, 850nm, effective distance of 10 meters

    Solar charging voltage

    5V1.4A

    Solar charging power

    6.8W

    Battery

    6600 Ma polymer lithium battery,

    Standby time

    150 days

    Solar panel size

    180*270*17mm

    Solar panel waterproofing

    IP66

    Solar connection

    Waterproof DC interface,Line length 5m

    Power

    0.75W (work) 0.0025W (standby)

    Working environment

    –10°c~60°c/20%~85% (non condensation)
