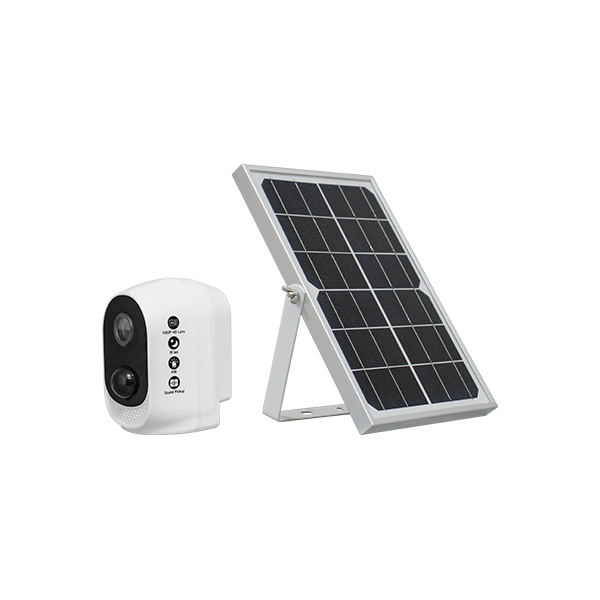

BC3 PIR WiFi Battery Camera

Ultra Low Power Consumption Technology

· 6.8W Solar Panel · Built-in Low Power Infrared Lamp · German import PIR induction alarm,real report · Built-in low power infrared lamp · 2 Way Audio · Ultra-low power consumption,standby time more than 180 days · IP66 Waterproof

    Products

    All-weather WiFi Battery Camera

    ·Image resolution:1080P ,2.0MP;
    ·6.8W Solar panel anti-wear and scratch resistant;
    ·Powered by 10400 ma polymer lithium battery,charge voltage: 5v2a
    ·Pure battery standby time more than 360 days.;
    ·Support Wi-Fi 802.11 b/g/n;
    ·G726, G711, AAC, MP3 format, 8K sampling rate, support echo cancellation function
    ·PIR Human Temperature Detection,PIR alarm push ;
    ·Two-way audio,with auto cancellation;built-in speaker/Microphone;
    ·Storage interface:1 TF(Micro SD)storage interface,max64GB;
    ·Support dual-stream simultaneously monitoring;
    ·Support CMS,P2P
    ·IP66

    Model NO

    MP-BC3

    Operating system

    Linux

    Image sensor

    1/3 million pixel CMOS

    Minimum illumination

    Color 0.6 lux@f1.2, black and white 0.08 lux@f1.2,0 Lux ir Open

    Day and night mode

    IR-cut Double Filter Automatic switching

    Lens

    3.6MM million HD lens

    Video compression

    H.264, support dual code flow

    Video mode

    HD/SD

    Maximum image size

    Main stream 1920x1080; sub-code stream: 640x480;

    Resolution

    1080P: 2MP

    Frame rate

    25 Frames

    Audio coding

    G726, G711, AAC, MP3 format, 8K sampling rate, support echo cancellation function

    Audio input

    Built-in mic

    Audio output

    Internal speaker

    Real Standby

    Built-in MCU, support true standby function, support infrared, key, Gpio alarm wake-up main system; system standby power consumption 60uA

    Wireless network

    2.4GHzIEEE 802.11b/g/n

    Storage Features

    Support Micro SD card storage, Max 64G

    Intelligent Alarm

    PIR Infrared Sensor alarm

    Infrared lamp

    6 infrared light, wavelength 850nm, effective distance of 5 meters

    Solar charging voltage

    5V1.4A

    Solar charging power

    6.8W

    Battery

    5200 Ma polymer lithium battery, charge voltage: 5v2a

    Standby time

    180 days

    Solar panel size

    180*270*17mm

    Solar panel waterproofing

    IP66

    Solar connection

    Waterproof DC interface,Line length 5 m

    Power

    0.75W (work) 0.0025W (standby)

    Working environment

    –10°c~60°c/20%~85% (non condensation)
