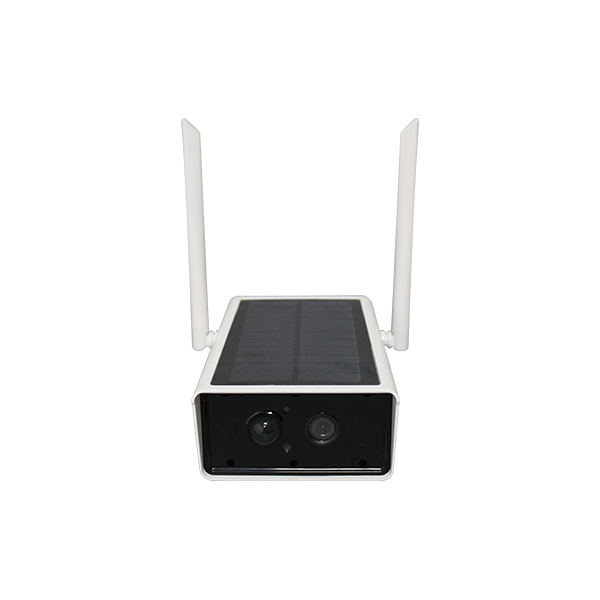

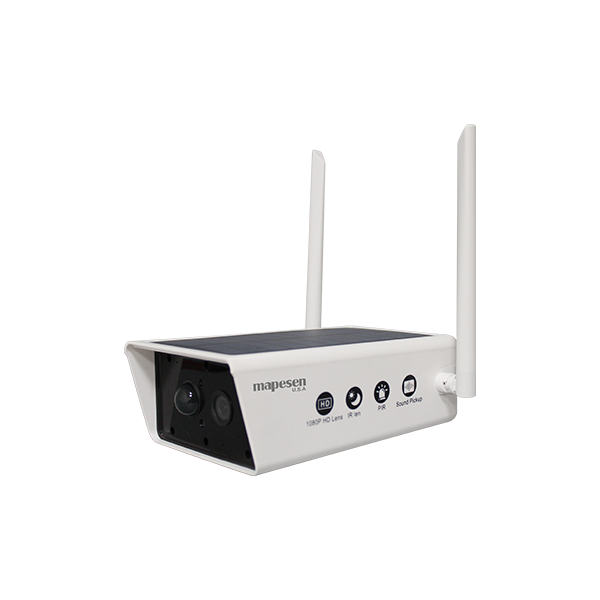

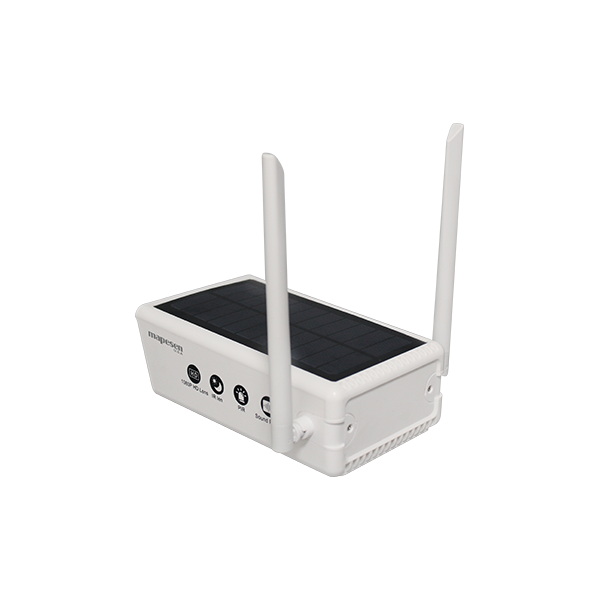

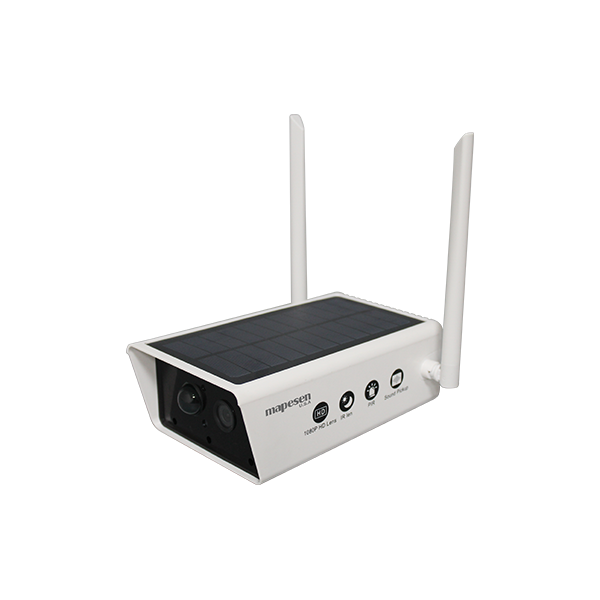

BC6 Solar Wifi Battery Camera

Ultra Low Power Consumption Technology

· 6.8W Solar Panel · Real time two-way audio · PIR detection,and alarm message Push · Alarm Video playback · More stable WIFI connection · Built-in low power infrared lamp · PIR Function,German import · ICR double filter, built-in low power infrared lamp ·Ultra-low power consumption,standby time more than 180 days ·IP66 Waterproof


    Solar Wifi Battery camera

    ·Image resolution:1080P,2.0MP;
    ·6.8W Solar power panel anti-wear and scratch resistant
    ·Powered by3pcs 18650 lithium battery;
    ·Pure battery standby time more than 150 days.;
    ·Support Wi-Fi 802.11 b/g/n;
    ·G726, G711, AAC, MP3 format, 8K sampling rate, support echo cancellation function
    ·PIR Human Temperature Detection 10m,PIR alarm push ;
    ·Two-way audio,with auto cancellation;built-in speaker/Microphone;
    ·Storage interface:1 TF(Micro SD)storage interface,max32GB,recording video 80hours;
    ·Support recording when network is not available suddedly,PIR alarm info  sent ,can check the recording after network is on.
    ·Support dual-stream simultaneously monitoring;
    ·Support CMS,P2P
    ·IP67,Industrial plastic case


    Model No.

    MP-BC6

    Operating system

    Linux

    Image sensor

    1/3 million pixel CMOS

    Minimum illumination

    Color 0.6 lux@f1.2, black and white 0.08 lux@f1.2,0 Lux ir Open

    Day and night mode

    IR-cut Double Filter Automatic switching

    Lens

    3.6MM Million HD Lens

    Video compression

    H. 264, support for dual-code flow



    Video mode

    HD/SD

    Maximum image size

    Main stream 1920x1080; sub-code stream: 640x480;

    Resolution

    1080P: 2MP

    Frame rate

    25 Frames

    Audio coding

    G726, G711, AAC, MP3 format, 8K sampling rate, support echo cancellation function

    Audio input

    Built-in mic

    Audio output

    Internal speaker

    Real Standby

    Built-in MCU, support true standby function, support infrared, key, Gpio alarm wak-up System;system standby power 60uA



    Wireless network

    2.4GHzIEEE 802.11b/g/n

    Storage Features

    Support Micro SD card storage, Max 32G

    Intelligent Alarm

    PIR Human Temperature Detection

    Infrared lamp

    8 infrared light, 850nm, effective distance of 10 meters

    Solar charging voltage

    5V1.4A

    Solar charging power

    7W

    Battery

    6600mA lithium battery

    Standby time

    150 days

    Solar panel size

    180*270*17mm

    Solar panel waterproofing

    IP66

    Solar connection

    Waterproof DC interface,Line length 5 m

    Power

    0.75W (work) 0.0025W (standby)

    Working environment

    –10°c~60°c/20%~85% (non condensation)
