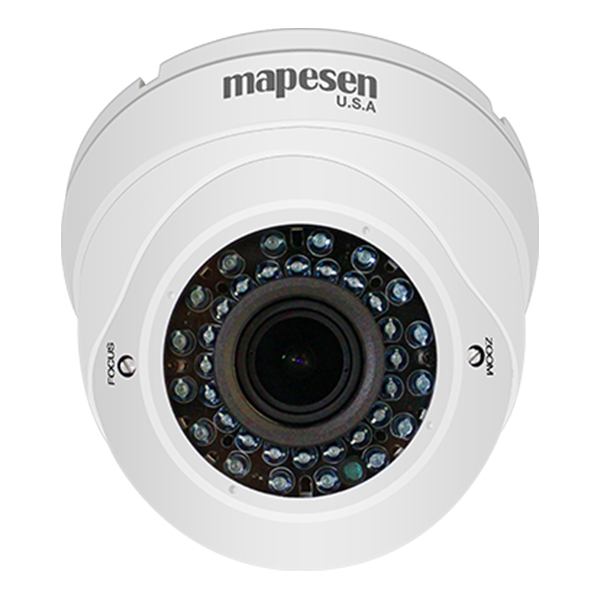

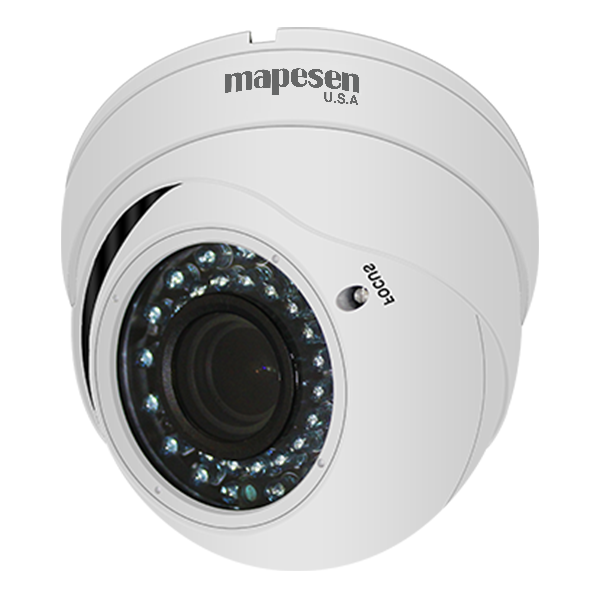

M9A Varifocal IR Series
2MP/5MP/8MP 4-IN-1 Varifocal IR Dome Camera
Manual Varifocal Lens · AHD/HDCVI/HDTVI/CVBS · Low Illumination · IR Distance 40M · DWDR · 2D/3D DNR · UTC
2MP/5MP/8MP 4-IN-1 Varifocal IR Dome Camera
| Model Number | M9AH203V |
| Camera | |
| Image Sensor | 1/3’’ CMOS Image Sensor |
| Resolution | 1080P@25/30fps |
| Effective Pixels | 1920(H)×1080(V) |
| Min.Illumination | 0.01Lux@(F1.2,AGC ON),0LUX with IR |
| Resolution | AHD/TVI/CVI/CVBS Switchable |
| Video Standard | PAL/NTSC |
| Synchronization | Inter-Sync |
| Electronic Shutter | Auto |
| Lens | |
| Focal Length | 2.8-12mm Varifocal lens |
| Lens Resolution | 2MP |
| Illuminator | |
| Infrared Distance | 25-30m |
| IR LEDs | 36pcs IR LEDS |
| Feature | |
| Day & Night Mode | External Control(default)/Auto/Color/B&W |
| UTC | Support |
| OSD Support | Support |
| WDR | DWDR |
| White Balance | Auto/Manual |
| Exposure | Brightness/Exposure mode/Gain |
| Video Setting | Contrast/Saturation/Sharpness/DNR/Video System/DWDR |
| DNR | 3D DNR/2D DNR |
| Language | English/Chinese/Traditional Chinese/Pyccknn/ESPANOL/FRANCAIS/POLSKI/ITALIANO/Portugues |
| General | |
| Type | Varifocal Metal Dome Camera |
| Video Port | BNC |
| Power Supply | 12V DC±10% |
| Lightning Protection | 6KV |
| Power Consumption | Max 5W |
| Working Humidity | Relative humidity less than 90% |
| Operating Temperature | -20°C to [$add]60°C |
| Storage Temperature | -20°C to [$add]60°C |
| Model Number | M9AH500V |
| Camera | |
| Image Sensor | 1/3’’Color CMOS Image Sensor |
| Max.Resolution | 5MP 2560(H)×1440(V) |
| Min. Illumination | 0.05Lux@(F1.6,AGC ON),0LUX with IR |
| Electronic Shutter | Auto |
| Video Standard | PAL/NTSC |
| Synchronization | Inter-Sync |
| Lens | |
| Focal Length | 2.8~12mm Varifocal Lens |
| Lens Resolution | 5MP |
| Illuminator | |
| Light Distance | 40m |
| IR LEDS | 36pcs Infrared LEDs |
| Day/Night Mode | Auto/B&W |
| Image | |
| Image Settings | Contrast/sharpness/saturation/DNR |
| Frame Rate | 2560(H)×1440(V)@25fps/30fps |
| UTC | Support |
| OSD Support | Support |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| Exposure | Brightness/exposure mode/gain control |
| Video Output | AHD/TVI/CVI/CVBS Switch by UTC |
| Language | ENGLISH |
| Audio | |
| Audio Input | No |
| Audio Output | No |
| Interface | |
| Video Output | 1 HD analog output |
| Power | 1 DC power port |
| General | |
| Type | Varifocal Metal Dome Camera |
| Power Supply | 12V DC±10% |
| Lightning Protection | Support |
| Power Consumption | Max 4W |
| Working Humidity | Relative humidity less than 90% |
| Operating Temperature | -20°C to [$add]50°C (-14°F to 122°F) |
| Storage Temperature | -40°C to [$add]60°C (-40°F to 140°F) |
| Model Number | M9AH503V |
| Camera | |
| Image Sensor | 1/2.8’’ SONY Color CMOS Image Sensor |
| Max.Resolution | 5MP 2560(H)×1920(V) |
| Min. Illumination | 0.01Lux@(F1.6,AGC ON),0LUX with IR |
| Electronic Shutter | Auto |
| Video Standard | PAL/NTSC |
| Synchronization | Inter-Sync |
| Lens | |
| Focal Length | 2.7~13.5mm Varifocal Lens |
| Lens Resolution | 5MP |
| Illuminator | |
| Light Distance | 40m |
| IR LEDS | 36pcs Infrared LEDs |
| Day/Night Mode | Auto/B&W |
| Image | |
| Image Settings | Contrast/sharpness/saturation/DNR/Mirror/D-WDR |
| Frame Rate | 2560(H)×1920(V)@20fps/12.5fps |
| UTC | Support |
| OSD Support | Support |
| WDR | Digital WDR |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| Exposure | Brightness/exposure mode |
| Video Output | AHD/TVI/CVI/CVBS Switch by UTC |
| Language | ENGLISH |
| Audio | |
| Audio Input | No |
| Audio Output | No |
| Interface | |
| Video Output | 1 HD analog output |
| Power | 1 DC power port |
| General | |
| Type | Varifocal Metal Dome Camera |
| Power Supply | 12V DC±10% |
| Lightning Protection | Support |
| Power Consumption | Max 4W |
| Working Humidity | Relative humidity less than 90% |
| Operating Temperature | -20°C to [$add]50°C (-14°F to 122°F) |
| Storage Temperature | -40°C to [$add]60°C (-40°F to 140°F) |
| Model Number | M9AH509V |
| Camera | |
| Image Sensor | 1/3.02’’Color CMOS Image Sensor |
| Max.Resolution | 5MP 2560(H)×1920(V) |
| Min. Illumination | 0.05Lux@(F1.6,AGC ON),0LUX with IR |
| Electronic Shutter | Auto |
| Video Standard | PAL/NTSC |
| Synchronization | Inter-Sync |
| Lens | |
| Focal Length | 2.8~12mm Varifocal Lens |
| Lens Resolution | 5MP |
| Illuminator | |
| Light Distance | 40m |
| IR LEDS | 36pcs Infrared LEDs |
| Day/Night Mode | Auto/B&W |
| Image | |
| Image Settings | Contrast/sharpness/saturation/DNR |
| Frame Rate | 2560(H)×1920(V)@12.5fps/20fps |
| UTC | Support |
| OSD Support | Support |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| Exposure | Brightness/exposure mode/gain control |
| Video Output | AHD/TVI/CVI/CVBS Switch by UTC, default AHD mode output |
| Language | ENGLISH |
| Audio | |
| Audio Input | No |
| Audio Output | No |
| Interface | |
| Video Output | 1 HD analog output |
| Power | 1 DC power port |
| General | |
| Type | Varifocal Metal Dome Camera |
| Power Supply | 12V DC±10% |
| Lightning Protection | Support |
| Power Consumption | Max 4W |
| Working Humidity | Relative humidity less than 90% |
| Operating Temperature | -20°C to [$add]50°C (-14°F to 122°F) |
| Storage Temperature | -40°C to [$add]60°C (-40°F to 140°F) |
| Model Number | M9AH800V |
| Camera | |
| Image Sensor | 1/2.8’’SONY Color CMOS Image Sensor |
| Max.Resolution | 8MP 3480(H)×2160(V) |
| Min. Illumination | 0.01Lux@(F1.6,AGC ON),0LUX with IR |
| Electronic Shutter | Auto |
| Video Standard | PAL/NTSC |
| Synchronization | Inter-Sync |
| Lens | |
| Focal Length | 2.7~13.5mm Varifocal Lens |
| Lens Resolution | 8MP |
| Illuminator | |
| Light Distance | 40m |
| IR LEDS | 36pcs Infrared LEDs |
| Day/Night Mode | Auto/B&W |
| Image | |
| Image Settings | Contrast/sharpness/color/Gain/DNR/Mirror |
| Frame Rate | 3480(H)×2160(V)@12.5fps/15fps |
| DWDR | Digital WDR |
| UTC | Support |
| OSD Support | Support |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| Exposure | Brightness/exposure mode/gain control/DWDR |
| Video Output | AHD/TVI/CVI/CVBS Switch by UTC |
| Language | ENGLISH |
| Audio | |
| Audio Input | No |
| Audio Output | No |
| Interface | |
| Video Output | 1 HD analog output |
| Power | 1 DC power port |
| General | |
| Type | Varifocal Metal Dome Camera |
| Power Supply | 12V DC±10% |
| Lightning Protection | Support |
| Power Consumption | Max 4W |
| Working Humidity | Relative humidity less than 90% |
| Operating Temperature | -20°C to [$add]50°C (-14°F to 122°F) |
| Storage Temperature | -40°C to [$add]60°C (-40°F to 140°F) |
| Model Number | M9AH802V |
| Camera | |
| Image Sensor | 1/3’’Color CMOS Image Sensor |
| Max.Resolution | 8MP 3480(H)×2160(V) |
| Min. Illumination | 0.05Lux@(F1.6,AGC ON),0LUX with IR |
| Electronic Shutter | Auto |
| Video Standard | PAL/NTSC |
| Synchronization | Inter-Sync |
| Lens | |
| Focal Length | 2.8~12mm Varifocal Lens |
| Lens Resolution | 8MP |
| Illuminator | |
| Light Distance | 40m |
| IR LEDS | 36pcs Infrared LEDs |
| Day/Night Mode | Auto/B&W |
| Image | |
| Image Settings | Contrast/sharpness/saturation/DNR |
| Frame Rate | 3480(H)×2160(V)@12.5fps/15fps |
| UTC | Support |
| OSD Support | Support |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| Exposure | Brightness/exposure mode/gain control |
| Video Output | AHD/TVI/CVI/CVBS Switch by UTC |
| Language | ENGLISH |
| Audio | |
| Audio Input | No |
| Audio Output | No |
| Interface | |
| Video Output | 1 HD analog output |
| Power | 1 DC power port |
| General | |
| Type | Varifocal Metal Dome Camera |
| Power Supply | 12V DC±10% |
| Lightning Protection | Support |
| Power Consumption | Max 4W |
| Working Humidity | Relative humidity less than 90% |
| Operating Temperature | -20°C to [$add]50°C (-14°F to 122°F) |
| Storage Temperature | -40°C to [$add]60°C (-40°F to 140°F) |
| Model Number | M9AH803V |
| Camera | |
| Image Sensor | 1/2.7’’ Color CMOS Image Sensor |
| Max.Resolution | 8MP 3480(H)×2160(V) |
| Min. Illumination | 0.01Lux@(F1.6,AGC ON),0LUX with IR |
| Electronic Shutter | Auto |
| Video Standard | PAL/NTSC |
| Synchronization | Inter-Sync |
| Lens | |
| Focal Length | 2.8~12mm Varifocal Lens |
| Lens Resolution | 8MP |
| Illuminator | |
| Light Distance | 40m |
| IR LEDS | 36pcs Infrared LEDs |
| Day/Night Mode | Auto/B&W |
| Image | |
| Image Settings | Contrast/sharpness/Saturation/DNR |
| Frame Rate | 3480(H)×2160(V)@12.5fps/15fps |
| DWDR | Digital WDR |
| UTC | Support |
| OSD Support | Support |
| Noise Reduction | 2D DNR/3D DNR |
| White Balance | White Balance: PRO / Gray |
| Exposure | Global/BLC |
| Backlight Mode | 0-7 level adjustable |
| Video Output | AHD/TVI/CVI/CVBS Switch by UTC |
| Language | Simplified Chinese/Traditional Chinese/French/Italian/Spanish/Polish/Russian/ Portuguese/ Japanese/Korean/English |
| Audio | |
| Audio Input | No |
| Audio Output | No |
| Interface | |
| Video Output | 1 HD analog output |
| Power | 1 DC power port |
| General | |
| Type | Varifocal Metal Dome Camera |
| Power Supply | 12V DC±10% |
| Lightning Protection | Support |
| Power Consumption | Max 4W |
| Working Humidity | Relative humidity less than 90% |
| Operating Temperature | -20°C to [$add]50°C (-14°F to 122°F) |
| Storage Temperature | -40°C to [$add]60°C (-40°F to 140°F) |
