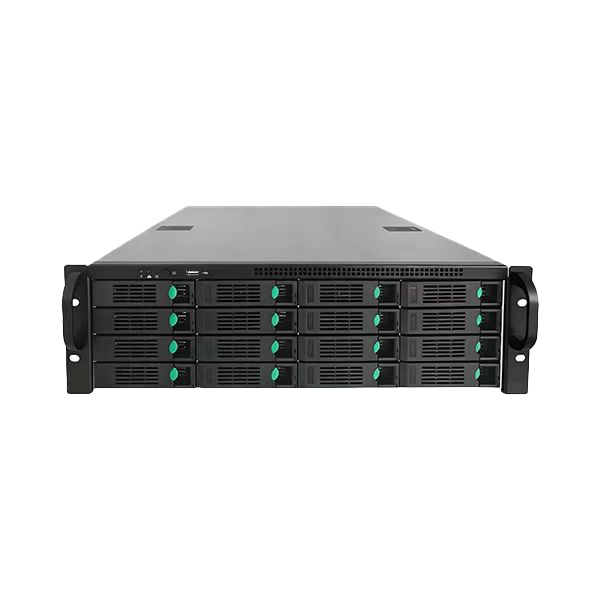

4K 64CH NVR 16HDD Series

         Model

NVR-4K8A64R-A/D/G/B16/R

Video Input

IP Camera Input

64CH

Incoming Bandwidth

500Mbps

Outgoing Bandwidth

500Mbps

Video Output

Video Output

1) Mode 1: 1 pcs HDMI output (12MP/D1[$add]64 CH Preview[$add]16CH playback)

2) Mode 2: 2 pcs HDMI output (12MP/D1[$add]2 screens 36[$add]36 CH Preview[$add]16CH playback)

VGA Output

1920 × 1080, 1280 × 1024, 1024 × 768

Different Source Output

Support

Decoding Capacity

1ch 12MP, 4ch 8MP, 16ch 4MP, 32ch 1080p

Decoding Format

H.265, H.265[$add], H.264, H.264[$add]

Dual Stream

Support

Multi-screen Display

1st Screen: 1/4/8/9/16/32/36/64

2nd Screen: 1/4/8/9/16

Other Function

Smart Analysis

Area Intrusion, Loitering, Line-crossing Detection, Illegal Vehicle Detection, Absent Detection, Retrograde Detection (need front end IPC supported)

Smart Functions

Human Detection and Vehicle Detection

Motion Detection

Support

Online Upgrade

Supports online NVR upgrade

IPC Upgrade

Support (specified model IPC)

Other

Support Channel Tour Round Grouping / RTMP push

Recording

Resolution

12MP/8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Recording Mode

Manual, schedule, motion detection, timing, alarm, stop

Trigger Events

Motion Detection, Video Loss, Alarm in, IVS

Playback and Backup

Sync Playback

16/9/4/1

Search Mode

Search by time, calendar, event, channel

Backup Mode

USB Device/Network

Alarm

General Alarm

Motion Detection, Video Loss, Alarm in, Alarm out

Intelligent Analysis

Area Intrusion, Loitering, Line-crossing Detection, Illegal Vehicle Detection,Absent

Detection, Retrograde Detection (need front end IPC supported) Human Detection and Vehicle Detection

Abnormal Alarm

Disk Alarm, IP Address Conflict, Network Disconnect

Event Action

Alarm Capture, send alarm information by email

Network

Network Protocols

DDNS,EMAIL,IPv4,HTTP,HTTPs,DNS,SMTP,RTSPUPNP,NTP,DHCP,RTSP,PPPoE,P2P,I9

ONVIF

ONVIF (Profile S/T/G/M), SDK, CGI

APP

Iphone, Android – 5 Agent for remote access

PC

Support 5 agent for viewing and playback

Login

HTML5 remote login operation

Storage

SATA

16*SATA HDD, Max 16TB HDD for each

Storage Path

Local hard disk, Network HDD (IPSAN, NAS)

Backup method

USB portable HDD, Memory Flash

RAID

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 and N[$add]1 failover

Redundant Recording

Yes

Interface

HDD Interface

16 SATA interfaces, up to 16TB capacity for each disk

Network Interface

2 × RJ-45, 10/100/1000 Mbps

HDMI

2

VGA

1

Audio I/O

1/1

Alarm I/O

16/8

USB Interface

4 × USB 2.0

RS-485

1

Reset Button

Support

General

Power Supply

AC 110V-220V 200W 50-60HZ, 2 power supply

Power Consumption

≤450W

Operating Conditions

Temperature:  -10℃∼55℃;  Humidity: 10%∼90%

Storage Conditions

Less than 90% RH

Certifications

CE/FCC

Dimensions

Equipment: 431.5X521.2X133.2mm
