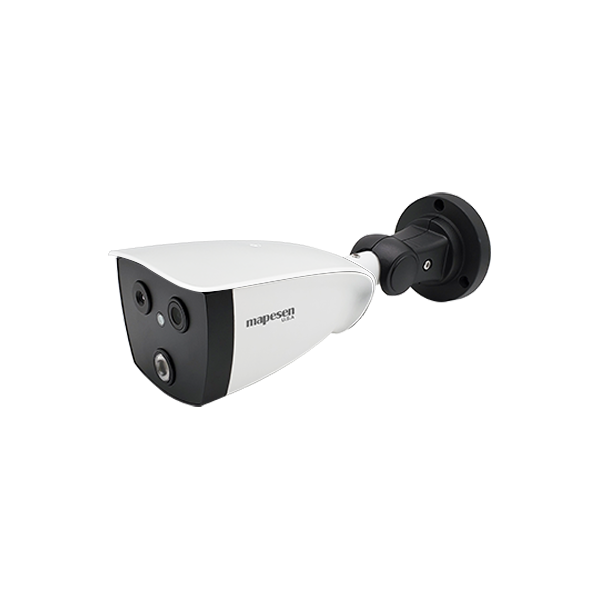

BF503 AI Binocular Fever Detecting Thermal Camera

Model NO

MP-BF503AI-TM

Thermal

Sensor

VOx Uncooled Thermal Sensor Technology

Resolution

 256x192

Pixel Interval

 12μm

NETD

 ≤60mk (@25℃，F#=1.0)

Detection Accuracy

 Target Temperature:35℃-38℃, accuracy ±0.3℃;

 Target Temperature:20℃-33℃ or 38℃-50℃, accuracy ±0.6℃;

Other Temperature: Accuracy±2℃

Field of View

 Horizontal Angle:35°, Vertical Angle:27°

Image Mode

 Blackhot / Whitehot / Ironrow / Rainbow and etc, multi-color modes selectable

Optical

Image Sensor

 1/2.8” Progressive Scan CMOS

Resolution

 1920x1080P@25fps

Focal Length

 4mm

Field of View

 Horizontal Angle:84°, Vertical Angle:45°

Mini. Illumination

 0.005Lux@F1.2 Color mode, 0.001Lux@F1.2(B/W)

WDR

 DWDR

Noise Reduction

 2D DNR;3D DNR

BLC

 Yes

Dynamic Range

 ≥80dB

S/N Ratio

 ≥46dB (AGC OFF)

 AI

 Face Snapshot

 Built-in DL AI algorithm, support 20-30pcs faces detection simulatenously, face detection, exposure, score, screening, Snapshot and upload, support FTP, HTTP, etc multi-method to upload human face,shoulder, above the waist, whole body,original pic, etc pictures.

 Function

Temperature Detection

 Support detection of all monitoring area or specified area

Abnormal Temperature Alarm

 High temperature limits, Low temperature limits, the temperature difference of

specified zone

Network Protocol

 Support RTSP, RTP, TCP, UDP, UPNP, DHCP, PPPoE protocol etc.

Network Interface

 1CH 10/10 BaseT Ethernet, RJ45 port

Alarm Interface

1CH input/output

Audio Interface

1CH input/output

 General

Working Temperature

 -20°C ~55°C

Working Humidity

 0%-90% RH

Protection Level

 IP67; TVS 6000V Lightning Protection,2K Surge Protection and Voltage Transient Protection

Power Consumption

 ≤5W

Dimension(Product)

 246x101x81mm(with bracket)

 Weight

 1.5KG(including package)
