80B 4G People Counting Camera

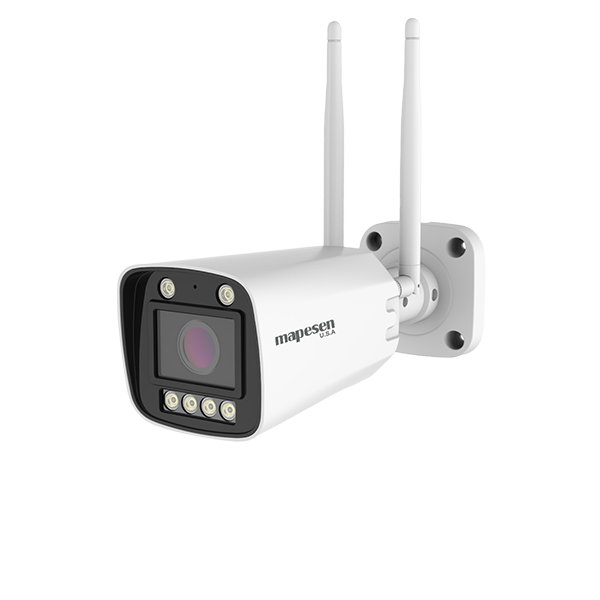

6MP 4G People Counting Sentrust Network Bullet Camera

4G · 6MP · Efficient H.265+ Compression Technology · Advanced people counting with statistics for entry, exit, pass-through, and remaining occupancy · Capable of detecting 40x40px head targets in 1080P, Optimal detection at 60x60px.

    Products
      FEATURE
    · 4G, Free Cable, Place Anywhere.

    · 1/3" 6MP low illumination CMOS sensor.

    · Advanced people counting with statistics for entry, exit, pass-through, and remaining occupancy.

    · Based on head detection.

    · Capable of detecting 40x40px head targets in 1080P,Optimal detection at 60x60px.

    · Support two-way Audio.

    · Supports alerts via E-mail, Client Software, and Mobile App Push Notification.

    · Reset via Web Browser and Mobile App.

    · DC12V,DWDR,3D DNR,Exposure Setting,Defog,IP65/IP66 Waterproof.


      APPLICATION

      Crowd Flow Analysis Cameras are widely used in various venues to improve management efficiency, optimize resource allocation, enhance services, and ensure safety.

    · Retail Stores and Shopping Malls:
      - Monitoring daily foot traffic, analyzing peak hours and hotspot areas to optimize product placement and staff allocation.

    · Transportation Hubs:
       - Counting passengers at airports, train stations, subway stations, etc., to improve operational efficiency and safety management.

    · Public Places:
      - Parks, exhibition halls, stadiums, museums, etc., managing visitor movement, preventing overcrowding, and ensuring safety.

    · Office Buildings and Business Centers:
      - Monitoring entry and exit numbers, managing access and flow, and ensuring security.

    · Cultural and Entertainment Venues:
      - Movie theaters, performance venues, entertainment centers, etc., collecting visitor data for market analysis.

    · Scenic Spots and Tourist Attractions:
      - Monitoring visitor numbers and flow trends to assist in management and maintaining order.

    · Urban Management:
      - Counting foot traffic in public spaces for infrastructure planning, traffic dispatch, and emergency response.

    · Safety and Emergency Response:
      - Monitoring crowded areas to respond to sudden incidents.

     Model Number

    80BAI60LFA2-TBA-PC-4G

    System

    System Processor

    Embedded Linux, RK1106G Processor,1 TOPS Computing Power.

    Image Sensor

    1/3" low illumination CMOS sensor OS04D10

    Min. Illumination

    0 Lux(IR ON)

    Lens

    Lens Type

    6mm Fixed Lens @F1.6

    Lens Resolution

    6MP

    Illuminator

    Light Distance

    Warm Light 60m,IR Light 80m

    IR LEDs

    6pcs Hybrid Light

    Day & Night Mode

    Hybrid Light Mode/ Infrared Mode/ Full Color Mode

    Video

    Max. Image Resolution

    6MP(3200x1800)

    Video Compression

    H.265/H.264

    Frame Rate

    Main Stream:

    25fps:3200x1800,2880x1620,2560x1440,2304x1296,1920x1080

    Secondary Stream:

    25fps:720x576,720x480,704x576,640x360,640x480,512x288,352x288

    Video Bit Rate

    Main Stream:256~8192Kbps,default 3072Kbps

    Secondary Stream:68~1024Kbps,default 682Kbps

    Image Settings

    Support Brightness,contrast,saturation,and sharpness adjustment

    WDR

    DWDR

    Synchronization

    Inter-Sync

    SNR

    52dB

    Noise Reduction

    3D NR

    Defog

    Support

    Exposure Setting

    Auto

    General Features

    Time Configruration, OSD Configuration,Privacy Masking,Log Management

    Audio

    Audio Input

    Support, built-in microphones

    Audio Output

    Support, built-in speaker

    Audio Compression

    G.711A/U

    Network

    Network Connection Mode

    4G

    Networking Protocol

    HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS

    Interface Protocol(API)

    ONVIF,GB28181

    Web Access

    Support IE8[$add],Chrome18[$add],Firefox5.0[$add],Safari5.02[$add]browser,support Chinese and English

    Simultaneous Preview Channels

    A maximum of 16 concurrent streams per client

    Event

    People Counting

    Advanced people counting with statistics for entry, exit, pass-through,

    and remaining occupancy

    Based on head detection

    Capable of detecting 40x40px head targets in 1080P.

    Optimal detection at 60x60px.

    Smart Event

    Motion Detection(human), Intrusion Detection, Tripwire Detection,

    Defocus Detection, Video Occlusion Detection

    Linkage

    Supports alerts via E-mail, Client Software, and Mobile App Push Notification.

    Interface

    Ethernet Interface

    1 RJ45 10M/100M self-adaptive Ethernet port

    On-Board Storage

    Support, Max 512GB SD card

    Audio

    YES, Supports external amplifier

    Alarm

    YES

    RS-485

    No

    Reset

    No

    Antennna

    2PCS

    General

    User Management

    Supports up to 12 users with 3-level permissions: Administrator, Operator, and Guest.

    Restore Factory Settings

    Reset via Web Browser and Mobile App

    Power Supply

    DC12V±10%

    Power Consumption

    <6W

    Surge Protection

    4KV

    Housing

    Metal Bullet

    Weather Proof

    IP66

    Working Temperature

    -20 °C to 60 °C

    Working Humidity

    10%-90% (Non-condensing)
