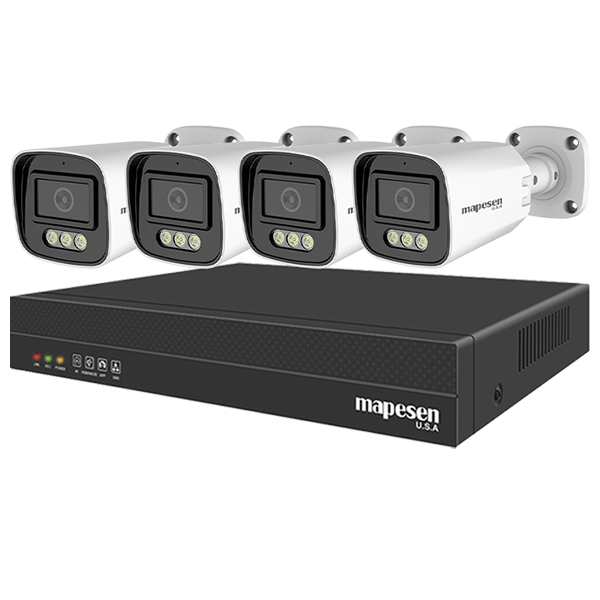

4CH L2K NVR KIT Series
4CH 4MP 5MP 4K AI Analysis POE Camera Kit
Smart Hybrid Light · Intelligent AI Analytics · Human Detection · Two-Way Audio · ONVIF · DWDR/Real WDR · 3D DNR · IP67 Waterproof · Plug & Play · Support 1 HDD(16TB)
4CH 4MP 5MP 4K AI Analysis POE Camera Kit
| Model | NVR204PL2KQ401LFA2 | |
| 4CH POE NVR | ||
| Operating System | Embedded LINUX | |
| Video & Audio | ||
| Incoming Bandwidth | 80Mbps | |
| IPC Input | 8CH*4K/5MP/3MP/2MP/960P/720P | |
| IP channel Resolution | Main stream: up to 3840×2160Auxiliary stream: D1/CIF | |
| Video Compression | Smart H.265/H.265 /H.264 | |
| Audio Decoding | G.711A/G.711U | |
| Preview | 4K/5MP/4MP/3MP/1080P/960P/720P | |
| Multi-screen Preview | Multi-screen Split 1/2/4 screen real-time preview | |
| Split Screen Decoding | 1(4K),4(4*1080P) | |
| Other Function | ||
| Smart Detection | Humanoid Detection, Line-Crossing Detection, Area Intrusion, Loitering, Absent Detection, Vehicle Illegal Parking, Vehicle Retrograde (need front end IPC supported) | |
| Motion Detection | Support | |
| Buzzer | Support buzzer alarm | |
| PA System | Support | |
| Alarm Push | Alarm Capture, send alarm information by email | |
| Online Upgrade | Supports online NVR upgrade | |
| IPC Upgrade | Support (specified model IPC) | |
| Other | Support Channel Tour Round GroupingRTMP push | |
| Recording & Playback | ||
| Recording Mode | Timing recording, Alarm recording, timing and alarm recording | |
| Playback | NVR synchronous playback 4CH (1*4K); PC client support maximum 4CH remote video playback | |
| Playback Mode | Regular payback, event playback | |
| Storage & Backup | ||
| Video Storage | HDD, Network | |
| Backup Mode | Network, USB device, mobile hard disk | |
| Network | ||
| Network Protocol | TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181 etc. | |
| POE Port | Single port max 15.4W(IEEE802.3af),Single port max 30W(IEEE802.3at) | |
| APP | Supports iPhone, Android | |
| PC | Support | |
| Login | HTML5 remote login operation | |
| User Management | Maximum support 32 local user | |
| Interface | ||
| Network Interface | 1pcs RJ45 10M/100M self-adaptive Ethernet interface | |
| USB Interface | 2pcs USB 2.0 | |
| Video Output | VGA:/ | |
| HDMI:1CH 3840*2160,1920×1080,1440x900,1280×1024,1280×800,1024×768 | ||
| Audio I/O | Support HDMI audio output, support 2PIN extended audio input interface and 3PIN extended audio output interface | |
| Alarm I/O | No | |
| SATA | 1 SATA, maximum support 16TB hard disk | |
| RS-485 | No | |
| HDMI | 1PC | |
| General | ||
| Power Supply | DC 52V 1.25A | |
| Power Consumption | ≤65W | |
| Working Environment | -10℃- [$add]55℃ | |
| Working Humidity | 10%—90%, Atm:86kpa—106kpa | |
| Camera | Metal Bullet*4PCS | |
| Image Sensor | 1/2.9" low illumination CMOS sensor | |
| Max. Image Resolution | 4MP(2560*1440)@20fps | |
| Frame Rate | Main Stream:4MP(2560*1440@20fps),3MP(2304*1296@20fps),2MP(1920*1080@25fps/30fps)Sub-Stream: D1(720*576),864*480,VGA(640*360),Q720P(640*360),CIF(352*288),320*240 | |
| Video Compression | S265/H265/H264 | |
| Video Bit Rate | 16Kbps-4000kbps support self-adjustable as needed | |
| Image Settings | Brightness,contrast,saturation,sharpness,chroma adjustable | |
| Character Overlay(OSD) | Multi-line OSD with Customizable Color,Customizable OSD Overlays (Title, Time, Date) | |
| Audio Compression | G.711A/U 64Kbps | |
| Two-way Audio | Built-in microphone and speaker, support two-way audio | |
| Light Distance | Infrared distance 40m, Full Color distance 30m | |
| IR LEDs | 3pcs hybrid-light LEDs | |
| Day & Night Mode | Hybrid Light Mode/ Infrared Mode/ Full Color | |
| Lens | Fixed lens 3.6mm @F1.6 | |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR | |
| WDR | Digital WDR | |
| Shutter Time | Auto(1/5 - 1/100000) | |
| White Balance | Support | |
| Gain Control | Support | |
| BLC | Support | |
| HLC | Support | |
| Defog | Off/ON | |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip | |
| Noise Reduction | 3D NR (Off/Low/Middle/High) | |
| Alarm | Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm | |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming | |
| Motion Detection | Set detection area,can set multi-level sensitivity | |
| Privacy Mask Alarm | Support 1 area | |
| Privacy Mask | Support 4 area | |
| Human Detection | It can detect target ≤5-10 persons at the same timeHumanoid pixel ≥40X40Detection Ratio ≥99%(meet above requirement)Capture Corresponding Speed ≤1sSupport specified area detection, default full screenError detection rate 2% or lessMaximum detection frame rate is 5fps /s | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,PPPoE,RTSP,RTMP,DDNS,UPNP,FTP,NTP,SMTP | |
| Connection Protocol | ONVIF, SLINK,GB28181(optional) | |
| Web Access | Support HTML5 remote login operation(Free plug-in) | |
| Security Mode | Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification | |
| Power Supply | DC 12V/POE | |
| Type | Metal Bullet Camera | |
| Power Consumption | Max 6W | |
| Working Humidity | 10%-95% RH(Non-condensing) | |
| Working Temperature | -10°C to [$add]50°C | |
| Package | ||
| 4CH POE NVR *1PC | ||
| 4MP Smart Hybrid Light Metal Bullet POE IP Camera * 4PCS | ||
| 52V 1.25A Power Adaptor * 1PC | ||
| 1M Network Cable * 1PC | ||
| 20M Network Cable * 4PCS | ||
| Model | NVR204PL2KQ402LFA2 | |
| 4CH POE NVR | ||
| Operating System | Embedded LINUX | |
| Video & Audio | ||
| Incoming Bandwidth | 80Mbps | |
| IPC Input | 8CH*4K/5MP/3MP/2MP/960P/720P | |
| IP channel Resolution | Main stream: up to 3840×2160Auxiliary stream: D1/CIF | |
| Video Compression | Smart H.265/H.265 /H.264 | |
| Audio Decoding | G.711A/G.711U | |
| Preview | 4K/5MP/4MP/3MP/1080P/960P/720P | |
| Multi-screen Preview | Multi-screen Split 1/2/4 screen real-time preview | |
| Split Screen Decoding | 1(4K),4(4*1080P) | |
| Other Function | ||
| Smart Detection | Humanoid Detection, Line-Crossing Detection, Area Intrusion, Loitering, Absent Detection, Vehicle Illegal Parking, Vehicle Retrograde (need front end IPC supported) | |
| Motion Detection | Support | |
| Buzzer | Support buzzer alarm | |
| PA System | Support | |
| Alarm Push | Alarm Capture, send alarm information by email | |
| Online Upgrade | Supports online NVR upgrade | |
| IPC Upgrade | Support (specified model IPC) | |
| Other | Support Channel Tour Round GroupingRTMP push | |
| Recording & Playback | ||
| Recording Mode | Timing recording, Alarm recording, timing and alarm recording | |
| Playback | NVR synchronous playback 4CH (1*4K); PC client support maximum 4CH remote video playback | |
| Playback Mode | Regular payback, event playback | |
| Storage & Backup | ||
| Video Storage | HDD, Network | |
| Backup Mode | Network, USB device, mobile hard disk | |
| Network | ||
| Network Protocol | TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181 etc. | |
| POE Port | Single port max 15.4W(IEEE802.3af),Single port max 30W(IEEE802.3at) | |
| APP | Supports iPhone, Android | |
| PC | Support | |
| Login | HTML5 remote login operation | |
| User Management | Maximum support 32 local user | |
| Interface | ||
| Network Interface | 1pc RJ45 10M/100M self-adaptive Ethernet interface | |
| USB Interface | 2pcs USB 2.0 | |
| Video Output | VGA:/ | |
| HDMI:1CH 3840*2160,1920×1080,1440x900,1280×1024,1280×800,1024×768 | ||
| Audio I/O | Support HDMI audio output, support 2PIN extended audio input interface and 3PIN extended audio output interface | |
| Alarm I/O | No | |
| SATA | 1 SATA, maximum support 16TB hard disk | |
| RS-485 | No | |
| HDMI | 1PC | |
| General | ||
| Power Supply | DC 52V 1.25A | |
| Power Consumption | ≤65W | |
| Working Environment | -10℃- [$add]55℃ | |
| Working Humidity | 10%—90%, Atm:86kpa—106kpa | |
| Camera | Metal Bullet*4PCS | |
| Image Sensor | 1/2.8" low illumination CMOS sensor | |
| Max. Image Resolution | 4MP(2560*1440)@20fps | |
| Frame Rate | Main Stream: 4MP(2560*1440)@20fps,3MP(2304*1296)@20fps,2MP(1920*1080@25fpsSub Stream:D1(720*576),864*480,VGA(640*360),Q720P(640*360),CIF(352*288),320*240 | |
| Video Compression | S.265/H.265/H.264 | |
| Video Bit Rate | 16Kbps-4000Kbps support self-adjustable as needed | |
| Image Settings | Brightness,contrast,saturation,sharpness,chroma adjustable | |
| Character Overlay(OSD) | Title, Time & Date Overlay, Multi-line OSD, OSD Color Selectable | |
| Audio Compression | G.711A/U 64Kbps | |
| Two-way Audio | Built-in microphone and speaker, support two-way audio | |
| Light Distance | Infrared distance 40m, Full Color distance 30m | |
| IR LEDs | 3pcs hybrid-light LEDs | |
| Day & Night Mode | Hybrid Light Mode/ Infrared Mode/ Full Color | |
| Lens | Fixed lens 3.6mm @F1.6 | |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR | |
| WDR | Digital WDR(Off/Low/Middle/High) | |
| Shutter Time | Auto(1/5 - 1/100000) | |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip | |
| Noise Reduction | 3D NR (Off/Low/Middle/High) | |
| Alarm | Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm | |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming | |
| Motion Detection | Set detection area,can set multi-level sensitivity | |
| Privacy Mask Alarm | Support 1 area | |
| Privacy Mask | Support 4 area | |
| Human Detection | It can detect target ≤5-10 persons at the same timeHumanoid pixel ≥40X40Detection Ratio ≥99%(meet above requirement)Capture Corresponding Speed ≤1sSupport specified area detection, default full screenError detection rate 2% or lessMaximum detection frame rate is 5fps /s | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP | |
| Connection Protocol | SLINK,ONVIF,GB28181(optional) | |
| Web Access | Support HTML5 remote login operation(Free plug-in) | |
| Security Mode | Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification | |
| Power Supply | DC 12V/POE | |
| Type | Metal Bullet Camera | |
| Power Consumption | Max 6W | |
| Working Humidity | 10%-95% RH(Non-condensing) | |
| Working Temperature | -10°C to [$add]50°C | |
| Package | ||
| 4CH POE NVR *1PC | ||
| 4MP Smart Hybrid Light Metal Bullet POE IP Camera * 4PCS | ||
| 52V 1.25A Power Adaptor * 1PC | ||
| 1M Network Cable * 1PC | ||
| 20M Network Cable * 4PCS | ||
| Model | NVR204PL2KQ504LFA2 | |
| 4CH POE NVR | ||
| Operating System | Embedded LINUX | |
| Video & Audio | ||
| Incoming Bandwidth | 80Mbps | |
| IPC Input | 8CH*4K/5MP/3MP/2MP/960P/720P | |
| IP channel Resolution | Main stream: up to 3840×2160Auxiliary stream: D1/CIF | |
| Video Compression | Smart H.265/H.265 /H.264 | |
| Audio Decoding | G.711A/G.711U | |
| Preview | 4K/5MP/4MP/3MP/1080P/960P/720P | |
| Multi-screen Preview | Multi-screen Split 1/2/4 screen real-time preview | |
| Split Screen Decoding | 1(4K),4(4*1080P) | |
| Other Function | ||
| Smart Detection | Humanoid Detection, Line-Crossing Detection, Area Intrusion, Loitering, Absent Detection, Vehicle Illegal Parking, Vehicle Retrograde (need front end IPC supported) | |
| Motion Detection | Support | |
| Buzzer | Support buzzer alarm | |
| PA System | Support | |
| Alarm Push | Alarm Capture, send alarm information by email | |
| Online Upgrade | Supports online NVR upgrade | |
| IPC Upgrade | Support (specified model IPC) | |
| Other | Support Channel Tour Round GroupingRTMP push | |
| Recording & Playback | ||
| Recording Mode | Timing recording, Alarm recording, timing and alarm recording | |
| Playback | NVR synchronous playback 4CH (1*4K); PC client support maximum 4CH remote video playback | |
| Playback Mode | Regular payback, event playback | |
| Storage & Backup | ||
| Video Storage | HDD, Network | |
| Backup Mode | Network, USB device, mobile hard disk | |
| Network | ||
| Network Protocol | TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181 etc. | |
| POE Port | Single port max 15.4W(IEEE802.3af),Single port max 30W(IEEE802.3at) | |
| APP | Supports iPhone, Android | |
| PC | Support | |
| Login | HTML5 remote login operation | |
| User Management | Maximum support 32 local user | |
| Interface | ||
| Network Interface | 1pcs RJ45 10M/100M self-adaptive Ethernet interface | |
| USB Interface | 2pcs USB 2.0 | |
| Video Output | VGA:/ | |
| HDMI:1CH 3840*2160,1920×1080,1440x900,1280×1024,1280×800,1024×768 | ||
| Audio I/O | Support HDMI audio output, support 2PIN extended audio input interface and 3PIN extended audio output interface | |
| Alarm I/O | No | |
| SATA | 1 SATA, maximum support 16TB hard disk | |
| RS-485 | No | |
| HDMI | 1PC | |
| General | ||
| Power Supply | DC 52V 1.25A | |
| Power Consumption | ≤65W | |
| Working Environment | -10℃- [$add]55℃ | |
| Working Humidity | 10%—90%, Atm:86kpa—106kpa | |
| Camera | Metal Bullet*4PCS | |
| Image Sensor | 1/2.9" low illumination CMOS sensor | |
| Max. Image Resolution | 4MP(2560*1440)@20fps | |
| Frame Rate | Main Stream:4MP(2560*1440@20fps),3MP(2304*1296@20fps),2MP(1920*1080@25fps/30fps)Sub-Stream: D1(720*576),864*480,VGA(640*360),Q720P(640*360),CIF(352*288),320*240 | |
| Video Compression | S265/H265/H264 | |
| Video Bit Rate | 16Kbps-4000kbps support self-adjustable as needed | |
| Image Settings | Brightness,contrast,saturation,sharpness,chroma adjustable | |
| Character Overlay(OSD) | Multi-line OSD with Customizable Color,Customizable OSD Overlays (Title, Time, Date) | |
| Audio Compression | G.711A/U 64Kbps | |
| Two-way Audio | Built-in microphone and speaker, support two-way audio | |
| Light Distance | Infrared distance 40m, Full Color distance 30m | |
| IR LEDs | 3pcs hybrid-light LEDs | |
| Day & Night Mode | Hybrid Light Mode/ Infrared Mode/ Full Color | |
| Lens | Fixed lens 3.6mm @F1.6 | |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR | |
| WDR | Digital WDR | |
| Shutter Time | Auto(1/5 - 1/100000) | |
| White Balance | Support | |
| Gain Control | Support | |
| BLC | Support | |
| HLC | Support | |
| Defog | Off/ON | |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip | |
| Noise Reduction | 3D NR (Off/Low/Middle/High) | |
| Alarm | Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm | |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming | |
| Motion Detection | Set detection area,can set multi-level sensitivity | |
| Privacy Mask Alarm | Support 1 area | |
| Privacy Mask | Support 4 area | |
| Human Detection | It can detect target ≤5-10 persons at the same timeHumanoid pixel ≥40X40Detection Ratio ≥99%(meet above requirement)Capture Corresponding Speed ≤1sSupport specified area detection, default full screenError detection rate 2% or lessMaximum detection frame rate is 5fps /s | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,PPPoE,RTSP,RTMP,DDNS,UPNP,FTP,NTP,SMTP | |
| Connection Protocol | ONVIF, SLINK,GB28181(optional) | |
| Web Access | Support HTML5 remote login operation(Free plug-in) | |
| Security Mode | Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification | |
| Power Supply | DC 12V/POE | |
| Type | Metal Bullet Camera | |
| Power Consumption | Max 6W | |
| Working Humidity | 10%-95% RH(Non-condensing) | |
| Working Temperature | -10°C to [$add]50°C | |
| Package | ||
| 4CH POE NVR *1PC | ||
| 4MP Smart Hybrid Light Metal Bullet POE IP Camera * 4PCS | ||
| 52V 1.25A Power Adaptor * 1PC | ||
| 1M Network Cable * 1PC | ||
| 20M Network Cable * 4PCS | ||
| Model | NVR204PL2KQ500LFA2 | |
| 4CH POE NVR | ||
| Operating System | Embedded LINUX | |
| Video & Audio | ||
| Incoming Bandwidth | 80Mbps | |
| IPC Input | 8CH*4K/5MP/3MP/2MP/960P/720P | |
| IP channel Resolution | Main stream: up to 3840×2160Auxiliary stream: D1/CIF | |
| Video Compression | Smart H.265/H.265 /H.264 | |
| Audio Decoding | G.711A/G.711U | |
| Preview | 4K/5MP/4MP/3MP/1080P/960P/720P | |
| Multi-screen Preview | Multi-screen Split 1/2/4 screen real-time preview | |
| Split Screen Decoding | 1(4K),4(4*1080P) | |
| Other Function | ||
| Smart Detection | Humanoid Detection, Line-Crossing Detection, Area Intrusion, Loitering, Absent Detection, Vehicle Illegal Parking, Vehicle Retrograde (need front end IPC supported) | |
| Motion Detection | Support | |
| Buzzer | Support buzzer alarm | |
| PA System | Support | |
| Alarm Push | Alarm Capture, send alarm information by email | |
| Online Upgrade | Supports online NVR upgrade | |
| IPC Upgrade | Support (specified model IPC) | |
| Other | Support Channel Tour Round GroupingRTMP push | |
| Recording & Playback | ||
| Recording Mode | Timing recording, Alarm recording, timing and alarm recording | |
| Playback | NVR synchronous playback 4CH (1*4K); PC client support maximum 4CH remote video playback | |
| Playback Mode | Regular payback, event playback | |
| Storage & Backup | ||
| Video Storage | HDD, Network | |
| Backup Mode | Network, USB device, mobile hard disk | |
| Network | ||
| Network Protocol | TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181 etc. | |
| POE Port | Single port max 15.4W(IEEE802.3af),Single port max 30W(IEEE802.3at) | |
| APP | Supports iPhone, Android | |
| PC | Support | |
| Login | HTML5 remote login operation | |
| User Management | Maximum support 32 local user | |
| Interface | ||
| Network Interface | 1pcs RJ45 10M/100M self-adaptive Ethernet interface | |
| USB Interface | 2pcs USB 2.0 | |
| Video Output | VGA:/ | |
| HDMI:1CH 3840*2160,1920×1080,1440x900,1280×1024,1280×800,1024×768 | ||
| Audio I/O | Support HDMI audio output, support 2PIN extended audio input interface and 3PIN extended audio output interface | |
| Alarm I/O | No | |
| SATA | 1 SATA, maximum support 16TB hard disk | |
| RS-485 | No | |
| HDMI | 1PC | |
| General | ||
| Power Supply | DC 52V 1.25A | |
| Power Consumption | ≤65W | |
| Working Environment | -10℃- [$add]55℃ | |
| Working Humidity | 10%—90%, Atm:86kpa—106kpa | |
| Camera | Metal Bullet*4PCS | |
| Image Sensor | 1/2.7" 5MP low illumination CMOS sensor | |
| Max. Image Resolution | 5MP(2880*1620)@25fps | |
| Frame Rate | Main stream:PAL: 5MP (2880x1620@25fps),4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC: 5MP(2880x1620@30fps),4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fpsSub-stream:PAL: D1(720x576)@25fps,VGA(640x480)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC: D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps | |
| Video Compression | S265/H265/H264 | |
| Video Bit Rate | 1024Kbps-8000Kbps support self-adjustable as needed | |
| Image Settings | Brightness,contrast,saturation,sharpness,chroma | |
| Character Overlay (OSD) | Title, time and date overlay, multi-line, and color of characters optional | |
| Audio Compression | G.711U/64Kbps | |
| Two-way Audio | Built-in microphone and speaker, support two-way audio | |
| Two-way Audio | Built-in microphone and speaker, support two-way audio | |
| Light Distance | Infrared distance 40m, Full Color distance 30m | |
| IR LEDs | 3pcs hybrid-light LEDs | |
| Lens | Fixed lens 3.6mm @F1.6 | |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR | |
| WDR | Digital WDR | |
| White Balance | Auto / Manual | |
| Gain Control | Support | |
| HLC | Support | |
| BLC | Support | |
| Defog | Off/Low/Middle/High | |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip | |
| Noise Reduction | 3D NR(Off/Low/Middle/High/Higher) | |
| Alarm | Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm | |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming | |
| Motion Detection | Set detection area, can set multi-level sensitivity | |
| Occlusion Alarm | Support 1 area | |
| Privacy Mask | Support 4 areas | |
| Human Detection | It can detect target ≤ 5 persons at the same timeHumanoid pixel ≥ 40X40Detection Ratio ≥99%(meet above requirement)Capture Corresponding Speed ≤1sSupport specified area detection, default full screenError detection rate 2% or lessMaximum detection frame rate is 5Fps /s | |
| Area Intrusion | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm | |
| Line-Cross Detection | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm | |
| Person Loitering | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm | |
| Absent Alarm | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail/voice broadcast alarm | |
| Vehicle illegal Parking | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm | |
| Vehicle Retrograde | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail/voice broadcast alarm | |
| Network Interface | 1xRJ45 10M/100M Ethernet Port | |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP | |
| Connection Protocol | Onvif,GB28181 | |
| Web Access | Support HTML5 remote login operation(Free plug-in) | |
| Security Mode | Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification | |
| Power Supply | DC 12V/POE | |
| Type | Outdoor Metal Bullet Camera | |
| Power Consumption | Max 6W | |
| Working Humidity | 10%-95% RH(Non-condensing) | |
| Working Temperature | -10°C to [$add]50°C | |
| Package | ||
| 4CH POE NVR *1PC | ||
| 5MP Smart Hybrid Light Metal Bullet POE IP Camera * 4PCS | ||
| 52V 1.25A Power Adaptor * 1PC | ||
| 1M Network Cable * 1PC | ||
| 20M Network Cable * 4PCS | ||
| Model | NVR204PL2KQ51WLFA2 | |
| 4CH POE NVR | ||
| Operating System | Embedded LINUX | |
| Video & Audio | ||
| Incoming Bandwidth | 80Mbps | |
| IPC Input | 8CH*4K/5MP/3MP/2MP/960P/720P | |
| IP channel Resolution | Main stream: up to 3840×2160Auxiliary stream: D1/CIF | |
| Video Compression | Smart H.265/H.265 /H.264 | |
| Audio Decoding | G.711A/G.711U | |
| Preview | 4K/5MP/4MP/3MP/1080P/960P/720P | |
| Multi-screen Preview | Multi-screen Split 1/2/4 screen real-time preview | |
| Split Screen Decoding | 1(4K),4(4*1080P) | |
| Other Function | ||
| Smart Detection | Humanoid Detection, Line-Crossing Detection, Area Intrusion, Loitering, Absent Detection, Vehicle Illegal Parking, Vehicle Retrograde (need front end IPC supported) | |
| Motion Detection | Support | |
| Buzzer | Support buzzer alarm | |
| PA System | Support | |
| Alarm Push | Alarm Capture, send alarm information by email | |
| Online Upgrade | Supports online NVR upgrade | |
| IPC Upgrade | Support (specified model IPC) | |
| Other | Support Channel Tour Round GroupingRTMP push | |
| Recording & Playback | ||
| Recording Mode | Timing recording, Alarm recording, timing and alarm recording | |
| Playback | NVR synchronous playback 4CH (1*4K); PC client support maximum 4CH remote video playback | |
| Playback Mode | Regular payback, event playback | |
| Storage & Backup | ||
| Video Storage | HDD, Network | |
| Backup Mode | Network, USB device, mobile hard disk | |
| Network | ||
| Network Protocol | TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181 etc. | |
| POE Port | Single port max 15.4W(IEEE802.3af),Single port max 30W(IEEE802.3at) | |
| APP | Supports iPhone, Android | |
| PC | Support | |
| Login | HTML5 remote login operation | |
| User Management | Maximum support 32 local user | |
| Interface | ||
| Network Interface | 1pcs RJ45 10M/100M self-adaptive Ethernet interface | |
| USB Interface | 2pcs USB 2.0 | |
| Video Output | VGA:/ | |
| HDMI:1CH 3840*2160,1920×1080,1440x900,1280×1024,1280×800,1024×768 | ||
| Audio I/O | Support HDMI audio output, support 2PIN extended audio input interface and 3PIN extended audio output interface | |
| Alarm I/O | No | |
| SATA | 1 SATA, maximum support 16TB hard disk | |
| RS-485 | No | |
| HDMI | 1PC | |
| General | ||
| Power Supply | DC 52V 1.25A | |
| Power Consumption | ≤65W | |
| Working Environment | -10℃- [$add]55℃ | |
| Working Humidity | 10%—90%, Atm:86kpa—106kpa | |
| Camera | Metal Bullet*4PCS | |
| Image Sensor | 1/2.8" 5MP low illumination CMOS sensor | |
| Max. Image Resolution | 5MP(2592x1944)@25fps | |
| Frame Rate | Main stream:5MP (2592x1944@25fps),4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps Sub-stream:D1(720x576)@25fps,VGA(640x480)@25fps,Q720P(640x360)@25fps | |
| Video Compression | S265/H265/H264 | |
| Video Bit Rate | 1024Kbps-8Mbps support self-adjustable as needed | |
| Image Settings | Brightness,Contrast,Saturation,Sharpness,Chroma | |
| Character Overlay (OSD) | Title, time and date overlay, multi-line, and color of characters optional | |
| Audio Compression | G.711U/64Kbps | |
| Two-way Audio | Built-in microphone and speaker, support two-way audio | |
| Light Distance | Infrared distance 40m, Full Color distance 30m | |
| IR LEDs | 3pcs hybrid-light LEDs | |
| Day & Night Mode | Hybrid Light Mode/ Infrared Mode/ Full Color | |
| Lens | Fixed lens 3.6mm @F1.6 | |
| Min. Illumination | Color: 0.005Lux @F1.6, B/W: 0Lux with IR on | |
| WDR | Real WDR | |
| White Balance | Support | |
| Gain Control | Support | |
| BLC | Support | |
| Defog | On/Off | |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip | |
| DNR | 3D NR (Off/Low/Middle/Mid-High/High) | |
| Alarm | Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm | |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming | |
| Motion Detection | Set detection area, can set multi-level sensitivity | |
| Privacy Mask Alarm | Support 1 area | |
| Privacy Mask | Support 4 areas | |
| Human Detection | It can detect target ≤ 5 persons at the same timeHumanoid pixel ≥ 40X40Detection Ratio ≥99%(meet above requirement)Capture Corresponding Speed ≤1sSupport specified area detection, default full screenError detection rate 2% or lessMaximum detection frame rate is 5Fps /s | |
| Network Interface | 1 RJ45 10M/100M Ethernet Port | |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,PPPoE,RTSP,RTMP,DDNS,UPNP,FTP | |
| Connection Protocol | Onvif,GB28181 | |
| Web Access | Support HTML5 remote login operation(Free plug-in) | |
| Security Mode | Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification | |
| Power Supply | DC 12V/POE | |
| Type | Outdoor Metal Bullet Camera | |
| Power Consumption | Max 6W | |
| Working Humidity | 10%-95% RH(Non-condensing) | |
| Working Temperature | -10°C to [$add]50°C | |
| Package | ||
| 4CH POE NVR *1PC | ||
| 5MP WDR Smart Hybrid Light Metal Bullet POE IP Camera * 4PCS | ||
| 52V 1.25A Power Adaptor * 1PC | ||
| 1M Network Cable * 1PC | ||
| 20M Network Cable * 4PCS | ||
| Model | NVR204PL2KQ80XLFA2 | |
| 4CH POE NVR | ||
| Operating System | Embedded LINUX | |
| Video & Audio | ||
| Incoming Bandwidth | 80Mbps | |
| IPC Input | 8CH*4K/5MP/3MP/2MP/960P/720P | |
| IP channel Resolution | Main stream: up to 3840×2160Auxiliary stream: D1/CIF | |
| Video Compression | Smart H.265/H.265 /H.264 | |
| Audio Decoding | G.711A/G.711U | |
| Preview | 4K/5MP/4MP/3MP/1080P/960P/720P | |
| Multi-screen Preview | Multi-screen Split 1/2/4 screen real-time preview | |
| Split Screen Decoding | 1(4K),4(4*1080P) | |
| Other Function | ||
| Smart Detection | Humanoid Detection, Line-Crossing Detection, Area Intrusion, Loitering, Absent Detection, Vehicle Illegal Parking, Vehicle Retrograde (need front end IPC supported) | |
| Motion Detection | Support | |
| Buzzer | Support buzzer alarm | |
| PA System | Support | |
| Alarm Push | Alarm Capture, send alarm information by email | |
| Online Upgrade | Supports online NVR upgrade | |
| IPC Upgrade | Support (specified model IPC) | |
| Other | Support Channel Tour Round GroupingRTMP push | |
| Recording & Playback | ||
| Recording Mode | Timing recording, Alarm recording, timing and alarm recording | |
| Playback | NVR synchronous playback 4CH (1*4K); PC client support maximum 4CH remote video playback | |
| Playback Mode | Regular payback, event playback | |
| Storage & Backup | ||
| Video Storage | HDD, Network | |
| Backup Mode | Network, USB device, mobile hard disk | |
| Network | ||
| Network Protocol | TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181 etc. | |
| POE Port | Single port max 15.4W(IEEE802.3af),Single port max 30W(IEEE802.3at) | |
| APP | Supports iPhone, Android | |
| PC | Support | |
| Login | HTML5 remote login operation | |
| User Management | Maximum support 32 local user | |
| Interface | ||
| Network Interface | 1pcs RJ45 10M/100M self-adaptive Ethernet interface | |
| USB Interface | 2pcs USB 2.0 | |
| Video Output | VGA:/ | |
| HDMI:1CH 3840*2160,1920×1080,1440x900,1280×1024,1280×800,1024×768 | ||
| Audio I/O | Support HDMI audio output, support 2PIN extended audio input interface and 3PIN extended audio output interface | |
| Alarm I/O | No | |
| SATA | 1 SATA, maximum support 16TB hard disk | |
| RS-485 | No | |
| HDMI | 1PC | |
| General | ||
| Power Supply | DC 52V 1.25A | |
| Power Consumption | ≤65W | |
| Working Environment | -10℃- [$add]55℃ | |
| Working Humidity | 10%—90%, Atm:86kpa—106kpa | |
| Camera | Metal Bullet*4PCS | |
| Image Sensor | 1/2.66"color CMOS | |
| Max. Image Resolution | 8MP(3840x2160)@25fps | |
| Frame Rate | Main stream:PAL: 8MP(3840x2160@25fps) ,5MP (2592x1904@25fps,)4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC:8MP(3072x2048@25fps),5MP(2592x1904@30fps)4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fps,Sub-stream:PAL:D1(720x576)@25fps,VGA(640x480)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps | |
| Video Compression | S265/H265/H264 | |
| Video Bit Rate | 1024Kbps-8000Kbps support self-adjustable as needed | |
| Image Settings | Brightness,contrast,saturation,sharpness,chroma | |
| Character Overlay (OSD) | Title, time and date overlay, multi-line, and color of characters optional | |
| Audio Compression | G.711A/U 8k 64bit | |
| Two-way Audio | Built-in microphone and speaker, support two-way audio | |
| Light Distance | Infrared distance 40m, Full Color distance 30m | |
| IR LEDs | 3pcs hybrid-light LEDs | |
| Day & Night Mode | Hybrid Light Mode/ Infrared Mode/B&W | |
| Lens | Fixed lens 3.6mm @F1.6 | |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR | |
| WDR | Digital WDR | |
| Shutter Time | Auto(1/5 - 1/100000) | |
| White Balance | Auto / Manual | |
| Gain Control | Support | |
| BLC | Support | |
| Defog | Off/Low/Middle/High | |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip | |
| Noise Reduction | 3D NR(Off/Low/Middle/High/Higher) | |
| Alarm | Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm | |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming | |
| Motion Detection | Set detection area, can set multi-level sensitivity | |
| Occlusion Alarm | Support 1 area | |
| Privacy Mask | Support 4 areas | |
| Human Detection | It can detect target ≤5-10 persons at the same timeHumanoid pixel ≥40X40Detection Ratio ≥99%(meet above requirement)Capture Corresponding Speed ≤1sSupport specified area detection, default full screenError detection rate 2% or lessMaximum detection frame rate is 5fps /s | |
| Area Intrusion | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail / voice broadcast alarm | |
| Line-Cross Detection | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm | |
| Person Loitering | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail / voice broadcast alarm | |
| Absent Alarm | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail / voice broadcast alarm | |
| Vehicle illegal Parking | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail / voice broadcast alarm | |
| Vehicle Retrograde | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail / voice broadcast alarm | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| Networking Protocol | TCP/IP, UDP,HTTP,HTPS,DHCP,PPPoE,RTSP,RTMP,DDNS,UPNP,FTP | |
| Connection Protocol | ONVIF,SLINK | |
| Web Access | Support HTML5 remote login operation(Free plug-in) | |
| Security Mode | Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification | |
| Power Supply | DC 12V/POE | |
| Type | Metal Bullet Camera | |
| Power Consumption | Max 6W | |
| Working Humidity | 10%-95% RH(Non-condensing) | |
| Working Temperature | -10°C to [$add]50°C | |
| Package | ||
| 4CH POE NVR *1PC | ||
| 8MP Smart Hybrid Light Metal Bullet POE IP Camera * 4PCS | ||
| 52V 1.25A Power Adaptor * 1PC | ||
| 1M Network Cable * 1PC | ||
| 20M Network Cable * 4PCS | ||
| Model | NVR204PL2KQ81WLFA2 | |
| 4CH POE NVR | ||
| Operating System | Embedded LINUX | |
| Video & Audio | ||
| Incoming Bandwidth | 80Mbps | |
| IPC Input | 8CH*4K/5MP/3MP/2MP/960P/720P | |
| IP channel Resolution | Main stream: up to 3840×2160Auxiliary stream: D1/CIF | |
| Video Compression | Smart H.265/H.265 /H.264 | |
| Audio Decoding | G.711A/G.711U | |
| Preview | 4K/5MP/4MP/3MP/1080P/960P/720P | |
| Multi-screen Preview | Multi-screen Split 1/2/4 screen real-time preview | |
| Split Screen Decoding | 1(4K),4(4*1080P) | |
| Other Function | ||
| Smart Detection | Humanoid Detection, Line-Crossing Detection, Area Intrusion, Loitering, Absent Detection, Vehicle Illegal Parking, Vehicle Retrograde (need front end IPC supported) | |
| Motion Detection | Support | |
| Buzzer | Support buzzer alarm | |
| PA System | Support | |
| Alarm Push | Alarm Capture, send alarm information by email | |
| Online Upgrade | Supports online NVR upgrade | |
| IPC Upgrade | Support (specified model IPC) | |
| Other | Support Channel Tour Round GroupingRTMP push | |
| Recording & Playback | ||
| Recording Mode | Timing recording, Alarm recording, timing and alarm recording | |
| Playback | NVR synchronous playback 4CH (1*4K); PC client support maximum 4CH remote video playback | |
| Playback Mode | Regular payback, event playback | |
| Storage & Backup | ||
| Video Storage | HDD, Network | |
| Backup Mode | Network, USB device, mobile hard disk | |
| Network | ||
| Network Protocol | TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181 etc. | |
| POE Port | Single port max 15.4W(IEEE802.3af),Single port max 30W(IEEE802.3at) | |
| APP | Supports iPhone, Android | |
| PC | Support | |
| Login | HTML5 remote login operation | |
| User Management | Maximum support 32 local user | |
| Interface | ||
| Network Interface | 1pcs RJ45 10M/100M self-adaptive Ethernet interface | |
| USB Interface | 2pcs USB 2.0 | |
| Video Output | VGA:/ | |
| HDMI:1CH 3840*2160,1920×1080,1440x900,1280×1024,1280×800,1024×768 | ||
| Audio I/O | Support HDMI audio output, support 2PIN extended audio input interface and 3PIN extended audio output interface | |
| Alarm I/O | No | |
| SATA | 1 SATA, maximum support 16TB hard disk | |
| RS-485 | No | |
| HDMI | 1PC | |
| General | ||
| Power Supply | DC 52V 1.25A | |
| Power Consumption | ≤65W | |
| Working Environment | -10℃- [$add]55℃ | |
| Working Humidity | 10%—90%, Atm:86kpa—106kpa | |
| Camera | Metal Bullet*4PCS | |
| Image Sensor | 1/2.7"color CMOS | |
| Max. Image Resolution | 8MP(3840x2160)@25fps | |
| Frame Rate | Main stream:PAL: 8MP(3840x2160@25fps) , 5MP (2592x1904@25fps,)4MP(2560x1440@25fps), 3MP(2304x1296@25fps), 2MP(1920x1080@25fps NTSC:8MP(3072x2048@25fps),5MP(2592x1904@25fps) 4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps,Sub-stream:PAL:D1(720x576)@25fps,VGA(640x480)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps | |
| Video Compression | S265/H265/H264 | |
| Video Bit Rate | 1024Kbps-8000Kbps support self-adjustable as needed | |
| Image Settings | Brightness,Contrast,Saturation,Sharpness,Chroma | |
| Character Overlay (OSD) | Title, time and date overlay, multi-line, and color of characters optional | |
| Audio Compression | G.711A/U 8k 64bit | |
| Two-way Audio | Built-in microphone and speaker, support two-way audio | |
| Light Distance | Infrared distance 40m, Full Color distance 30m | |
| IR LEDs | 3pcs hybrid-light LEDs | |
| Day & Night Mode | Hybrid Light Mode/ Infrared Mode/ Full Color | |
| Lens | Fixed lens 3.6mm @F1.6 | |
| Min. Illumination | Color: 0.005Lux @F1.6, B/W: 0Lux with IR on | |
| WDR | Digital WDR | |
| Electronic Shutter | Auto (1/5 - 1/100000) | |
| White Balance | Auto / Manual | |
| Gain Control | Support | |
| HLC | Support | |
| BLC | Support | |
| Defog | Off/Low/Middle/High | |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip | |
| Noise Reduction | 3D NR(Off/Low/Middle/High/Higher) | |
| Alarm | Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm | |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming | |
| Motion Detection | Set detection area, can set multi-level sensitivity | |
| Occlusion Alarm | Support 1 area | |
| Privacy Mask | Support 4 areas | |
| Human Detection | It can detect target ≤ 5 persons at the same timeHumanoid pixel ≥ 40X40Detection Ratio ≥99%(meet above requirement)Capture Corresponding Speed ≤1sSupport specified area detection, default full screenError detection rate 2% or lessMaximum detection frame rate is 5Fps/s | |
| Area Intrusion | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail /voice broadcast alarm | |
| Line-Cross Detection | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail /voice broadcast alarm | |
| Person Loitering | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail /voice broadcast alarm | |
| Absent Alarm | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail / voice broadcast alarm | |
| Vehicle illegal Parking | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail /voice broadcast alarm | |
| Vehicle Retrograde | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail / voice broadcast alarm | |
| Network Interface | 1 RJ45 10M/100M Ethernet Port | |
| Networking Protocol | TCP/IP, UDP,HTTP,HTPS,DHCP,PPPoE,RTSP,RTMP,DDNS,UPNP,FTP | |
| Connection Protocol | ONVIF,SLINK | |
| Web Access | Support HTML5 remote login operation(Free plug-in) | |
| Security Mode | Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification | |
| Power Supply | DC 12V/POE | |
| Type | Outdoor Metal Bullet Camera | |
| Power Consumption | Max 6W | |
| Working Humidity | 10%-95% RH(Non-condensing) | |
| Working Temperature | -10°C to [$add]50°C | |
| Package | ||
| 4CH POE NVR *1PC | ||
| 8MP Smart Hybrid Light Metal Bullet POE IP Camera * 4PCS | ||
| 52V 1.25A Power Adaptor * 1PC | ||
| 1M Network Cable * 1PC | ||
| 20M Network Cable * 4PCS | ||
| Model | NVR204PL2KQ802LFA2 | |
| 4CH POE NVR | ||
| Operating System | Embedded LINUX | |
| Video & Audio | ||
| Incoming Bandwidth | 80Mbps | |
| IPC Input | 8CH*4K/5MP/3MP/2MP/960P/720P | |
| IP channel Resolution | Main stream: up to 3840×2160Auxiliary stream: D1/CIF | |
| Video Compression | Smart H.265/H.265 /H.264 | |
| Audio Decoding | G.711A/G.711U | |
| Preview | 4K/5MP/4MP/3MP/1080P/960P/720P | |
| Multi-screen Preview | Multi-screen Split 1/2/4 screen real-time preview | |
| Split Screen Decoding | 1(4K),4(4*1080P) | |
| Other Function | ||
| Smart Detection | Humanoid Detection, Line-Crossing Detection, Area Intrusion, Loitering, Absent Detection, Vehicle Illegal Parking, Vehicle Retrograde (need front end IPC supported) | |
| Motion Detection | Support | |
| Buzzer | Support buzzer alarm | |
| PA System | Support | |
| Alarm Push | Alarm Capture, send alarm information by email | |
| Online Upgrade | Supports online NVR upgrade | |
| IPC Upgrade | Support (specified model IPC) | |
| Other | Support Channel Tour Round GroupingRTMP push | |
| Recording & Playback | ||
| Recording Mode | Timing recording, Alarm recording, timing and alarm recording | |
| Playback | NVR synchronous playback 4CH (1*4K); PC client support maximum 4CH remote video playback | |
| Playback Mode | Regular payback, event playback | |
| Storage & Backup | ||
| Video Storage | HDD, Network | |
| Backup Mode | Network, USB device, mobile hard disk | |
| Network | ||
| Network Protocol | TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181 etc. | |
| POE Port | Single port max 15.4W(IEEE802.3af),Single port max 30W(IEEE802.3at) | |
| APP | Supports iPhone, Android | |
| PC | Support | |
| Login | HTML5 remote login operation | |
| User Management | Maximum support 32 local user | |
| Interface | ||
| Network Interface | 1pc RJ45 10M/100M self-adaptive Ethernet interface | |
| USB Interface | 2pcs USB 2.0 | |
| Video Output | VGA:/ | |
| HDMI:1CH 3840*2160,1920×1080,1440x900,1280×1024,1280×800,1024×768 | ||
| Audio I/O | Support HDMI audio output, support 2PIN extended audio input interface and 3PIN extended audio output interface | |
| Alarm I/O | No | |
| SATA | 1 SATA, maximum support 16TB hard disk | |
| RS-485 | No | |
| HDMI | 1PC | |
| General | ||
| Power Supply | DC 52V 1.25A | |
| Power Consumption | ≤65W | |
| Working Environment | -10℃- [$add]55℃ | |
| Working Humidity | 10%—90%, Atm:86kpa—106kpa | |
| Camera | Metal Bullet*4PCS | |
| Image Sensor | 1/2.8" SONY low illumination CMOS sensor | |
| Max. Image Resolution | 8MP(3840*2160)@20fps | |
| Frame Rate | Main Stream:8MP(3840*2160)@20fp ,5MP(2592*1904@25fps),4MP(2560*1440@25fps),3MP(2304*1296@25fps),2MP(1920*1080@25fps)Sub Stream:D1(720*576),VGA(640*480),Q720P(640*360) | |
| Video Compression | S265/H265/H264 | |
| Video Bit Rate | 1024Kbps-24Mbps support self-adjustable as needed | |
| Image Settings | Brightness,contrast,saturation,sharpness,chroma | |
| Character Overlay(OSD) | Support time OSD/Title OSD, multi-line OSD | |
| Audio Compression | G.711U 8Kbps | |
| Two-way Audio | Built-in microphone and speaker, support two-way audio | |
| Light Distance | Infrared distance 40m, Full Color distance 30m | |
| IR LEDs | 3pcs hybrid-light LEDs | |
| Day & Night Mode | Hybrid Light Mode/ Infrared Mode/ Full Color | |
| Lens | Fixed lens 3.6mm @F1.6 | |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR | |
| WDR | Real WDR | |
| Shutter Time | Auto(1/5 - 1/100000) | |
| White Balance | Support | |
| Gain Control | Support | |
| BLC | Support | |
| HLC | Support | |
| Defog | Off/ON | |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip | |
| Image Settings | Brightness,contrast,saturation,exposure,upside down,mirror adjustable | |
| Noise Reduction | 3D NR (Off/Low/Middle/High) | |
| Alarm | Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm | |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming | |
| Motion Detection | Set detection area,can set multi-level sensitivity | |
| Privacy Mask Alarm | Support 1 area | |
| Privacy Mask | Support 4 area | |
| Human Detection | It can detect target ≤5-10 persons at the same timeHumanoid pixel ≥40X40Detection Ratio ≥99%(meet above requirement)Capture Corresponding Speed ≤1sSupport specified area detection, default full screenError detection rate 2% or lessMaximum detection frame rate is 5fps /s | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,PPPoE,RTSP,RTMP,DDNS,UPNP,FTP | |
| Connection Protocol | ONVIF,SLINK,GB28181 | |
| Web Access | Support HTML5 remote login operation(Free plug-in) | |
| Security Mode | Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification | |
| Power Supply | DC 12V/POE | |
| Type | Outdoor Metal Bullet Camera | |
| Power Consumption | Max 6W | |
| Working Humidity | 10%-95% RH(Non-condensing) | |
| Working Temperature | -10°C to [$add]50°C | |
| Package | ||
| 4CH POE NVR *1PC | ||
| 8MP WDR Smart Hybrid Light Metal Bullet POE IP Camera * 4PCS | ||
| 52V 1.25A Power Adaptor * 1PC | ||
| 1M Network Cable * 1PC | ||
| 20M Network Cable * 4PCS | ||
mapesen
mapesen
