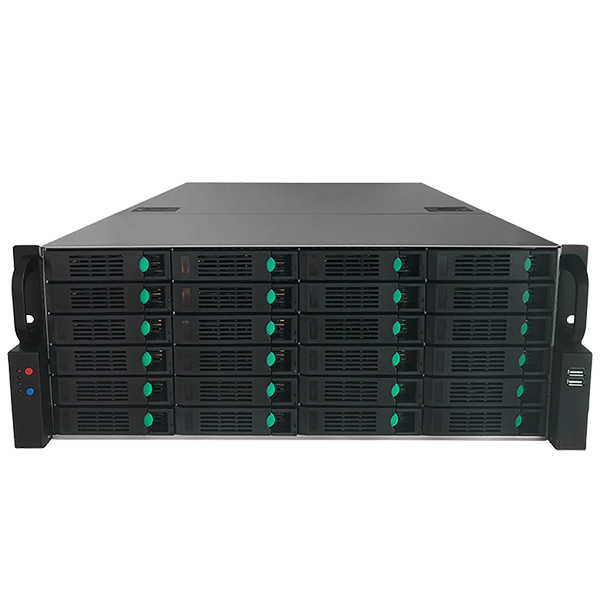

NVR-4K8B28R-A/D/G/B/R

H.265 128CH 4K AI NVR POE

4K · Smart Analysis · with Audio Boardcasting System · Multi-channel Synchronous Playback · ONVIF · Support 24HDD(24*16TB) · 2*1000M RJ45 Port · Support 16CH Alarm In and 8CH Out · Support RAID Storage · 4 HDMI
    Products
      128CH  24HDD 4K AI NVR Non POE
    · 128CH POE 4K IPC Access.,Bandwidth Access 800M,Support Broadcasting Function.
    · H.265+/H.265/H.264 triple stream decoding, embedded Linux operating system.
    · Support IPC centralized management, including IPC parameter configuration, information export and import, real-time information acquisition and upgrade, etc.
    · Support SMART IPC smart analysis:motion detection, alarm input,human detection, line crossing detection,retrograde detection,absent  alarm,loitering, area intrusion, illegal vehicle parking.
    · Support synchronous recording, remote monitoring, backup.
    · HDMI,VGA synchronous output, support 4K preview .
    · Supports electronic zoom for both live view and playback images.
    · Standard ONVIF, SLINK, RTSP ,GB28181 protocol.
    · Support DDNS, EMAIL, UPNP, P2P and other functions.
    · Support WEB, mobile phone monitoring, client, VMS monitoring.
    · Support disk grouping quotas and disk set storage method.
    · Support access grouping,turning display in order.
    · Simultaneous playback of up to 16 channels, with decoding capabilities matching those of live viewing in the current mode.
    · Double password authentication,zero channel function.
     Support network monitoring:network traffic, network delay packet loss test, network packet capture backup.
    · Support current bandwidth, stream information,support multiple language.
    · APP can be Shared with 32 Users.
    · Support Max 24HDD(16TB*24).
    · Support 16CH alarm In and 8CH out.
    Model NVR-4K8B28R-A/D/G/B/R
    System
    Operating System Embedded LINUX
    Max Preview Channel 128CH
    Video & Audio Input
    Bandwidth 800Mbps
    IPC Input 12MP/4K/1080P/720P/D1
    Video & Audio Decoding
    Video Compression H.265[$add]/H.265/H.264
    Audio Compression G.711A/G.711U
    Preview 12MP/8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Multi-screen Split Support 1/2/4/6/8/9/10/16/25/36/49/64/128 screen real-time preview
    Single-Screen Mode(Split-screen/Decoder) 1(8K),2(2*12MP),4(4*12M),6(12M[$add]5*1080P),8(12M[$add]7*1080P),9(9*4K),10(2*4K[$add]8*3MP),16(16*5MP),25(25*3MP),36(36*D1),49(49*D1),64(64*D1),128(128*D1)
    Dual-Screen Mode(Split-screen/Decoder) 1(8K),2(2*12MP),4(4*4K),6(12M[$add]5*1080P),8(12M[$add]7*1080P),9(9*3MP),10(2*4K[$add]8*1080P),16(16*1080P),25(25*D1),36(36*D1),64(64*D1),81(81*D1),100(100*D1)
    Four-Screen Mode(Split-screen/Decoder) 1(12M),2(2*4K),4(4*5MP),6(4K[$add]5*1080P),8(5MP[$add]7*1080P),9(9*1080P),10(10*1080P),16(16*D1),25(25*D1),36(36*D1),49(49*D1)
    Recording & Playback
    Recording Mode Scheduled/Alarm Recording
    Playback Multi-channel PlaybackChannels: Up to 16 simultaneousDecoding: Maintains full resolution consistent with live viewing mode.
    Playback Mode Regular payback, event playback
    Display Mode 1)Mode 1: 1 pc HDMI output (12MP/D1[$add]128CH Preview[$add]16CH playback)
    2) Mode 2: 2 pcs HDMI output (12MP/D1[$add]2 screens 64CH Preview[$add]16CH playback)
    3) Mode 3: 4 pcs HDMI output (8MP/D1[$add]4 screens 36[$add]36[$add]36[$add]36CH Preview[$add]16CH playback)
    Other Function
    Smart Detection Human Detection, Line-Crossing Detection, Area Intrusion, Loitering, Absent Detection, Vehicle Illegal Parking, Vehicle Retrograde (need front end IPC supported)
    Motion Detection Support
    PA System Support
    Alarm Push Alarm Capture, send alarm information by email
    Storage
    SATA 24*SATA HDD
    ESATA 1 ESATA Expansion port
    Capacity Max 24*16TB HDD
    Storage Path Local hard disk, network HDD(IPSAN,NAS)
    Backup method USB portable HDD, USB disk, Network
    RAID 0/1/5/6/10 RAID pattern
    Network
    Network Protocols TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,GB28181,DDNS,UPNP
    Connect Protocol RTSP,SLINK,ONVIF,I9,Hikvision private protocol.
    P2P Support
    APP iPhone, Android
    PC Support
    Login HTML5 remote login operation
    User Management Maximum support 32 local user
    Online Upgrade Supports online NVR upgrade
    IPC Upgrade Support (specified model IPC)
    Others Support Channel Tour Round GroupingRTMP pushSupport offline recording function
    Interface
    Network Interface 2pcs RJ 45 1000M Port
    USB Interface 3pcs USB 2.0
    Video Output VGA:/
    HDMI:1CH 3840*2160, 1920×1080,1280×1024,1280×720,1024×768
    Audio I/O 1/1 RCA Port
    Alarm I/O 16 CH Input/ 8 CH Output
    RS-485 1 pc RS-485 port
    HDMI 4 pcs
    General
    Installation Desktop Installation
    Power Supply ATX110-220V 750W
    Working Conditions Temperature: -10℃∼55℃; Humidity: 10%∼90%
    Product Dimension
    Size (mm) 482.6*602.5*174.1mm(W×L×H)
