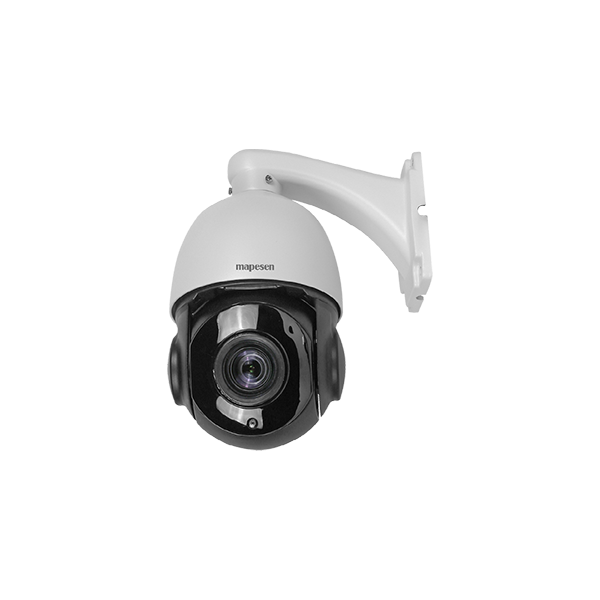

401 4.5 INCH 4 IN 1 PTZ Camera
2MP/5MP 20X Optical Zoom 4 IN 1 PTZ Camera
4.5INCH · 20X Optical Zoom · Low Illumin · Smart IR · Motion Detection · 128 preset points · 60m IR distance · 3D DNR · DWDR · RS485 · IP67 weatherproof
2MP/5MP 20X Optical Zoom 4 IN 1 PTZ Camera
4.5" HD IR Speed Dome Camera
· 1/2.8“ High performance SONY CMOS sensor
· AHD/CVI/TVI/CVBS 4-in-1
· Support RS485 and UTC control,3D DNR
· 20X optical zoom 4.7-84.6mm/ 33X optical zoom 4.6-152mm
· 6pcs IR array leds,60M IR Distance
· Horizontal Angle:0-350°,Vertical Angle 0-90°,Pan /Tilt Speed 0.1-30°/S
· Support crusing,128pcs preset points
· Metal and plastic case,IP67
· DC12V3A
|
Model Number |
MP-X(B)401M2-H205 |
|
Video |
|
|
Image Sensor |
1/2.8" SONY CMOS |
|
Resolution |
2.0MP 1920(H) X 1080(V) |
|
Video Output |
AHD, TVI, CVI, CVBS |
|
Min. Illumination |
Color: 0.01Lux @F1.2, B/W: 0Lux @F1.2 |
|
S/N |
≥48dB |
|
PTZ |
|
|
Pan |
360°continued rotation |
|
PAN SPEED |
Vertical keying speed: 0.1 ° ~ 30°/ s |
|
Tilt |
Tilt 0°- 90°; |
|
TILT SPEED |
Vertical keying speed: 0.1 ° ~ 30°/ s |
|
Preset |
128PCS |
|
Cruise |
Support |
|
Guard Points |
Max 16 points, dwell time user selectable |
|
Pattern Scan |
1 groups |
|
Pan and Tilt position display |
Support |
|
PTZ Protocol |
Coaxial / PELCO-D/PELCO-P |
|
IR board |
6PCS IR Array LEDs |
|
IR Distance |
60m IR distance |
|
Auto Control IR LED |
PWM |
|
Lens |
|
|
Lens |
Auto-Focus 4.7-84.6mm lens |
|
optical Zoom |
20X |
|
Iris |
F1.6-3.5 |
|
Pan View Angle |
64.1° (near) – 3.6° (far) |
|
Function |
|
|
AGC |
Auto/Manual |
|
Sen-up |
on/off |
|
White Balance |
Auto/Manual |
|
WDR |
Digital WDR |
|
DNR |
2D/3D DNR |
|
BLC |
Support |
|
Exposure Mode |
Auto/Manual |
|
Electronic |
Auto/ 1/50(1/60)-1/50000sec |
|
Interface |
|
|
Video Interface |
1 Pcs BNC Port |
|
RS485 |
Support |
|
Power |
1Pcs DC female head |
|
General |
|
|
Power Supply |
DC12V3A |
|
Power Consumption |
Max 20W |
|
Housing |
Metal PTZ Dome |
|
Working Temperature |
-20 °C to 60 °C |
|
Working Humidity |
<90% (no frostless) |
|
Protection |
TVS3000V lightning protection, surge protection, voltage transient protection |
|
Weather Proof |
IP67 |
|
Model Number |
MP-X(B)401M2-H503 |
|
Video |
|
|
Image Sensor |
1/2.8" SONY CMOS |
|
Resolution |
5.0MP 2592(H) X 1944(V) |
|
Video Output |
AHD, TVI, CVI, CVBS |
|
Min. Illumination |
Color: 0.01Lux @F1.2, B/W: 0Lux @F1.2 |
|
S/N |
≥50dB |
|
PTZ |
|
|
Pan |
360°continued rotation |
|
PAN SPEED |
Vertical keying speed: 0.1 ° ~ 30°/ s |
|
Tilt |
Tilt 0°- 90°; |
|
TILT SPEED |
Vertical keying speed: 0.1 ° ~ 30°/ s |
|
Preset |
128PCS |
|
Cruise |
Support |
|
Guard Points |
Max 16 points, dwell time user selectable |
|
Pattern Scan |
1 groups |
|
Pan and Tilt position display |
Support |
|
PTZ Protocol |
Coaxial / PELCO-D/PELCO-P |
|
IR board |
6PCS IR Array LEDs |
|
IR Distance |
60m IR distance |
|
Auto Control IR LED |
PWM |
|
Lens |
|
|
Lens |
Auto-Focus 4.7-84.6mm lens |
|
optical Zoom |
20X |
|
Iris |
F1.6-3.5 |
|
Pan View Angle |
64.1° (near) – 3.6° (far) |
|
Function |
|
|
AGC |
Auto/Manual |
|
Sen-up |
on/off |
|
White Balance |
Auto/Manual |
|
WDR |
Digital WDR |
|
DNR |
2D/3D DNR |
|
BLC |
Support |
|
Exposure Mode |
Auto/Manual |
|
Electronic |
Auto/ 1/50(1/60)-1/50000sec |
|
Interface |
|
|
Video Interface |
1 Pcs BNC Port |
|
RS485 |
Support |
|
Power |
1Pcs DC female head |
|
General |
|
|
Power Supply |
DC12V3A |
|
Power Consumption |
Max 20W |
|
Housing |
Metal PTZ Dome |
|
Working Temperature |
-20 °C to 60 °C |
|
Working Humidity |
<90% (no frostless) |
|
Protection |
TVS3000V lightning protection, surge protection, voltage transient protection |
|
Weather Proof |
IP67 |
|
Model Number |
MP-X(B)401M3-H503 |
|
Video |
|
|
Image Sensor |
1/2.8" SONY CMOS |
|
Resolution |
5.0MP 2592(H) X 1944(V) |
|
Video Output |
AHD, TVI, CVI, CVBS |
|
Min. Illumination |
Color: 0.01Lux @F1.2, B/W: 0Lux @F1.2 |
|
S/N |
≥50dB |
|
PTZ |
|
|
Pan |
360°continued rotation |
|
PAN SPEED |
Vertical keying speed: 0.1 ° ~ 30°/ s |
|
Tilt |
Tilt 0°- 90° |
|
TILT SPEED |
Vertical keying speed: 0.1 ° ~ 30°/ s |
|
Preset |
128PCS |
|
Cruise |
Support |
|
Guard Points |
Max 16 points, dwell time user selectable |
|
Pattern Scan |
1 groups |
|
Pan and Tilt position display |
Support |
|
PTZ Protocol |
Coaxial / PELCO-D/PELCO-P |
|
IR board |
6PCS IR Array LEDs |
|
IR Distance |
60m IR distance |
|
Auto Control IR LED |
PWM |
|
Lens |
|
|
Lens |
Auto-Focus 4.6-152mm lens |
|
optical Zoom |
33X |
|
Iris |
F1.6-4.8 |
|
Pan View Angle |
61.2.° (near) – 2.7° (far) |
|
Function |
|
|
AGC |
Auto/Manual |
|
Sen-up |
on/off |
|
White Balance |
Auto/Manual |
|
WDR |
Digital WDR |
|
DNR |
2D/3D DNR |
|
BLC |
Support |
|
Exposure Mode |
Auto/Manual |
|
Electronic |
Auto/ 1/50(1/60)-1/50000sec |
|
Interface |
|
|
Video Interface |
1 Pcs BNC Port |
|
RS485 |
Support |
|
Power |
1Pcs DC female head |
|
General |
|
|
Power Supply |
DC12V3A |
|
Power Consumption |
Max 20W |
|
Housing |
Metal PTZ Dome |
|
Working Temperature |
-20 °C to 60 °C |
|
Working Humidity |
<90% (no frostless) |
|
Protection |
TVS3000V lightning protection, surge protection, voltage transient protection |
|
Weather Proof |
IP67 |
