Ultra Low Power Consumption,working enabled by radar detection

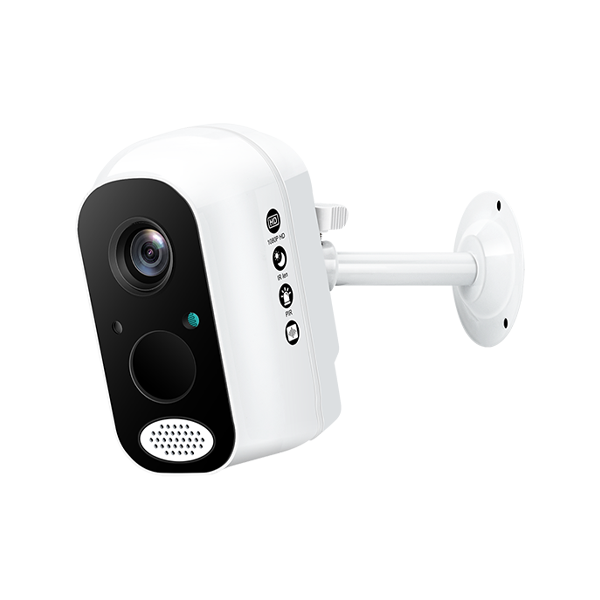

All-weather Solar Wifi Battery Camera
·Image resolution:1080P,2.0MP;
·6.8W Solar power panel anti-wear and scratch resistant;
·Powered by 2PCS 3000mA(total 6000mA) lithium polymer battery,charge voltage: 5v2a;
·Pure battery standby time more than 150 days.;
·Support Wi-Fi 802.11 b/g/n;
·High performance LED lights,effective distance of 15 meters;
·G726, G711, AAC, MP3 format, 8K sampling rate, support echo cancellation function;
·Mircowave Radar Human Temperature Detection 10m,alarm push,remote awake;
·Working enabled by microwave radar human motion detection;
·Support recording when network is not available suddenly,radar alarm info sent,can check the recording after network is on.
·Two-way audio,with auto cancellation;built-in speaker/Microphone;
·1 TF(Micro SD)Storage interface,max128GB,recording video 320 hours;
·Support dual-stream simultaneously monitoring;
·Support CMS,P2P
·IP66
|
Model NO |
MP-BC3 |
|
Operating system |
Linux |
|
Image sensor |
1/3 million pixel CMOS |
|
Minimum illumination |
Color 0.6 lux@f1.2, black and white 0.08 lux@f1.2,0 Lux IR Open |
|
Day and night mode |
IR-cut Double Filter Automatic switching |
|
Lens |
3.6MM million HD lens |
|
Video compression |
H.264, support dual code flow |
|
Video mode |
HD/SD |
|
Maximum image size |
Main stream 1920x1080; sub-code stream: 640x480; |
|
Resolution |
1080P: 2MP |
|
Frame rate |
25 Frames |
|
Audio coding |
G726, G711, AAC, MP3 format, 8K sampling rate, support echo cancellation function |
|
Audio input |
Built-in mic |
|
Audio output |
Internal speaker |
|
Real Standby |
Built-in MCU, support true standby function, support infrared, key, Gpio alarm wake-up main system; system standby power consumption 60uA |
|
Wireless network |
2.4GHzIEEE 802.11b/g/n |
|
AP Hotspot |
Support |
|
Storage Features |
Support Micro SD card storage, Max 128G |
|
Cloud Storage |
Support |
|
Intelligent Alarm |
Microwave radar human temperature detection alarm, effective distance of 8m |
|
Low Power Consumption Mode |
Working enabled by radar detection on |
|
Infrared lamp |
High performance LED lights, effective distance of 15 meters |
|
Solar |
|
|
Solar charging power |
6.8W |
|
Solar charging voltage |
6V 1A |
|
Battery |
6000 Ma polymer lithium battery, charge voltage: 5V 2A |
|
Standby time |
150 days |
|
Solar panel size |
180*270*17mm |
|
Solar panel waterproofing |
IP66 |
|
Solar connection |
Waterproof DC interface,Line length 5 m |
|
Power |
0.75W (work) 0.0025W (standby) |
|
Working environment |
–10°c~60°c/20%~85% (non condensation) |
