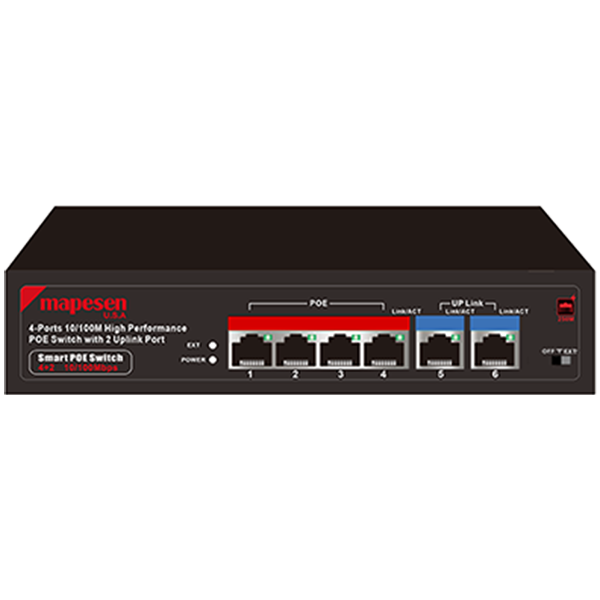

4 Port 100Mbps Built-in Power POE Switch (4+2)
| Model Number | POE1-M0420-NP65 |
| Network Port | |
| Downlink Ports | 4 ports |
| Downlink Speed | 10/100Mbps |
| Uplink Ports(Ethernet) | 2 ports |
| Uplink Speed | 10/100Mbps |
| Data PIN | 1/2[$add] 3/6[$add], 4/5[$add] 7/8[$add] |
| SFP Port | No |
| POE Ports | 4 ports 100Mbps |
| Transmission Distance | |
| POE Ports | 100Mbps:0-100m,10Mbps: 0-250m , |
| Uplink Ports | 0-100M |
| Transmission Medium(Ethernet) | 10/100/1000BASE- TX:Cat5/5e/6 standard network cable |
| Power Over Ethernet | |
| PSE | Standard Power-sourcing Equipment (PSE) controller chip. |
| Power Supply | Built-in Power Supply 52V 65W |
| Network Standard | IEEE802.3/IEEE802.3u/IEEE802.3z/IEEE802.3ab,etc |
| POE Connection | 1-4 POE ports support IEEE802.3af/at |
| POE Power Supply Type | End-Span(1/2[$add];3/6-,4/5[$add];7/8-) |
| POE Total Power | Max 65W |
| Single POE Maximum Power | 1-4 single POE port Max 30W AT mode |
| Network Switch | |
| Backplane Bandwidth | 1.2G backplane bandwidth store and forward |
| Packet Forwarding Rate | 10BASE-tx:14880pps/port100BASE-tx:148800pps/port1000BASE-tx:1488000pps/port |
| 0.89Mkpps | |
| Port Capability | All ports support line speed switching, and the frame length range of 64~1536 is expected to reach the line speed |
| MDI/MDIX | Support |
| VLAN | Support |
| MAC Address Table | Support 2K L2 MAC table entries |
| Extend | OFF(100M)/ON(10M) |
| Other | |
| Casing | Metal |
| Indicator Light | LINK/ACT/POWER/VLAN |
| Lightning Protector | Differential Mode [$add]/-2kV, Common Mode [$add]/-4kV |
| Operating Humidity | 90% maximum relative humidity,non-condensing |
| Storage Humidity | 95% maximum relative humidity,non-condensing |
| Operative Temperature | -10℃~55℃ |
| Working Temperature | -40℃~70℃ |
| Dimensions | 200*117*44mm (L*W*H) |
| Weight | N.W.:568g |
