POE1-M08M20-WP

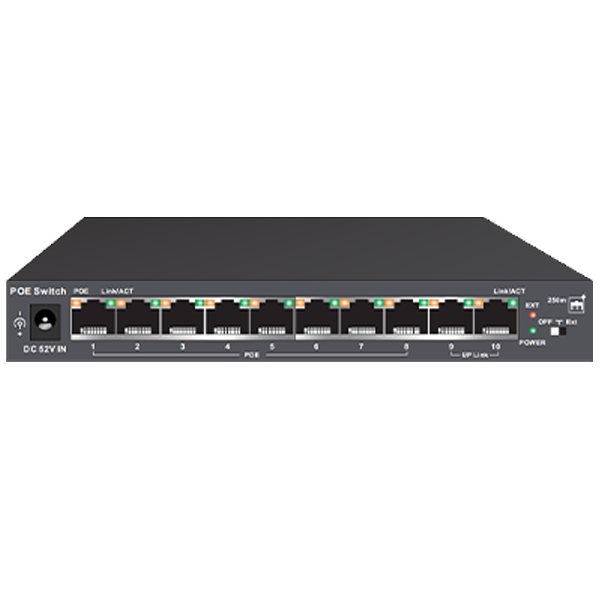

8 Port 100Mbps External Power Supply POE Switch (8+2)

8+2 100Mbps PoE · IEEE802.3 Compliant · 8xPoE Ports · 2xUplink Ports · PSE Chip · Auto Mdi/mdix · Lightning Protection · 30W/Port · Line-speed · VLAN Support · Plug & Play · External Power
    Products
    ·  8 Port 100Mbps External Power Supply POE Switch (8+2)
    ·  POE Standard: IEEE 802.3 and IEEE 802.3u, IEEE802.3z, IEEE802.3ab
    ·  POE Port: 8 x 100Mbps adaptive RJ45 ports
    ·  Uplink Port: 2 x 100Mbps adaptive RJ45 ports
    ·  Standard Power-sourcing Equipment (PSE) controller chip.
    ·  Support Auto MDI/MDIX.
    ·  Support Lightning Protection (Differential Mode +/-2kV, Common Mode +/-4kV).
    ·  1-8 PoE single port maximum power 30W.
    ·  All ports support line speed switching, and the frame length range of 64~1536 is expected to reach the line speed.
    ·  Plug and play,with VLAN technology.
    ·  Power Supply Optional(You can choose from below power supply model).
    Model Number POE1-M08M20-WP
    Network Port
    Downlink Ports 8 ports
    Downlink Speed 10/100Mbps
    Uplink Ports(Ethernet) 2 ports
    Uplink Speed 10/100Mbps
    Data PIN 1/2[$add] 3/6-, 4/5[$add] 7/8-
    SFP Port No
    POE Ports 8 ports 100Mbps
    Transmission Distance
    POE Ports 100Mbps:0-100m,10Mbps: 0-250m
    Uplink Ports 0-100M
    Transmission Medium(Ethernet) 10/100/1000BASE- TX:Cat5/5e/6 standard network cable
    Power Over Ethernet
    PSE Standard Power-sourcing Equipment (PSE) controller chip.
    Power Supply External Power Supply 52V 1.25A
    Network Standard IEEE802.3/IEEE802.3u/IEEE802.3z/IEEE802.3ab,etc
    POE Connection 1-8 POE ports support IEEE802.3af/at
    POE Power Supply Type End-Span(1/2[$add];3/6-,4/5[$add];7/8-)
    POE Total Power 65W
    Single POE Maximum Power 1-8 single POE port Max 30W AT mode
    Network Switch
    Backplane Bandwidth 2G backplane bandwidth store and forward
    Packet Forwarding Rate 10BASE-tx:14880pps/port100BASE-tx:148800pps/port
    1.488Mpps
    Port Capability All ports support line speed switching, and the frame length range of 64~1536 is expected to reach the line speed
    MDI/MDIX Support
    VLAN Support
    MAC Address Table Support 2K L2 MAC table entries
    Extend OFF(100M)/ON(10M)
    Other
    Casing Metal
    Indicator Light LINK/ACT/Gigabit/POWER/VLAN
    Lightning Protector Differential Mode [$add]/-2kV, Common Mode [$add]/-4kV
    Operating Humidity 90% maximum relative humidity,non-condensing
    Storage Humidity 95% maximum relative humidity,non-condensing
    Operative Temperature -10℃~55℃
    Working Temperature -40℃~70℃
    Dimensions 187*85*25mm (L*W*H)
    Weight N.W.:340g
