L6KTY52LFA2-P

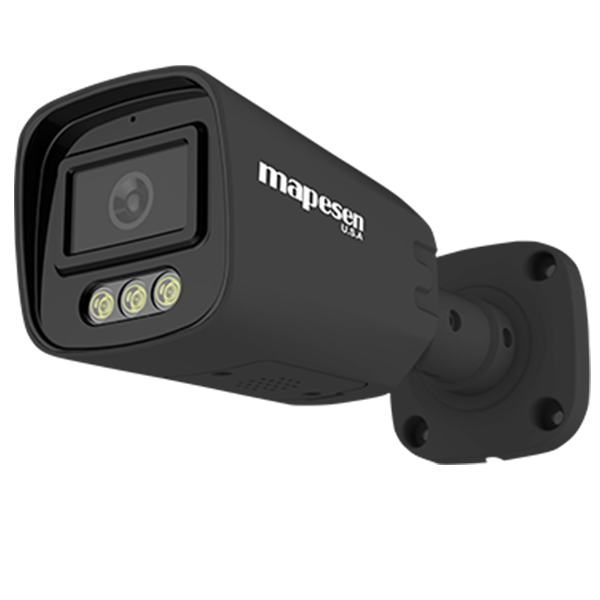

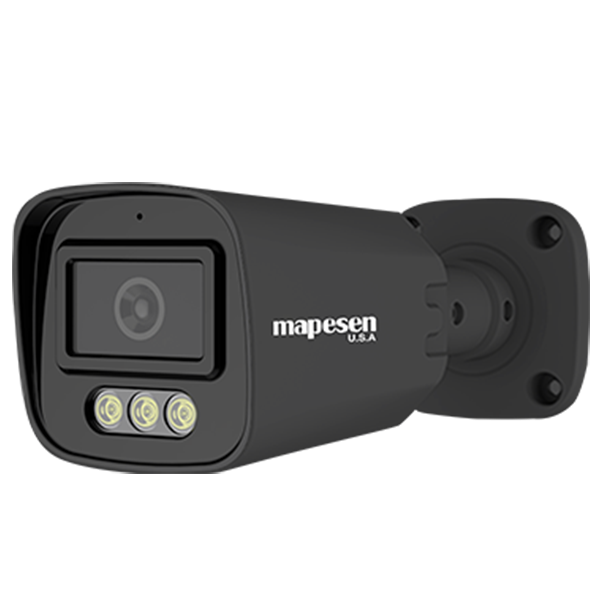

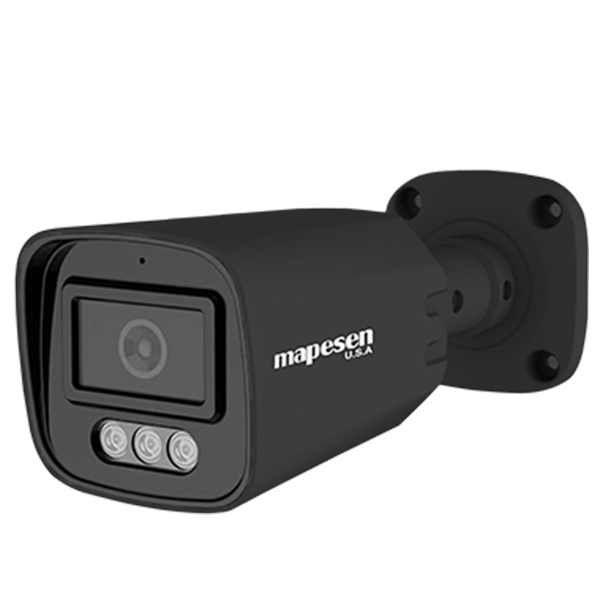

5MP TUYA Smart AI Ultra Colorful+ POE Network Bullet Camera

Ultra Colorful+ Night Vision · H.265 · Tuya Smart APP · Two-Way Audio · AI Human Detection · Plug-Free View · DWDR · 3D DNR · BLC · HLC · ONVIF · Easy Installation · Metal Bullet · Indoor & Outdoor
    Products
    · 5MP Ultra Colorful+ D H.265 Tuya Smart AI Hybrid Light POE Network Metal Dome Camera
    · Equipped with a 1/1.8" 5MP high-sensitivity low-illumination CMOS sensor for outstanding image quality.
    · Delivers stunning vibrant full-color night vision with an effective range up to 30 meters.
    · Built-in high-sensitivity two-way audio enables real-time talk-back, intercom and remote communication for enhanced security and smarter monitoring.
    · Advanced AI human & motion detection with comprehensive smart alarm linkage: supports FTP upload, instant app push notifications, audio alerts, email reminders and automatic light activation for reliable all-round protection.
    · Wide compatibility & effortless remote access: supports IE 6.0 and above browsers with 100% plug-free viewing for smooth, hassle-free monitoring.
    · Professional-grade image optimization: anti-flicker, Digital Wide Dynamic Range (DWDR), 3D DNR noise reduction, BLC, HLC, adjustable exposure, AGC and white balance, ensuring crystal-clear video in all lighting environments.
    · Industry-standard compatibility: fully supports ONVIF & PoE for simplified installation and stable connection; durable metal dome housing ideal for both indoor and outdoor use.
    · Important Note: This camera must be used with a 5MP POE NVR and cannot operate standalone.
    Model Number L6KTY52LFA2-P
    Camera
    Image Sensor 1/1.8" 5MP low illumination CMOS sensor
    Min. Illumination Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.001 Lux with IR
    Shutter Time Auto(1/25 - 1/100000)
    Lens
    Lens Type Fixed Lens 3.6mm @F1.6
    Lens Resolution 5MP
    Illuminator
    Light Distance 30m
    Day & Night Mode Auto/Full Color Mode
    Video
    Max. Image Resolution 5MP(2880*1616)@25fps
    Video Compression H.265/H.264
    Frame Rate Main stream: 5MP (2880x1616)@25fps,4MP(2560x1440) @25fps,3MP(2304x1296) @25fps,2MP(1920x1080) @25fps, 720P(1280x720) @25fpsSub-stream: 704x576, 800x448, 640x480, 640x360, 352x288
    Video Bit Rate 128Kbps-8192bps support self-adjustable as needed
    Image Settings Basic: Brightness,contrast,saturation,sharpness,mirror,flip
    Advanced: Anti-flicker,BLC,HLC,scene,exposure time,AGC,white balance
    WDR Digital WDR, >80db
    SNR ≥50db(AGC OFF)
    Noise Reduction 3D NR
    Character Overlay (OSD) Support channel name, date/time, bitrate, resolution, and 5-line character overlay.
    Audio
    Audio Input Support, built-in microphones
    Audio Output Support, built-in speaker
    Audio Compression G.711A/U
    Network
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Networking Protocol ONVIF,P2P,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP,DNS,GB28281
    APP IOS,Android
    PC Support
    Web Access Supports IE6.0 and above browsers, Free plug-in
    Event
    Alarm Human Detection, Motion Detection alarm
    Linkage Alarm triggering actions such as FTP upload, send message, audio alerts, email notifications, and light activation.
    Motion Detection Set detection area,can set multi-level sensitivity
    Privacy Mask 4 windows can be built to mask your private area
    Snapshot 704x576
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    On-Board Storage No
    Alarm No
    RS-485 No
    General
    Power Supply DC12V±10% /POE
    Power Consumption Max 6W
    Lightning Protection 6KV
    Housing Metal Bullet
    Weather Proof IP67
    Working Temperature -10 °C to 50 °C
    Working Humidity 10%-95% (Non-condensing)
