M6J 5MP 8MP Series

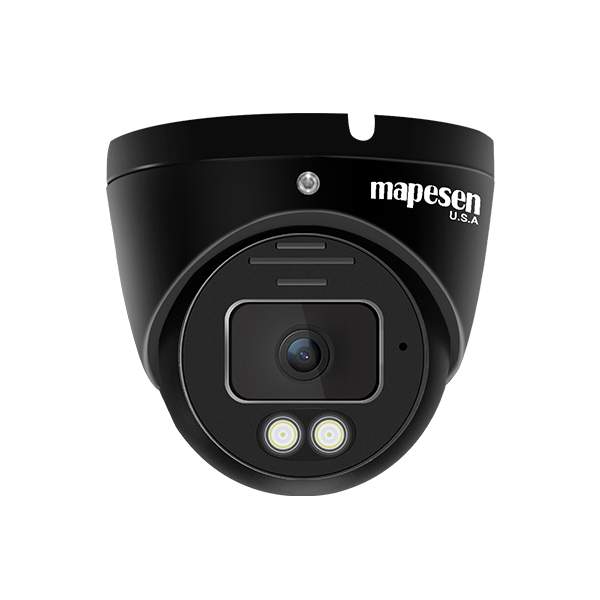

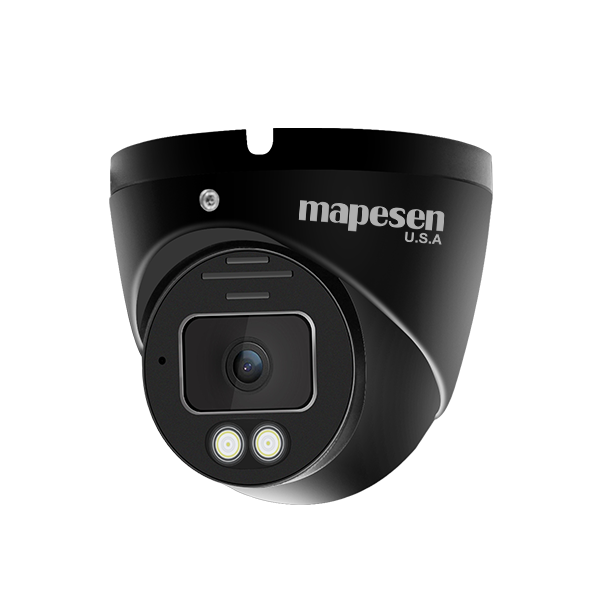

5MP 8MP TUYA Smart AI Hybrid Light POE Network Dome Camera

H.265 · Tuya Smart APP · Hybrid Light · Two-Way Audio · AI Human Detection · Plug-Free View · DWDR · 3D DNR · BLC · HLC · ONVIF · Easy Installation · Metal Dome
    Products
    · 5MP/8MP Ultra HD H.265 Tuya Smart AI Hybrid Light POE Network Metal Dome Camera
    · Smart Dual Light Source Design supports vibrant full-color night vision (20m) and ultra-clear infrared black-and-white night vision (25m), delivering sharp footage day and night.
    · Built-in high-sensitivity two-way audio allows real-time talk-back, intercom, and remote communication for safer, smarter monitoring.
    · Advanced AI Human & Motion Detection with smart alarm linkage: supports FTP upload, instant app push, audio alerts, email notifications, and automatic light activation for reliable security.
    · Wide compatibility & easy access: Supports IE6.0 and above browsers with 100% plug-free viewing for hassle-free remote monitoring.
    · Professional-grade image enhancement: Anti-flicker, Digital Wide Dynamic Range (DWDR), 3D DNR noise reduction, BLC, HLC, adjustable exposure, AGC, and white balance for crystal-clear video in all lighting conditions.
    · Industry-standard compatibility: Fully supports ONVIF & PoE for easy installation and stable connection; durable metal dome housing.
    Model Number M6JTY51LFA2-P
    Camera
    Image Sensor 1/3" 5MP low illumination CMOS sensor
    Min. Illumination Color: 0.1 Lux @ (F1.6, AGC ON),B/W: 0.01 Lux with IR
    Shutter Time Auto(1/25 - 1/100000)
    Lens
    Lens Type Fixed Lens 3.6mm @F1.6
    Lens Resolution 5MP
    Illuminator
    Light Distance Warm Light 20m,IR Light 25m
    IR LEDs 2pcs Hybrid Light LEDs
    Day & Night Mode Hybrid Light Mode/ Infrared Mode/ B/W
    Video
    Max. Image Resolution 5MP(2880*1616)@25fps
    Video Compression H.265/H.264
    Frame Rate Main stream: 5MP (2880x1616)@25fps,4MP(2560x1440) @25fps,3MP(2304x1296) @25fps,2MP(1920x1080) @25fps, 720P(1280x720) @25fpsSub-stream: 704x576, 800x448, 640x480, 640x360, 352x288
    Video Bit Rate 128Kbps-8192bps support self-adjustable as needed
    Image Settings Basic: Brightness,contrast,saturation,sharpness,mirror,flip
    Advanced: Anti-flicker,BLC,HLC,scene,exposure time,AGC,white balance
    WDR Digital WDR, >80db
    SNR ≥50db(AGC OFF)
    Noise Reduction 3D NR
    Character Overlay (OSD) Support channel name, date/time, bitrate, resolution, and 5-line character overlay.
    Audio
    Audio Input Support, built-in microphones
    Audio Output Support, built-in speaker
    Audio Compression G.711A/U
    Network
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Networking Protocol ONVIF,P2P,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP,DNS,GB28281
    APP IOS,Android
    PC Support
    Web Access Supports IE6.0 and above browsers, Free plug-in
    Event
    Alarm Human Detection, Motion Detection alarm
    Linkage Alarm triggering actions such as FTP upload, send message, audio alerts, email notifications, and light activation.
    Motion Detection Set detection area,can set multi-level sensitivity
    Privacy Mask 4 windows can be built to mask your private area
    Snapshot 704x576
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    On-Board Storage No
    Alarm No
    RS-485 No
    General
    Power Supply DC12V±10% /POE
    Power Consumption Max 6W
    Lightning Protection 6KV
    Housing Metal Dome
    Weather Proof N/A
    Working Temperature -10 °C to 50 °C
    Working Humidity 10%-95% (Non-condensing)
    Model Number M6JTY80LFA2-P
    Camera
    Image Sensor 1/3" 8MP low illumination CMOS sensor
    Min. Illumination Color: 0.1 Lux @ (F1.6, AGC ON),B/W: 0.01 Lux with IR
    Shutter Time Auto(1/25 - 1/100000)
    Lens
    Lens Type Fixed Lens 3.6mm @F1.6
    Lens Resolution 8MP
    Illuminator
    Light Distance Warm Light 20m,IR Light 25m
    IR LEDs 2pcs Hybrid Light LEDs
    Day & Night Mode Hybrid Light Mode/ Infrared Mode/ B/W
    Video
    Max. Image Resolution 8MP(3840x2160)@20fps
    Video Compression H.265/H.264
    Frame Rate Main stream: 8MP(3840x2160)@20fps,5MP (2880x1664)@25fps,4MP(2560x1440) @25fps,3MP(2304x1296) @25fps,2MP(1920x1080) @25fps, 720P(1280x720) @25fpsSub-stream: 704x576, 800x448, 640x480, 640x360, 352x288
    Video Bit Rate 128Kbps-8192bps support self-adjustable as needed
    Image Settings Basic: Brightness,contrast,saturation,sharpness,mirror,flip
    Advanced: Anti-flicker,BLC,HLC,scene,exposure time,AGC,white balance
    WDR Digital WDR, >80db
    SNR ≥50db(AGC OFF)
    Noise Reduction 3D NR
    Character Overlay (OSD) Support channel name, date/time, bitrate, resolution, and 5-line character overlay.
    Audio
    Audio Input Support, built-in microphones
    Audio Output Support, built-in speaker
    Audio Compression G.711A/U
    Network
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Networking Protocol ONVIF,P2P,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP,DNS,GB28281
    APP IOS,Android
    PC Support
    Web Access Supports IE6.0 and above browsers, Free plug-in
    Event
    Alarm Human Detection, Motion Detection alarm
    Linkage Alarm triggering actions such as FTP upload, send message, audio alerts, email notifications, and light activation.
    Motion Detection Set detection area,can set multi-level sensitivity
    Privacy Mask 4 windows can be built to mask your private area
    Snapshot 704x576
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    On-Board Storage No
    Alarm No
    RS-485 No
    General
    Power Supply DC12V±10% /POE
    Power Consumption Max 6W
    Lightning Protection 6KV
    Housing Metal Dome
    Weather Proof N/A
    Working Temperature -10 °C to 50 °C
    Working Humidity 10%-95% (Non-condensing)
