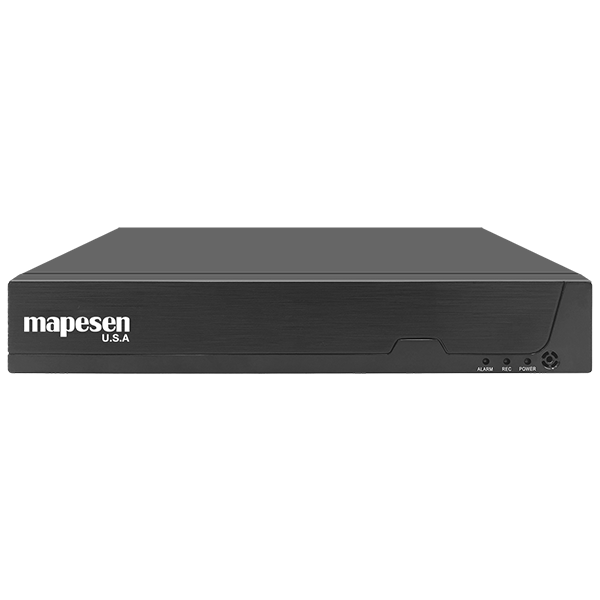

NVR-4K3116S-TY

16CH 4K TUYA Smart AI NVR Non POE

16CH 4K/8MP Ultra HD · H.265/H.264 decoding · 8CH Synchronous Playback · TUYA Smart Remote Control · 80Mbps High Bandwidth · Up To 10TB HDD · S.M.A.R.T Disk Protection · ONVIF & Cross-Segement · HDMI + VGA Dual Output · Wide Compatibility & Plug-and-Play · Stable & Reliable Performance
    Products
    · 16CH 4K/8MP ultra HD input, supports H.265/H.264 video decoding.
    · Embedded Linux system, stable and smooth operation.
    · 8-channel synchronous playback & multi-mode search.
    · TUYA smart APP remote monitoring for iOS & Android.
    · 80Mbps high incoming bandwidth for clear transmission.
    · Supports 1× SATA HDD up to 10TB for large storage.
    · S.M.A.R.T technology prevents data loss effectively.
    · ONVIF supported, easy to add cross-segment IP cameras.
    · Motion detection with adjustable sensitivity.
    · HDMI & VGA dual video output.
    · Dual USB 2.0 ports for data backup & mouse control.
    · Low power consumption, compact and durable design.
    Model NVR-4K3116S
    System
    Operating System Embedded LINUX
    Video & Audio
    Incoming Bandwidth 80Mbps
    IPC Input 16CH*4K/5MP/3MP/2MP/960P/720P
    IP Channel Resolution Main-Stream: up to 3840×2160Sub-Stream: D1/CIF
    Video Decoding H.265 /H.264
    Audio Decoding G.711,G.726
    Decoding Capability 4CH 1080P@25fps
    Recording & Playback
    Recording mode Timing recording or alarm recording
    Playback 8CH synchronous playback
    Playback Mode Search by time, calendar, event, channel
    Backup Mode USB device/USB mobile hard disk
    Other Function
    Two-Way Audio Between client and IPC
    Motion Detection Zones: 396(22*18), Sensitivity: 1~6 (level 6 is highest)
    Snap Mode JPEG
    S.M.A.R.T Technology Support skipping bad track of hard disk to reduce data loss
    Storage
    SATA 1*SATA HDD
    Capacity Up to 10 TB capacity for each HDD
    Network
    Network Protocols TCP/IP,DHCP,IPv4,DNS,DDNS,NTP,RTSP,SMTP, UPnP™,HTTP,etc.
    ONVIF Support “Cross-Segement Add” to add different netword segement ip camera
    APP iPhone, Android
    PC Support
    Interface
    Network Interface 1pcs RJ45 10M/100M self-adaptive Ethernet interface
    USB Interface 2pcs USB2.0 Interfaces
    Video Output VGA: 1CH,1920×1080,1280×720
    HDMI:1CH,1920×1080,1280×720, 1.4a
    Audio Output 1CH RCA(Linear,1KΩ)
    Alarm N/A
    General
    Installation Desktop Installation
    Power Supply DC12V/ 2A
    Consumption ≤ 7W(without HDD)
    Working Temperature -10℃- [$add]55℃
    Working Humidity 10%∼90%
    Dimensions 253x218x43mm
