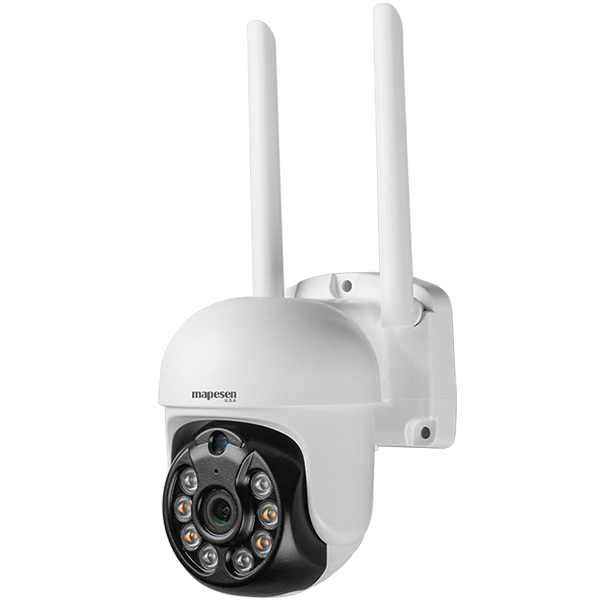

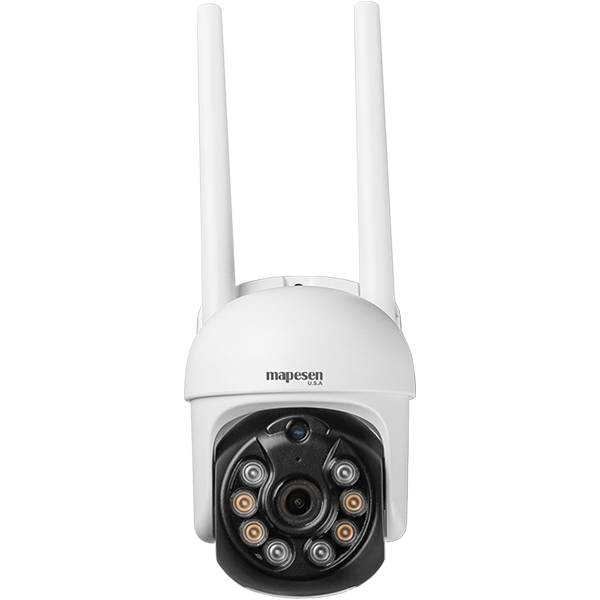

4MP Smart Tuya WiFi Ultra HD Mini PTZ Dome Home Security Camera
| Model | B105I400LFA2-WT |
| Camera | |
| Image Sensor | 1/2.7" color CMOS |
| Effective Pixels | 4.0MP |
| Synchronization | Internal |
| Code Format | H265 |
| Code Rate | Adaptive |
| Stream | Dual-stream |
| Frame Rate | Main code stream:2560*1440@25fps/30fps |
| Auxiliary stream:640x360@25fps | |
| Min. Illumination | 0.01LUX/F1.2 color,0.005LUX/F1.2 WITH IR ON (BW) |
| Day & Night Mode | Color/B&W/Intelligent model |
| Electronic Shutter | Auto |
| White Balance | Auto |
| AGC | Auto |
| WDR | Digital WDR |
| DNR | 3D DNR |
| IR Board | 4PCS Infrared warm LEDs and 4PCS white LEDs |
| IR Distance | IR distance 40 meters, IR distance 15 meters for warm LEDs |
| PT | |
| Horizontal Angle | 0-355° |
| Vertical Angle | 0-90° |
| Pan Speed | 0.1-30°/S |
| Tilt Speed | 0.1-30°/S |
| Lens | |
| Focal Length | 3.6mm |
| Lens Megapixel | 5 Megapixel fixed lens |
| Function | |
| Motion Detection | 4 windows motion detection areas can be set(sensitivity setting 1-100) |
| Privacy Shelter | 4 windows can be built to mask your private area |
| Human Detection | Support |
| Human Tracking | Support |
| Alarm Linkage | Sound alert/the mobile detection alarm is pushed to the APP |
| Email Alarm | Support |
| Mirror Image | Flip horizontal/vertical |
| Digital Zoom | Support |
| Audio | Built-in microphone and speaker, Support voice intercom |
| Storage | Built-in Micro SD card slot, Max 128G, timer capture |
| Cloud Storage | Support |
| Web Access | Support IE,Google,Firefox browser,Built-in web server to facilitate the user to use the standard IE browser to achieve the front end of the real-time browsingand setting management |
| NETWORK | |
| Network Interface | 1*RJ45 10M/100M Ethernet Port |
| WIFI | Support 2.4G and 5G dual-band wifi,wifi 802.11b/b/n |
| Bluetooth | Support Bluetooth fast network configuration |
| ONVIF | Support |
| AP | Support(It is only used to configure the network) |
| P2P | Support |
| Mobile Surveillance | iOS, Android (TUYA) |
| PC | Support |
| Interface | |
| Power | 1pc DC female head |
| Ethernet | No |
| Storage | 1pc Micro SD/TF card slot |
| Antenna | 1pc WIFI antenna and 1pc 4G antenna(Not detachable) |
| General | |
| Power Supply | DC12V2A |
| Power Consumption | Max 5.5W |
| Language Support | ENG |
| Housing | Outdoor half-metal dome (Front cover metal) |
| Weather Proof | IP66 |
| Lightning Protection | 6KV |
| Working Temperature | -30 °C to [$add]60 °C |
| Working Humidity | 10%-90% RH (Non-condensing) |
| Model | B105I600LFA2-WT |
| Camera | |
| Image Sensor | 1/3" color CMOS |
| Effective Pixels | 6.0MP |
| Synchronization | Internal |
| Code Format | H.265/H.264 |
| Code Rate | 128Kbps~8192Kbps adjustable |
| Stream | Dual-stream |
| Frame Rate | Main code stream:6MP(3200x1800)@20fps,5MP(2560x1920)@25fps,4MP(2560x1440)@25fps |
| Auxiliary stream:704x576/640x480/640x360/352x288@25fps | |
| Min. Illumination | 0.01LUX/F1.2 color,0.005LUX/F1.2 WITH IR ON (BW) |
| Day & Night Mode | Color/B&W/Intelligent model |
| Electronic Shutter | Auto |
| White Balance | Auto |
| AGC | Auto |
| WDR | Digital WDR |
| DNR | 3D DNR |
| IR Board | 4PCS Infrared warm LEDs and 4PCS white LEDs |
| IR Distance | IR distance 40 meters, IR distance 15 meters for warm LEDs |
| PT | |
| Horizontal Angle | 0-355° |
| Vertical Angle | 0-90° |
| Pan Speed | 0.1-30°/S |
| Tilt Speed | 0.1-30°/S |
| Lens | |
| Focal Length | 3.6mm |
| Lens Megapixel | 6 Megapixel fixed lens |
| Function | |
| Motion Detection | 4 windows motion detection areas can be set(sensitivity setting 1-100) |
| Privacy Shelter | 4 windows can be built to mask your private area |
| Human Detection | Support |
| Human Tracking | Support |
| Alarm Linkage | Sound alert/the mobile detection alarm is pushed to the APP |
| Email Alarm | Support |
| Mirror Image | Flip horizontal/vertical |
| Digital Zoom | Support |
| Audio | Built-in microphone and speaker, Support voice intercom |
| Storage | Built-in Micro SD card slot, Max 128G, timer capture |
| Cloud Storage | Support |
| Web Access | Support IE,Google,Firefox browser,Built-in web server to facilitate the user to use the standard IE browser to achieve the front end of the real-time browsingand setting management |
| NETWORK | |
| Network Interface | 1*RJ45 10M/100M Ethernet Port |
| Networking Protocol | TCP/IP,UDP/IP,http,ICMP,SMTP,DHCP,NTP,DDNS,UPnP |
| WIFI | Support 2.4G and 5G dual-band wifi,wifi 802.11b/b/n |
| Bluetooth | Support Bluetooth fast network configuration |
| ONVIF | Support |
| AP | Support(It is only used to configure the network) |
| P2P | Support |
| Mobile Surveillance | iOS, Android (TUYA) |
| PC | Support |
| Interface | |
| Power | 1pc DC female head |
| Ethernet | No |
| Storage | 1pc Micro SD/TF card slot |
| Reset | Support |
| Antenna | 1pc WIFI antenna and 1pc 4G antenna(Not detachable) |
| General | |
| Power Supply | DC12V2A |
| Power Consumption | Max 8W |
| Language Support | ENG |
| Housing | Outdoor half-metal dome (Front cover metal) |
| Weather Proof | IP66 |
| Lightning Protection | 6KV |
| Working Temperature | -30 °C to [$add]60 °C |
| Working Humidity | 10%-90% RH (Non-condensing) |
