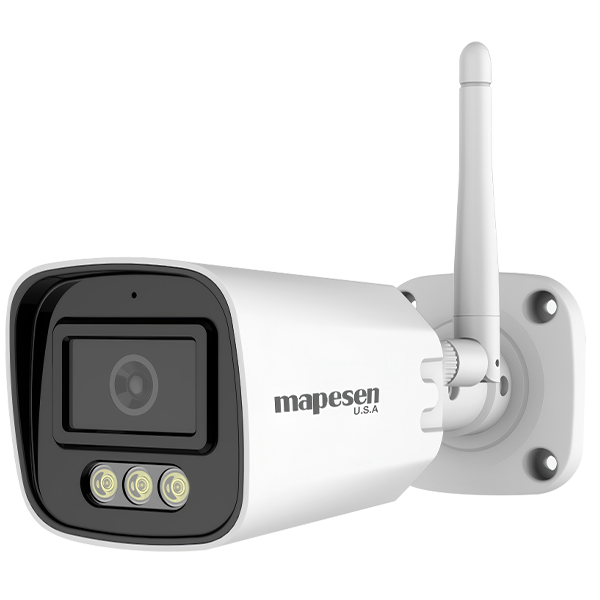

L2KT401LFA2-WT｜L2KT601LFA2-WT

4MP/6MP Ultra HD Tuya Smart WiFi Bullet Security Camera

Tuya WiFi · Dual Band 2.4G+5G · H.265 · 0.5T AI Human Detection · Hybrid Night Vision · IR 40m/Color 30m · Two-Way Audio · 128GB TF Card · Motion Detection · Tuya APP Remote Control
    Products
    · 4MP/6MP Ultra HD Tuya Smart WiFi Dome Camera.
    · Dual-Band 2.4G+5G Stable WiFi Connection.
    · Advanced H.265 High-Efficiency Video Coding.
    · 0.5T Computing Power for Precise Human Detection.
    · Hybrid Light: IR 40m, Full Color 30m Light Night Vision.
    · 3.6mm High-Definition 5MP Lens.
    · Built-In Microphone & Speaker for Two-Way Audio.
    · Digital WDR & 2D/3D Noise Reduction for Clear Images.
    · Support Max 128GB TF Card Local Storage.
    · Motion Detection & Privacy Mask Supported.
    · Reliable 6KV Lightning Protection Design.
    · Tuya APP Remote Monitoring & Control.
    Model Number L2KT401LFA2-WT
    Camera
    Image Sensor 1/3" low illumination CMOS sensor
    Computing Power 0.5T computing power, enhanced human detection & framing
    Min. Illumination Color: 0.05 Lux @F1.6,B/W: 0.005 [email protected]
    Shutter Time Auto(1/25 - 1/100000)
    Lens
    Lens Type [email protected] Fixed Lens
    Lens Resolution 5MP
    Illuminator
    Light Distance Warm Light 30m,IR Light 40m
    IR LEDs 3pcs Hybrid Light LEDs
    Day & Night Mode Hybrid Light Mode/ Infrared Mode/Full Color Mode
    Video
    Max. Image Resolution 4MP(2560*1440)@25fps
    Video Compression H.265/H.264
    Frame Rate Main stream: 4MP(2560x1440) @25fps,3MP(2304x1296) @25fps,2MP(1920x1080) @25fps, 720P(1280x720) @25fpsSub-stream: 704x576, 800x448, 640x480, 640x360, 352x288
    Video Bit Rate 128Kbps-8192bps support self-adjustable as needed
    Image Settings Basic: Brightness,contrast,saturation,sharpness,mirror,flip
    Advanced: Anti-flicker,BLC,HLC,scene,exposure time,AGC,white balance
    WDR Digital WDR, >80db
    SNR ≥50db(AGC OFF)
    Noise Reduction 2D/3D NR
    Character Overlay (OSD) Support channel name, date/time, bitrate, resolution, and 4-line character overlay.
    Audio
    Audio Input Support, built-in microphones
    Audio Output Support, built-in speaker
    Audio Compression G.711A/U
    Network
    Network Connection WiFi
    Wireless Frequency Band Dual-band 2.4G & 5G Wi-Fi 802.11b/g/n
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port (optional)
    Networking Protocol ONVIF,P2P,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP,DNS,GB28281
    APP IOS,Android
    Web Access Supports IE6.0 and above browsers, Free plug-in
    Event
    Alarm Human Detection, Motion Detection alarm
    Linkage Alarm triggering actions such as FTP upload, send message, audio alerts, email notifications, and light activation.
    Motion Detection 4 windows motion detection areas can be setting (Low/Mid/High)
    Privacy Mask 4 windows can be built to mask your private area
    Snapshot 704x576
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port (optional)
    On-Board Storage Max support 128GB TF card, timing video storage, motion detection video storage
    Alarm No
    RS-485 No
    General
    Power Supply DC12V±10%
    Power Consumption Max 6W
    Reset Support
    Lightning Protection 6KV
    Housing Metal Bullet
    Weather Proof IP67
    Working Temperature -10 °C to 50 °C
    Working Humidity 10%-95% (Non-condensing)
    Model Number L2KT601LFA2-WT
    Camera
    Image Sensor 1/3" low illumination CMOS sensor
    Computing Power 0.5T computing power, enhanced human detection & framing
    Min. Illumination Color: 0.05 Lux @ F1.6, B/W: 0.005 [email protected]
    Shutter Time Auto(1/25 - 1/100000)
    Lens
    Lens Type [email protected] Fixed Lens
    Lens Resolution 6MP
    Illuminator
    Light Distance Warm Light 30m,IR Light 40m
    IR LEDs 3pcs Hybrid Light LEDs
    Day & Night Mode Hybrid Light Mode/ Infrared Mode/Full Color Mode
    Video
    Max. Image Resolution 6MP(3200*1800)@20fps
    Video Compression H.265/H.264
    Frame Rate Main stream: 6MP(3200*1800)@20fps 5MP(2880x1664)@25fps,4MP(2560x1440) @25fps,3MP(2304x1296) @25fps,2MP(1920x1080) @25fps, 720P(1280x720) @25fpsSub-stream: 704x576, 640x480, 640x360, 352x288
    Video Bit Rate 128Kbps-8192bps support self-adjustable as needed
    Image Settings Basic: Brightness,contrast,saturation,sharpness,mirror,flip
    Advanced: Anti-flicker,BLC,HLC,scene,exposure time,AGC,white balance
    WDR Digital WDR, >80db
    SNR ≥50db(AGC OFF)
    Noise Reduction 2D/3D NR
    Character Overlay (OSD) Support channel name, date/time, bitrate, resolution, and 4-line character overlay.
    Audio
    Audio Input Support, built-in microphones
    Audio Output Support, built-in speaker
    Audio Compression G.711A/U
    Network
    Network Connection WiFi
    Wireless Frequency Band Dual-band 2.4G & 5G Wi-Fi 802.11b/g/n
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port (optional)
    Networking Protocol ONVIF,P2P,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP,DNS,GB28281
    APP IOS,Android
    Web Access Supports IE6.0 and above browsers, Free plug-in
    Event
    Alarm Human Detection, Motion Detection alarm
    Linkage Alarm triggering actions such as FTP upload, send message, audio alerts, email notifications, and light activation.
    Motion Detection 4 windows motion detection areas can be setting (Low/Mid/High)
    Privacy Mask 4 windows can be built to mask your private area
    Snapshot 704x576
    Interface
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port (optional)
    On-Board Storage Max support 128GB TF card, timing video storage, motion detection video storage
    Alarm No
    RS-485 No
    General
    Power Supply DC12V±10%
    Power Consumption Max 6W
    Reset Support
    Lightning Protection 6KV
    Housing Metal Bullet
    Weather Proof IP67
    Working Temperature -10 °C to 50 °C
    Working Humidity 10%-95% (Non-condensing)
