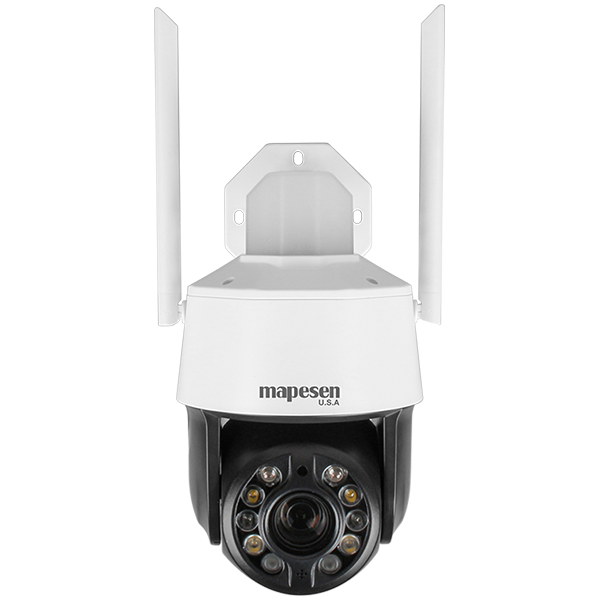

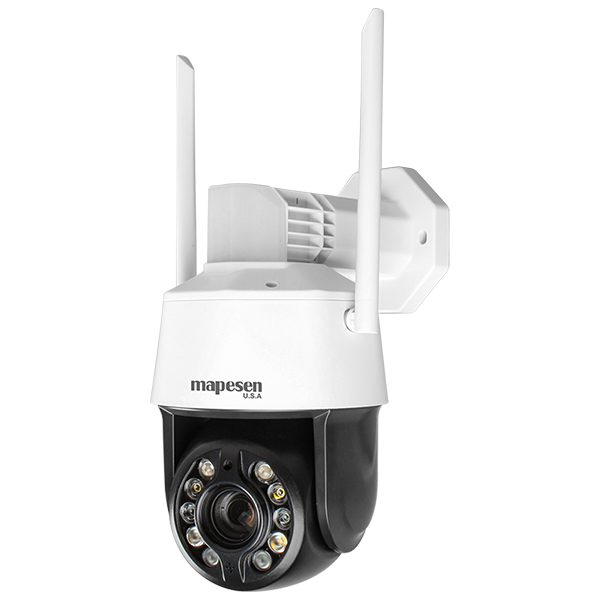

5MP 20X Smart Tuya WiFi Ultra HD Outdoor PTZ Dome Security Camera
| Model | TUYA-1005-WIFI-20X |
| Camera | |
| Image Sensor | 1/2.8" SONY Color CMOS |
| Effective Pixels | 5.0MP(2592x1944@20fps) |
| Synchronization | Internal |
| Code Format | H.265/H.264 |
| Code Rate | Adaptive |
| Stream | Dual-stream |
| Frame Rate | Main code stream:2592*1944@20fpss |
| Auxiliary stream:640x360@25fps | |
| Min.Illumination | [email protected](Color),[email protected](B/W), 0Lux (IR ON) |
| Day & Night Mode | Color/B&W/Intelligent model |
| IR Board | 4PCS Infrared LEDs[$add]4PCS white LEDs[$add]2PCS Laser LEDs |
| IR Distance | IR distance 100m, Full Color distance 50m |
| Electronic Shutter | Auto |
| White Balance | Auto |
| AGC | Auto |
| WDR | WDR |
| DNR | 3D DNR |
| PTZ | |
| Horizontal Angle | 360° |
| Vertical Angle | 0-90° |
| Pan Speed | 40°/S (speed adjustable at production) |
| Tilt Speed | 40°/S (speed adjustable at production) |
| Power-off Memory | Support |
| Guard Position | Support guard position setup, scheduled return to preset |
| Preset Point | Support max 254PCS |
| Cruise | Support Preset Point Cruise(scan) mode |
| Lens | |
| Optical Zoom | 20X |
| Focal Length | 5.3±5%~96±5%mm |
| Audio | |
| Two-way Audio | Built-in microphone and speaker, Support voice intercom |
| Function | |
| Motion Detection | Support |
| Human Detection | Support |
| Human Tracking | Support |
| Alarm Linkage | Support AI human detection linkage with the voice broadcast and strobe light |
| Alarm Push | The mobile detection alarm is pushed to the APP,SMTP and FTP alarm upload |
| Storage | Support max 128G TF card |
| Cloud Storage | Support |
| Recording Mode | Manual recording, alarm recording |
| Playback | Support remote video playback |
| NETWORK | |
| Netowrk Protocol | TCP/IP,HTTP,NTP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P |
| WIFI | 2.4G,IEEE802.11b/g/n protocol,support WEP,WPA,WPA2 encryption |
| ONVIF | ONVIF2.4 |
| AP | Support(It is only used to configure the network) |
| P2P | Support |
| Mobile Surveillance | iOS, Android (TUYA) |
| PC | NO |
| Interface | |
| Power | 1pc DC female head |
| Storage | 1pc Micro SD/TF card slot |
| Antenna | 2pcs antennas |
| Wired | 10/100M RJ45 network port |
| General | |
| Reset | Support |
| Power Supply | DC12V2A |
| Power Consumption | Max 5.5W |
| Language Support | ENG |
| Housing | Metal and Plastic |
| Weather Proof | IP66 |
| Lightning Protection | 6KV |
| Working Temperature | -30 °C to [$add]60 °C |
| Working Humidity | 0%-90% RH (Non-condensing) |
