H.265 2.0MP/5.0MP Home Security POE IP Camera Kit

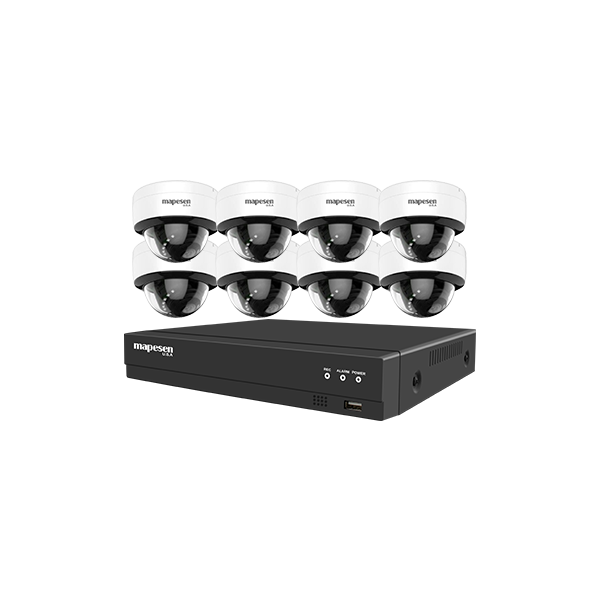

8CH Home Security POE NVR Kit
· All Cameras with 1080P/5MP preview
· AI humanoid detection and tracking, motion detection
· H.264/H.265 compression format
· POE,ONVIF
· Support HDMI/VGA video output
· 1PC 8CH POE NVR
· 8PCS IR Metal Dome Camera
· 8PCS 15m Network Cable
· 1PC 52V 2.3A Power Adaptor
|
4CH POE NVR |
||
|
Operating System |
Embedded LINUX |
|
|
Preview |
1/4/8/9 screen |
|
|
Video & Audio |
||
|
Encoding Format |
H.265 / H.264 |
|
|
Video Input |
Max 9CH 5MP IP Network Cameras |
|
|
Audio Compression |
G.711A |
|
|
Audio Input |
IPC composite stream network audio input |
|
|
Smart Analysis |
|
|
|
With Smart IPC Support |
Humanoid detection |
|
|
Record & Playback |
||
|
Record Mode |
Manual>Alarm>Motion detection>Timing |
|
|
Video Resolution |
Max 1080P |
|
|
Local Playback |
Support adaptive stream preview and playback: 4 screens 720P, single screen 1080P |
|
|
Search Mode |
Search by time, calendar, event, channel |
|
|
Storage & backup |
||
|
Video Storage |
HDD, Network |
|
|
Backup Mode |
Network, USB hard disk, USB burner, SATA burner |
|
|
Network |
||
|
Network Protocol |
DDNS,EMAIL,UPNP,NTP,DHCP,IP Filter,PPPoE,P2P |
|
|
POE standard |
IEEE802.3af |
|
|
APP |
Supports iPhone, Android; |
|
|
PC |
support |
|
|
External Interface |
|
|
|
HDMI Output |
1CH HDMI can output audio at the same time(Max 1080P) |
|
|
VGA Output |
1CH (Max 1080P) |
|
|
Audio I/O |
0/0 |
|
|
Network Interface |
1xRJ45 10M/100M self-adaption |
|
|
POE interface |
8xRJ45 10M/100M adaptive Ethernet port |
|
|
USB |
2* USB ports |
|
|
HDD |
1*SATA ports (Max 8TB/per) |
|
|
General |
||
|
Power Supply |
52V 2.3A |
|
|
Power Consumption |
POE power consumption≤120W; NVR motherboard function≤10W (without HDD) |
|
|
Working Environment |
-10℃- [$add]55℃ |
|
|
Working Humidity |
10%—90%, Atm:86kpa—106kpa |
|
|
Camera |
Metal Dome*8PCS |
|
|
Image Sensor |
1/3’’ CMOS Image Sensor |
|
|
Max. Image Resolution |
2MP: 1920(H) × 1080(V) |
|
|
Frame Rate |
First bit stream:1920*1080@25FPS Second sub bit stream:704*576,640*480 |
|
|
Video Compression |
H265/H264 |
|
|
Video Bit Rate |
160Kbps-4Mbps continuously adjustable, support CBR / VBR |
|
|
Image Settings |
Brightness,Contrast,Saturation,Exposure,Upside Down,Mirror Adjustable |
|
|
Audio Compression |
G.711 |
|
|
Audio Bit Rate |
64Kbps |
|
|
IR Board |
15pcs IR LEDs |
|
|
IR Distance |
20-25m |
|
|
Lens |
3.6mm/2.0MP |
|
|
Min. Illumination |
Color: 0.01Lux @F1.2, B/W: 0Lux with IR on |
|
|
WDR |
Digital WDR |
|
|
Electronic Shutter |
Auto(1/5 - 1/100000) |
|
|
White Balance |
Auto |
|
|
AGC |
Auto |
|
|
BLC |
Auto |
|
|
DNR |
3D DNR |
|
|
Human detection |
It can detect target ≤ 5 persons at the same time Humanoid pixel ≥ 40X40 Support specified area detection, default full screen Error detection rate 2% or less Maximum detection frame rate is 5Fps /s |
|
|
Network Interface |
1xRJ45 10M/100M Ethernet Port |
|
|
Networking Protocol |
TCP/IP, DHCP, HTTP, HTTPS NTP, DNS, RTP RTSP |
|
|
ONVIF |
Support |
|
|
Power Supply |
DC 12V/POE |
|
|
POE standard |
IEEE802.3af |
|
|
Weather Proof |
IP65 |
|
|
Lightning protection |
Support |
|
|
Power Consumption |
Max 5W |
|
|
Working Humidity |
10%-95% RH(Non-condensing) |
|
|
Working Temperature |
-10°C to [$add]60°C |
|
|
Package |
||
|
8CH POE NVR *1PC |
||
|
2.0MP IR Metal Dome POE IP Camera * 8PCS |
||
|
52V 2.3A Power Adaptor * 1PC |
||
|
15M Network Cable * 8PCS |
||
|
4CH POE NVR |
|||
|
Operating System |
Embedded LINUX |
||
|
Preview |
1/4 /8/9 screen |
||
|
Video & Audio |
|||
|
Encoding Format |
H.265 / H.264 |
||
|
Video Input |
Max 9CH 5MP IP Network Cameras |
||
|
Audio Compression |
G.711A |
||
|
Audio Input |
IPC composite stream network audio input |
||
|
Smart Analysis |
|
||
|
With Smart IPC Support |
Humanoid detection |
||
|
Record & Playback |
|||
|
Record Mode |
Manual>Alarm>Motion detection>Timing |
||
|
Video Resolution |
Max 5MP |
||
|
Local Playback |
Support adaptive stream preview and playback: 4 screens 720P, single screen 5MP |
||
|
Search Mode |
Search by time, calendar, event, channel |
||
|
Storage & backup |
|||
|
Video Storage |
HDD, Network |
||
|
Backup Mode |
Network, USB hard disk, USB burner, SATA burner |
||
|
Network |
|||
|
Network Protocol |
DDNS,EMAIL,UPNP,NTP,DHCP,IP Filter,PPPoE,P2P |
||
|
POE Standard |
IEEE802.3af |
||
|
APP |
Supports iPhone, Android; |
||
|
PC |
support |
||
|
External Interface |
|
||
|
HDMI Output |
1CH, HDMI can output audio at the same time |
|
|
|
VGA Output |
1CH |
|
|
|
Audio I/O |
0/0 |
|
|
|
Network Interface |
1xRJ45 10M/100M self-adaption |
|
|
|
POE Interface |
8xRJ45 10M/100M adaptive Ethernet port |
|
|
|
PTZ Control |
Support kinds of PTZ protocols |
|
|
|
USB |
2* USB ports |
|
|
|
HDD |
1*SATA ports (Max 8TB/per) |
|
|
|
General |
|||
|
Power Supply |
52V 2.3A |
||
|
Power Consumption |
POE power consumption≤78W; NVR motherboard function≤10W (without HDD) |
||
|
Working Environment |
-10℃- [$add]55℃ |
||
|
Working Humidity |
10%—90%, Atm:86kpa—106kpa |
||
|
Camera |
Metal Dome*8PCS |
||
|
Image Sensor |
1/3’’ CMOS Image Sensor |
||
|
Max. Image Resolution |
5MP(2592*1904)@20fps; |
||
|
Frame Rate |
First bit stream:2592*1904@20FPS;4MP/1080P@25fps; Second sub bit stream:704*576,640*480@25fps |
||
|
Video Compression |
H265/H264 |
||
|
Video Bit Rate |
160Kbps-8Mbps continuously adjustable, support CBR / VBR |
||
|
Image Settings |
Brightness,Contrast,Saturation,Exposure,Upside Down,Mirror Adjustable |
||
|
Audio Compression |
G.711 |
||
|
Audio Bit Rate |
64Kbps |
||
|
IR LEDs |
15pcs IR LEDs |
||
|
IR Distance |
20-25m |
||
|
Lens |
3.6mm/5.0MP |
||
|
Min. Illumination |
Color: 0.01Lux @F1.2, B/W: 0Lux with IR on |
||
|
WDR |
Digital WDR |
||
|
Electronic Shutter |
Auto(1/5 - 1/100000) |
||
|
White Balance |
Auto |
||
|
AGC |
Auto |
||
|
BLC |
Auto |
||
|
DNR |
3D DNR |
||
|
Human Detection |
It can detect target ≤ 5 persons at the same time Humanoid pixel ≥ 40X40 Support specified area detection, default full screen Error detection rate 2% or less Maximum detection frame rate is 5Fps /s |
||
|
Network Interface |
1xRJ45 10M/100M Ethernet Port |
||
|
Networking Protocol |
TCP/IP, DHCP, HTTP, HTTPS NTP, DNS, RTP RTSP |
||
|
ONVIF |
Support |
||
|
Power Supply |
DC 12V/POE |
||
|
POE Standard |
IEEE802.3af |
||
|
Weather Proof |
IP65 |
||
|
Lightning Protection |
Support |
||
|
Power Consumption |
Max 5W |
||
|
Working Humidity |
10%-95% RH(Non-condensing) |
||
|
Working Temperature |
-10°C to [$add]60°C |
||
|
Package |
|||
|
8CH POE NVR *1PC |
|||
|
5.0MP IR Metal Dome POE IP Camera * 4PCS |
|||
|
52V 2.3A Power Adaptor * 1PC |
|||
|
15M Network Cable * 8PCS |
|||
